E84AYCER communication manual (PROFINET)
Installation
Electrical installation
Colour code of the Ethernet cable

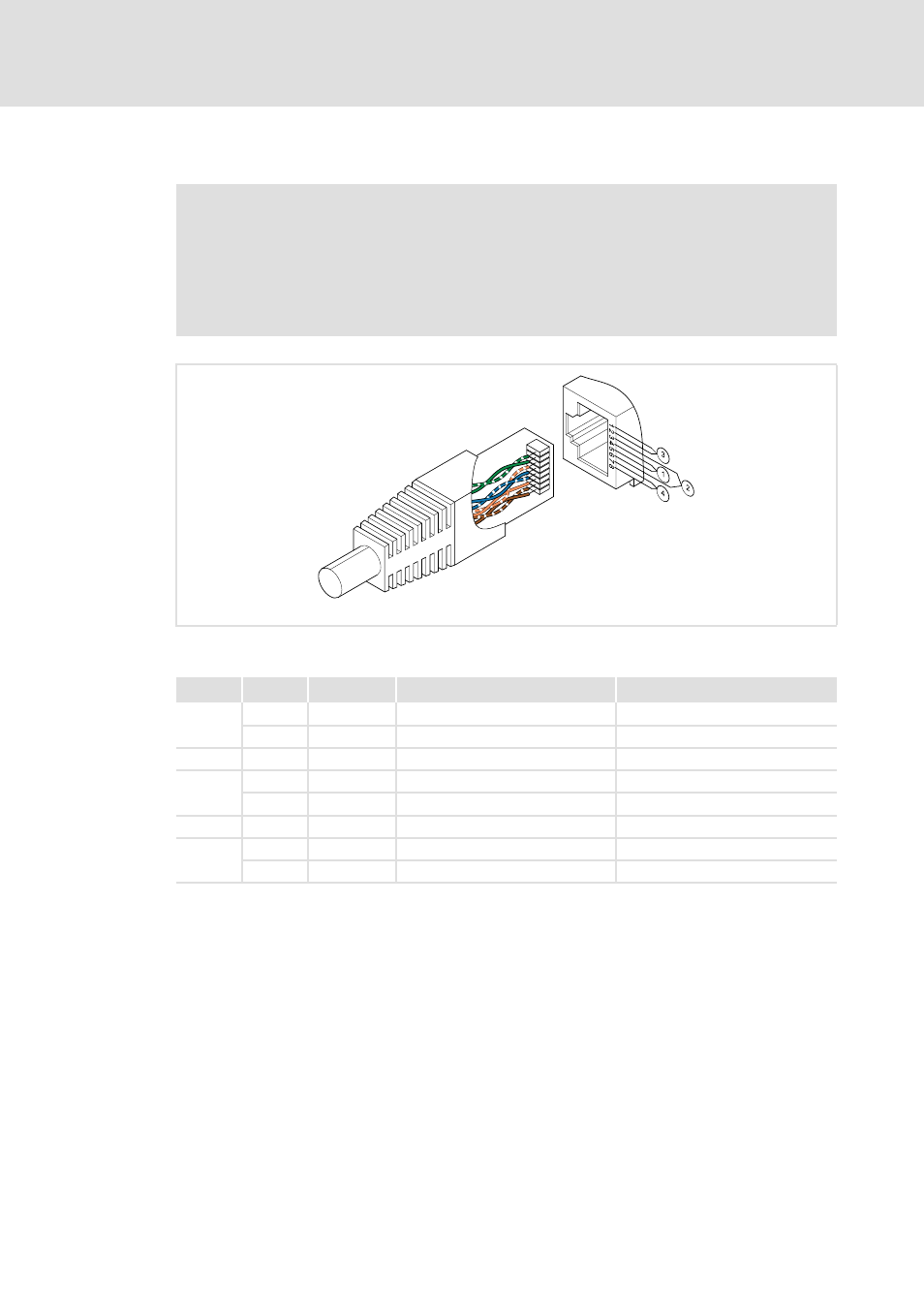

[5-10] Ethernet connector in accordance with EIA/TIA 568A/568B

Note!
The wiring and colour code are standardised in EIA/TIA 568A/568B.
According to the industrial standard, the use of 4-pin Ethernet cables is
permissible. The cable type only connects the assigned pins 1, 2, 3 and 6 to one
another.
E94YCEI004A
Pair Pin Signal EIA/TIA 568A EIA/TIA 568B
3 1 Tx + White / green White / orange
2 Tx - Green Orange
2 3 Rx + White / orange White / green
1 4 Blue Blue
5 White / blue Blue / white
2 6 Rx - Orange Green
4 7 White / brown White / brown
8 Brown Brown
