EDS84AYCER EN 2.0 - 11/2010
L
15
E84AYCER communication manual (PROFINET)
Product description
Properties
3.3
Properties
Interface module for the PROFINET communication system to be secured to the
expansion slots of the Inverter Drives 8400
The communication module can either be supplied internally by the standard device or
externally by a separate voltage source.
Support of the I&M0...4 functionality for the identification of the standard device
Automatic detection of the baud rate 100 Mbps
A line topology is enabled by the integrated 2-port switch.
Support of the LLDP protocol for the topology recognition
Support of the SNMP protocol for diagnostic purposes
Access to all Lenze parameters
3.4
Terminals and interfaces
2 RJ45 sockets for the PROFINET connection
2-pole plug connector for the external voltage supply of the communication module.
Front LEDs for diagnosing the ...
– Voltage supply of the communication module;
– Connection to the standard device;
– PROFINET connection;
– PROFINET activity.

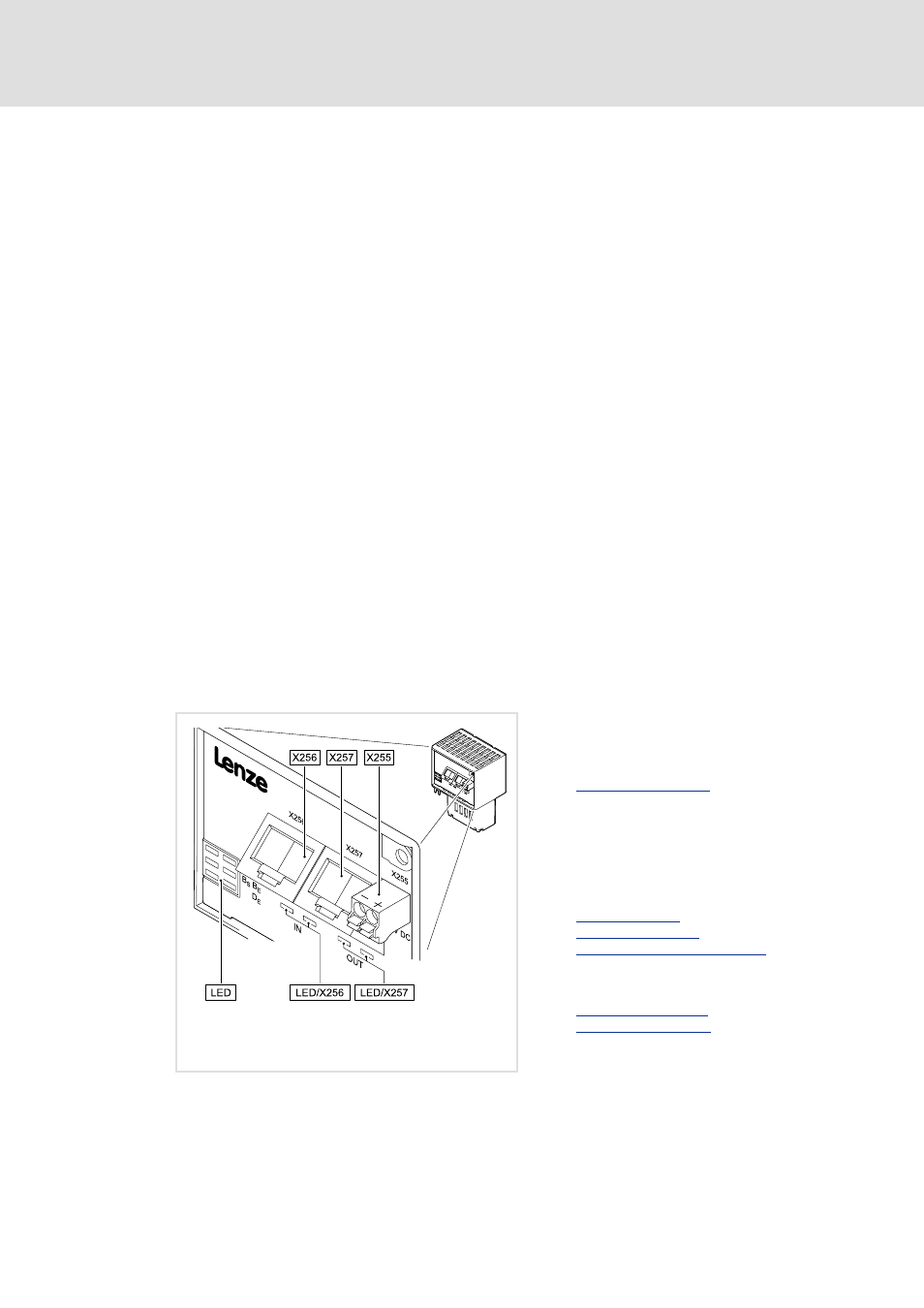

[3-2]
E84AYCER communication module (PROFINET)
E84YCER001C
X255 External voltage supply of the communication
module
• 2-pole plug connector with spring
connection
External voltage supply ( 32)
X256 PROFINET input (IN)
X257 PROFINET output (OUT)
• RJ45 sockets
• Each with 2 LED status displays for
diagnostics
Status displays at X256 and X257 ( 69)
MS
ME
BS
BE
DE
5 LED status displays for diagnostics
