E84AYCER communication manual (PROFINET)

Installation

Mechanical installation

5.1.3

Replacing the communication module

[5-3]

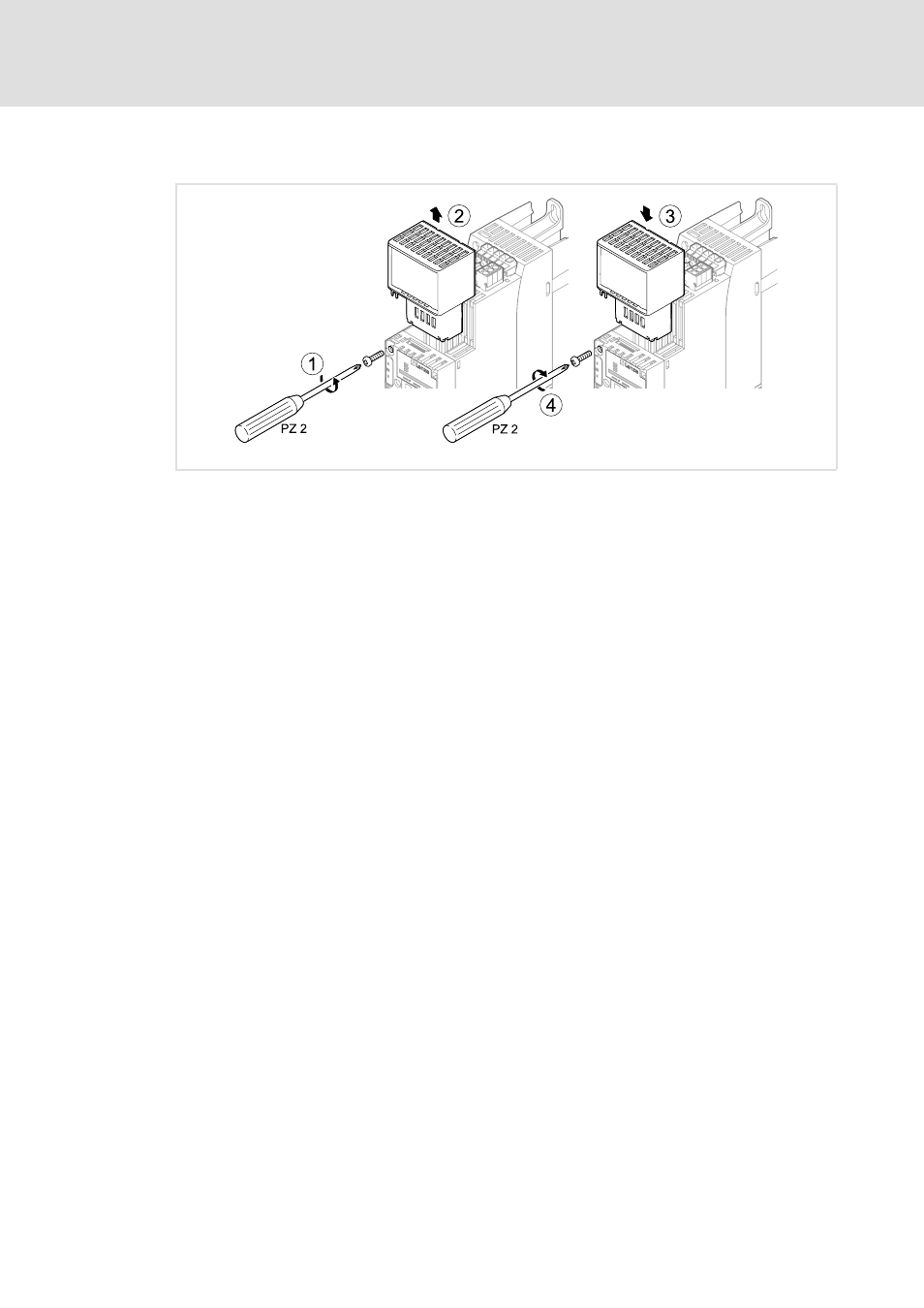

Replacing the communication module

Mounting steps

1. Loosen the securing screw for the communication module on the standard device (1).
2. Unplug the communication module from the MCI slot of the standard device (2).
3. Insert the new communication module into the MCI slot of the standard device (3).
4. Tighten the securing screw again (4).

E84YCPM002B
