E84AYCER communication manual (PROFINET)

Installation

Mechanical installation

24

L

EDS84AYCER EN 2.0 - 11/2010

5.1.2

Mounting for standard devices from 0.55 kW

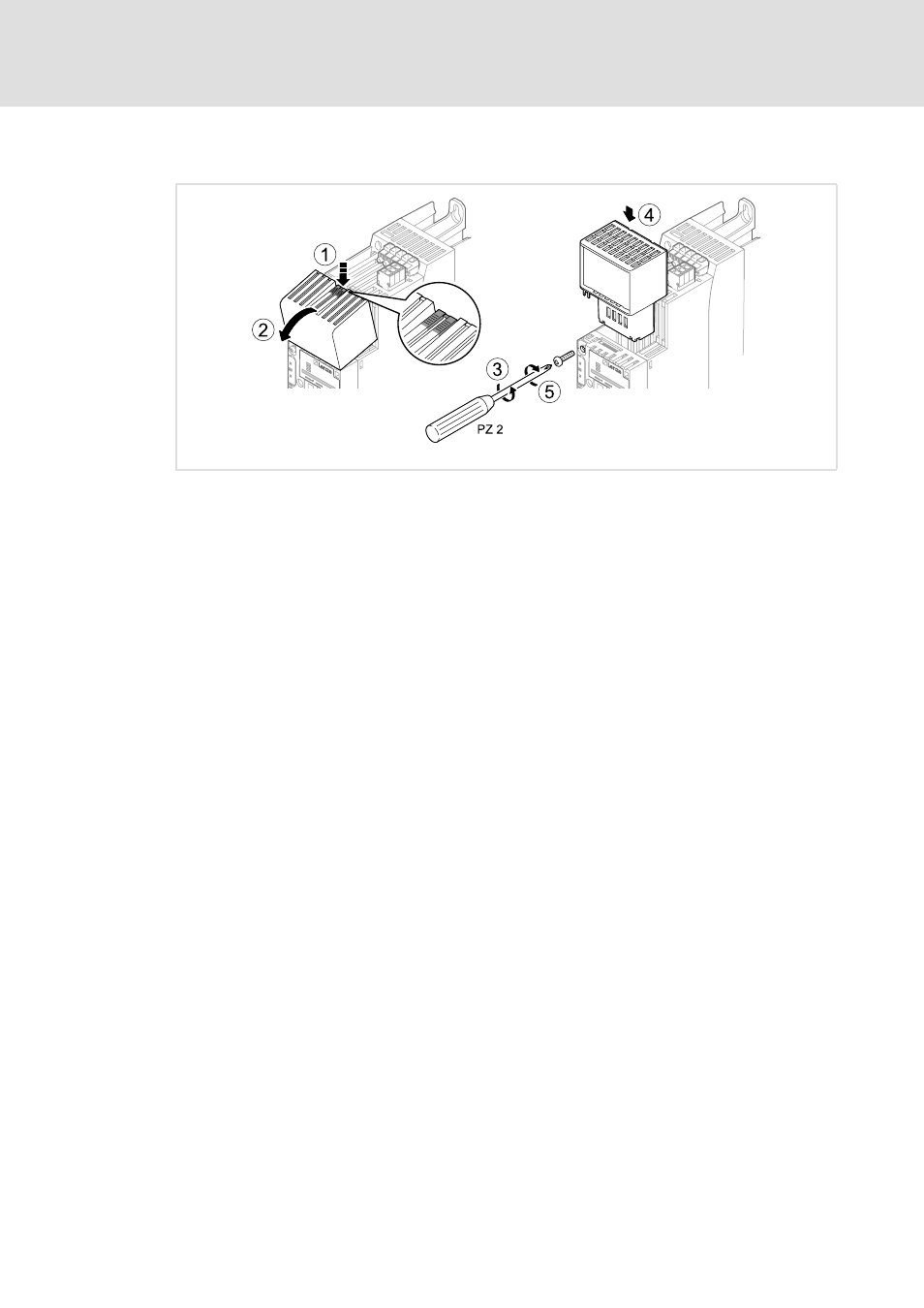

[5-2]

Mounting for standard devices from 0.55 kW

Mounting steps

1. Apply a little pressure on the surface of the top side of the standard device MCI slot

cover to leave an indentation (1).

2. Tilt the cover forwards and remove it from the standard device (2).
3. Loosen the securing screw for the communication module on the standard device (3).
4. Insert the communication module into the MCI slot of the standard device (4).
5. Tighten the securing screw again (5).

E84YCPM002A
