Lenze E84AYCER User Manual
Page 44
E84AYCER communication manual (PROFINET)
Process data transfer
Configuring the port interconnection of the process data objects (PDO) freely
44
L
EDS84AYCER EN 2.0 - 11/2010
8.3
Configuring the port interconnection of the process data objects (PDO) freely

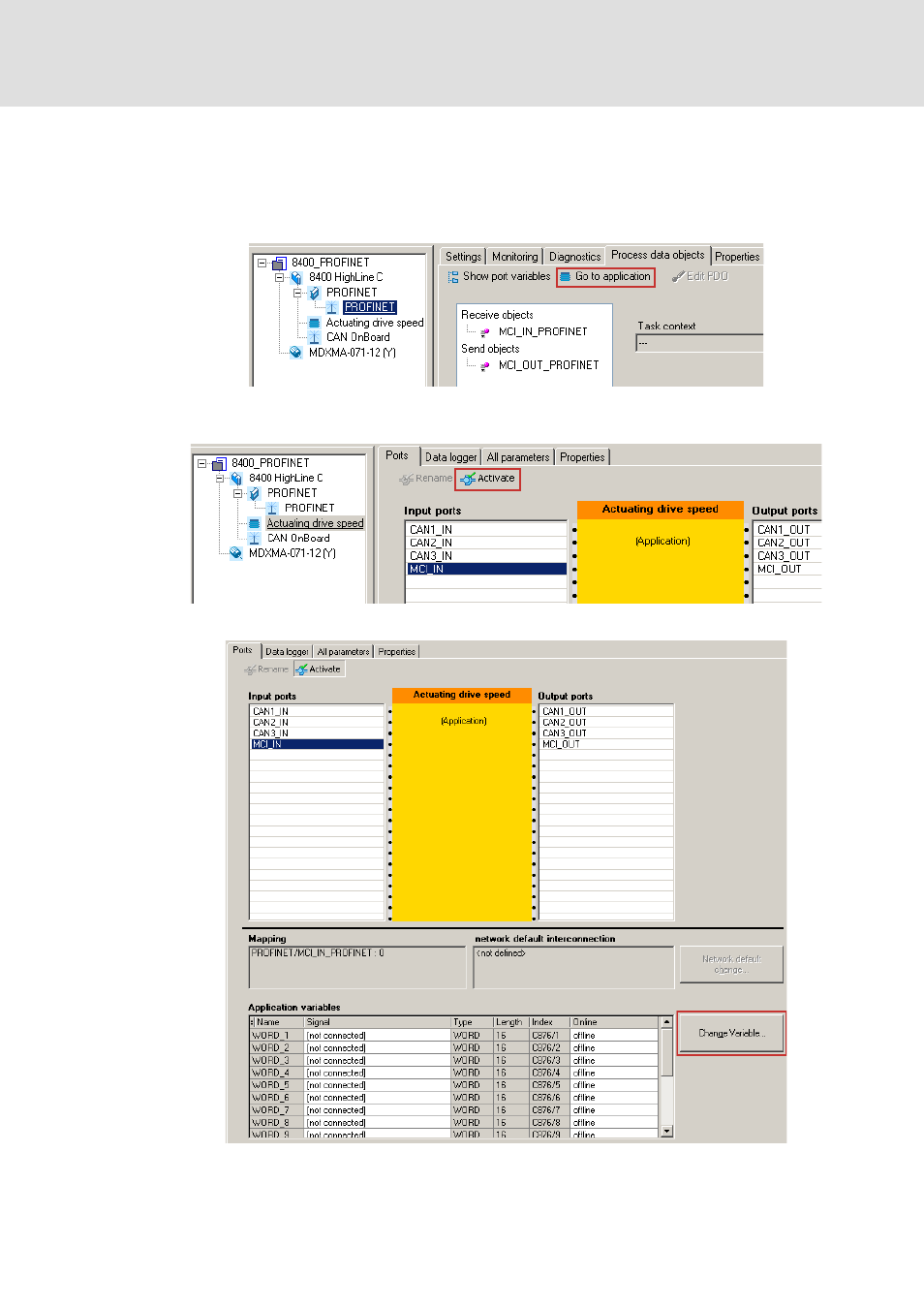

How to freely configure the port interconnection in the »Engineer«:
1. Go to the Process data objects tab and click Go to application.
2. Go to the Ports tab, select the port blocks "MCI_IN" or "MCI_OUT" and click Activate
to activate them.
3. Click the Change variable ... button.
