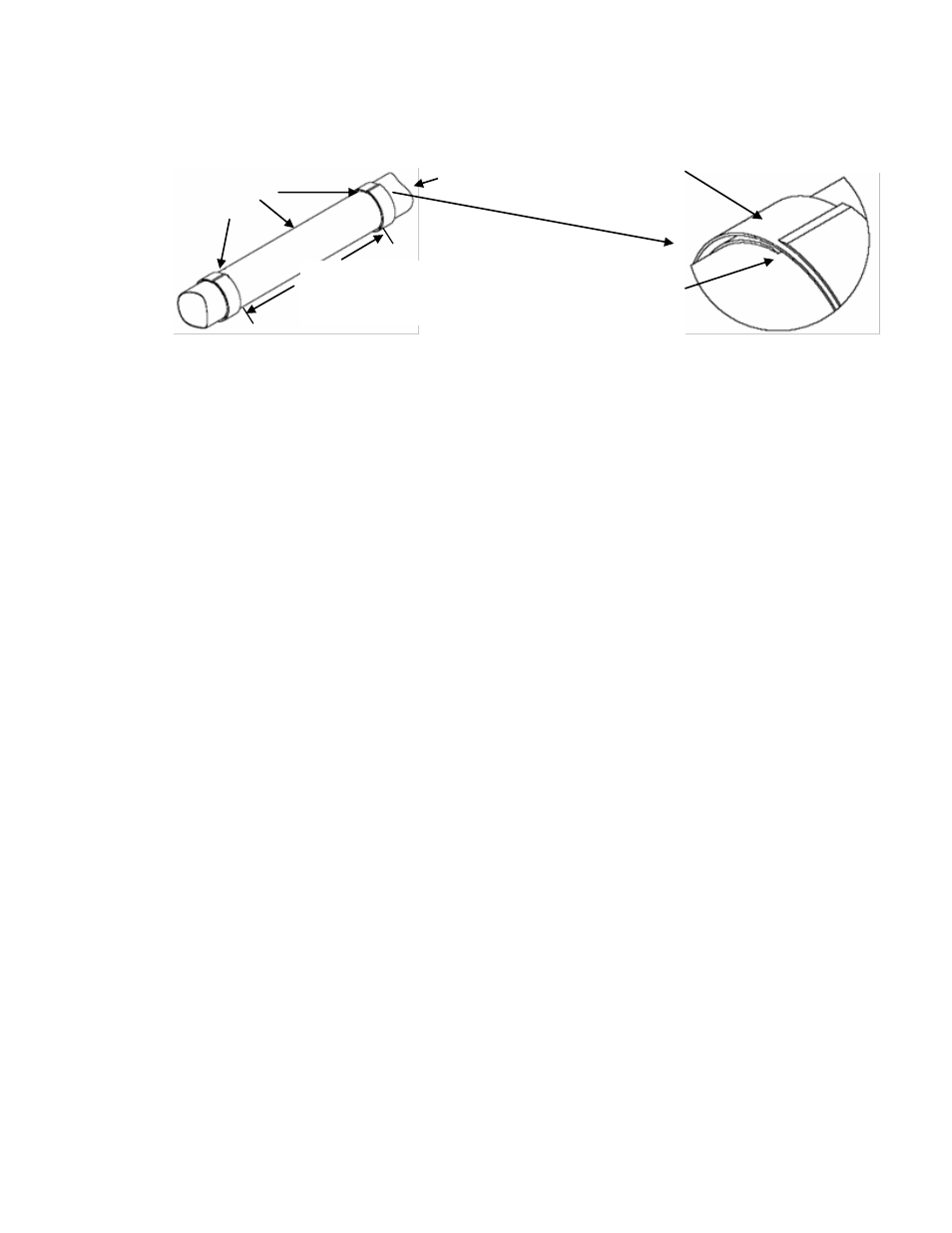

Figure 48 Elastomer Strip Installation on Tubes
Process
tube
Seams (may or
may not align
Wrap elastomer strip around pipe; apply
Teflon sealant to ends
Clean areas for
elastomer strips
and sensor
Distance between
elastomer strips
(cover end seals)
