Brocade BigIron RX Series Hardware Installation Guide
19
53-1002483-03
Hardware features
1

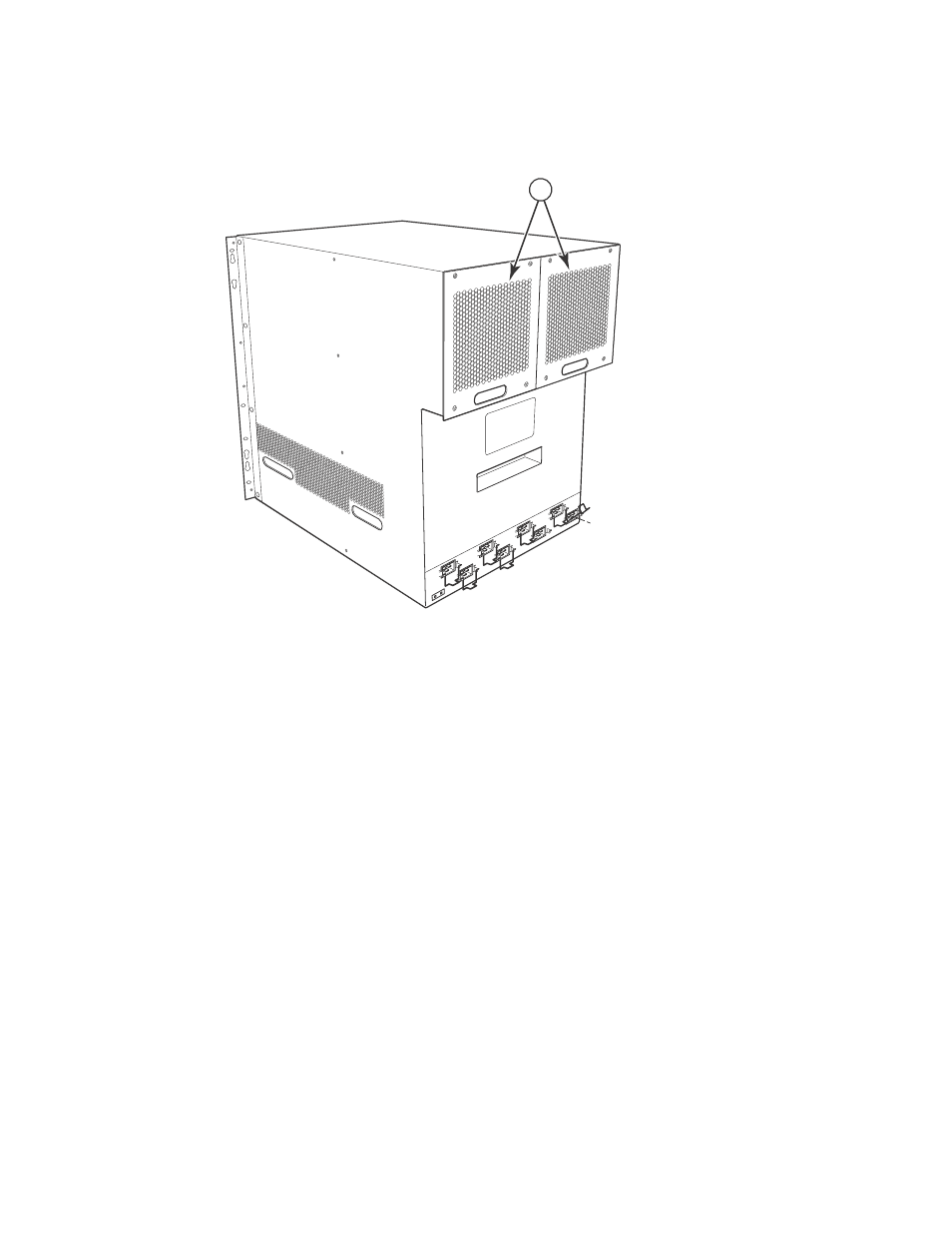

FIGURE 14
Rear fan component locations for the BigIron RX-16
Upon system startup, the fans in the BigIron RX Series switches operate at high speed, then the
management module lowers the fan speed to low speed.
By default, the BigIron RX Series switch polls the temperature sensor on each module every 60
seconds to get a temperature reading. Depending on the temperature readings for the modules,
the system can do the following:
•
Leave the fan speed as is
•
Increase the fan speed
•
Decrease the fan speed
•
Shut down a module to prevent damage
If the temperature of a module exceeds specified high temperature thresholds, the system
generates a Syslog message and SNMP trap. The system can also shut the module down if the
temperature exceeds the highest threshold.
LEDs
The fan control modules include a bi-color LED, which indicates the status of the fans.
describes the LED.
1
Fan modules
1
