Booting the DSP in Master Boot Mode
CS4953x4/CS4970x4 System Designer’s Guide
DS810UM6 Copyright 2013 Cirrus Logic, Inc 1-7

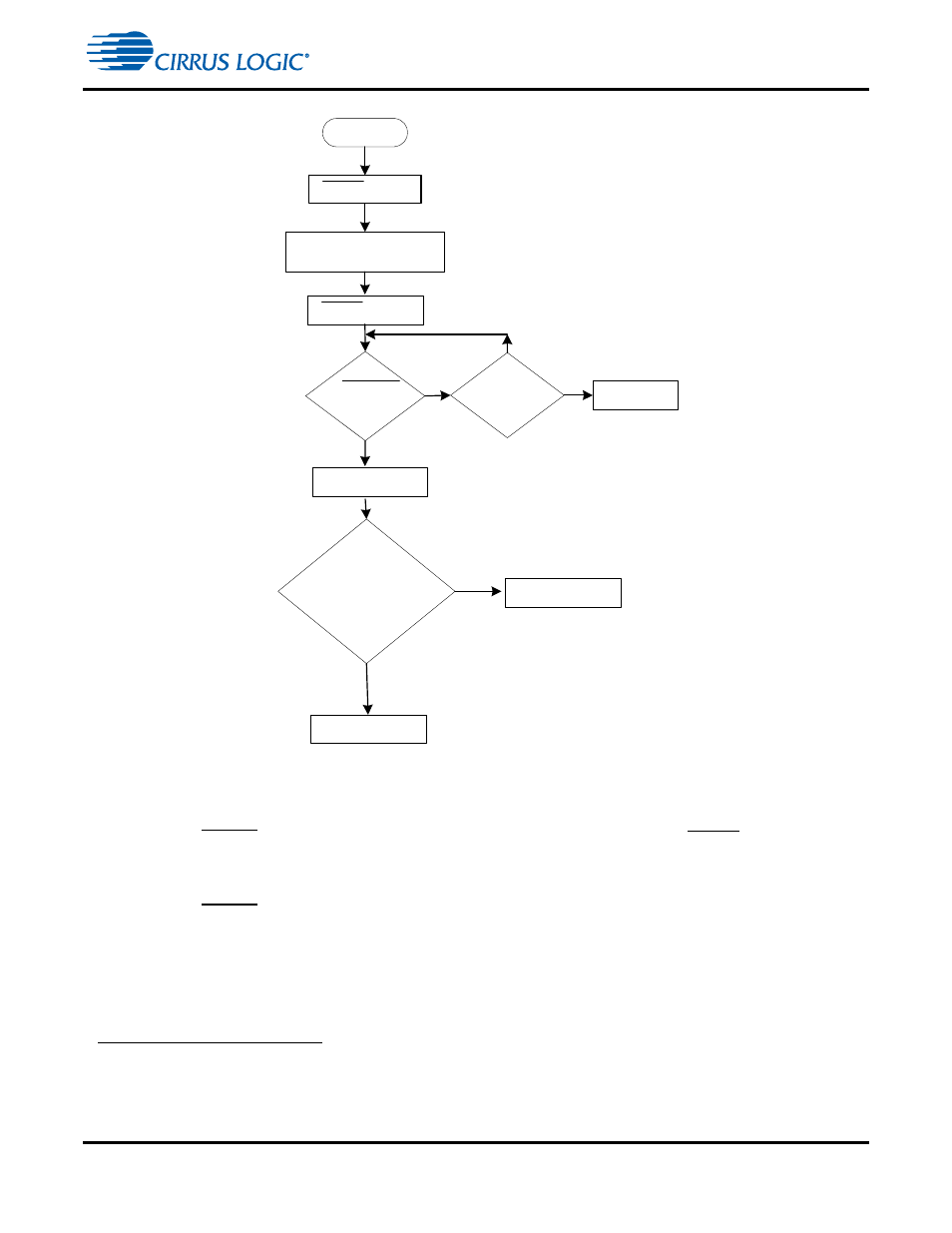

Figure 1-4. Master Boot Flow
1.3.1.1 Master Boot Protocol
1. Set RESET Low. A download sequence is started when the host holds the RESET pin low for the
required time.
2. Wait for 1 uS.
3. Set RESET High. As soon as Reset goes High, the SCP2 lines will start toggling and the DSP will
begin to boot from SPI Flash. The commands sent out to the SPI Flash are listed in Table 1-1
4. Wait for SCP1_IRQ to go Low.
5. Read the message from the DSP. Current DSP messages are described in Table 1-2 .
6. If the Master boot is successful, the DSP will respond with the “Flash image verified” message
1
.
1. A “Flash image verified” message does not guarantee that the complete Flash image has been
programmed correctly or is bit-exact. This message only verifies that certain key words are at specified
locations. It is the user’s responsibility to ensure that the Flash is programmed correctly by reading the
contents of the Flash.
RESET (High)
Start
RESET (Low)
Wait 1 µS
Exit (Error)
Is SCP1_IRQ
Low?
N Is Time
> 1 Sec?
Y
READ_* (MSG)
Y
Is Message =
Flash Image Verified?
DONE
Y
Exit (Error)
N
N
