8.3.8 Power-up state Page
The Power-up state page is used to define the default DSP state at power-up. This page defines initial
modules (and their modes) to be loaded immediately after master boot.

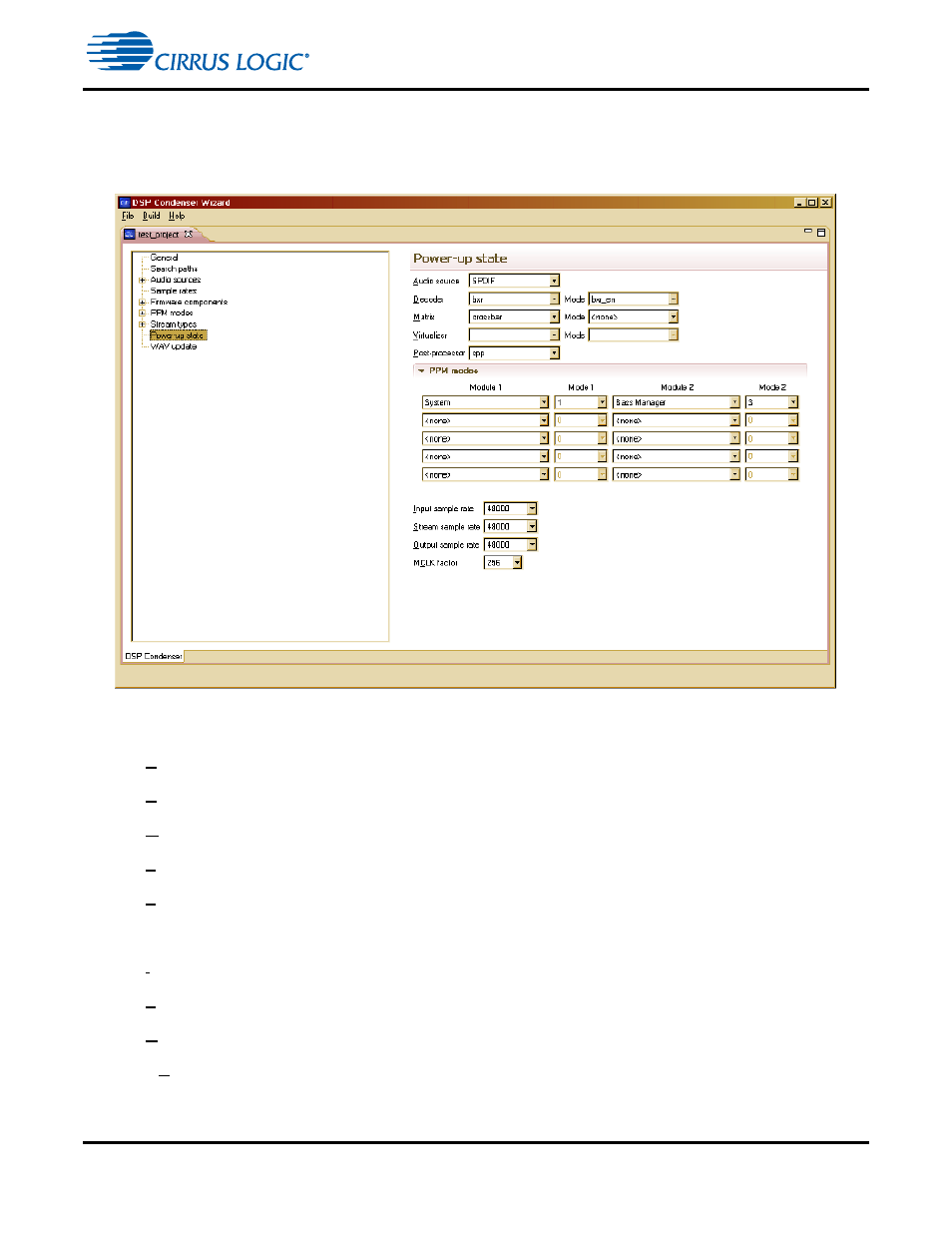

Figure 8-9. DSP Condenser Wizard, Power-up state Page
Audio source — default audio source for power-up state
Decoder — default decoder for power-up state
Matrix — default matrix for power-up state
Virtualizer — default virtualizer for power-up state
Post processor — default post processor for power-up state
PPM modes — lists of supported PPM modules and their modes for power-up state
Input sample rate — default input sample rate for power-up state
Stream sample rate — default stream sample rate for power-up state
Output sample rate — default output sample rate for power-up state
MCLK factor — default MCLK factor for power-up state
