Mode name — Customized name for selected snapshot (this name is used later throughout the GUI).
This is also incorporated in the output .h file produced, as part of an enum that can be used by MCU code
to specify the index.
8.3.6 PPM modes Page
The PPM modes page defines which CFGs are necessary, depending on what mode is selected. PPMs
are handled differently in the DSP Manager API than other overlays, so they are defined in the flash
image differently as well. Unlike other overlays, PPM ULDs frequently have many different modules in
them (rather than only one or two).

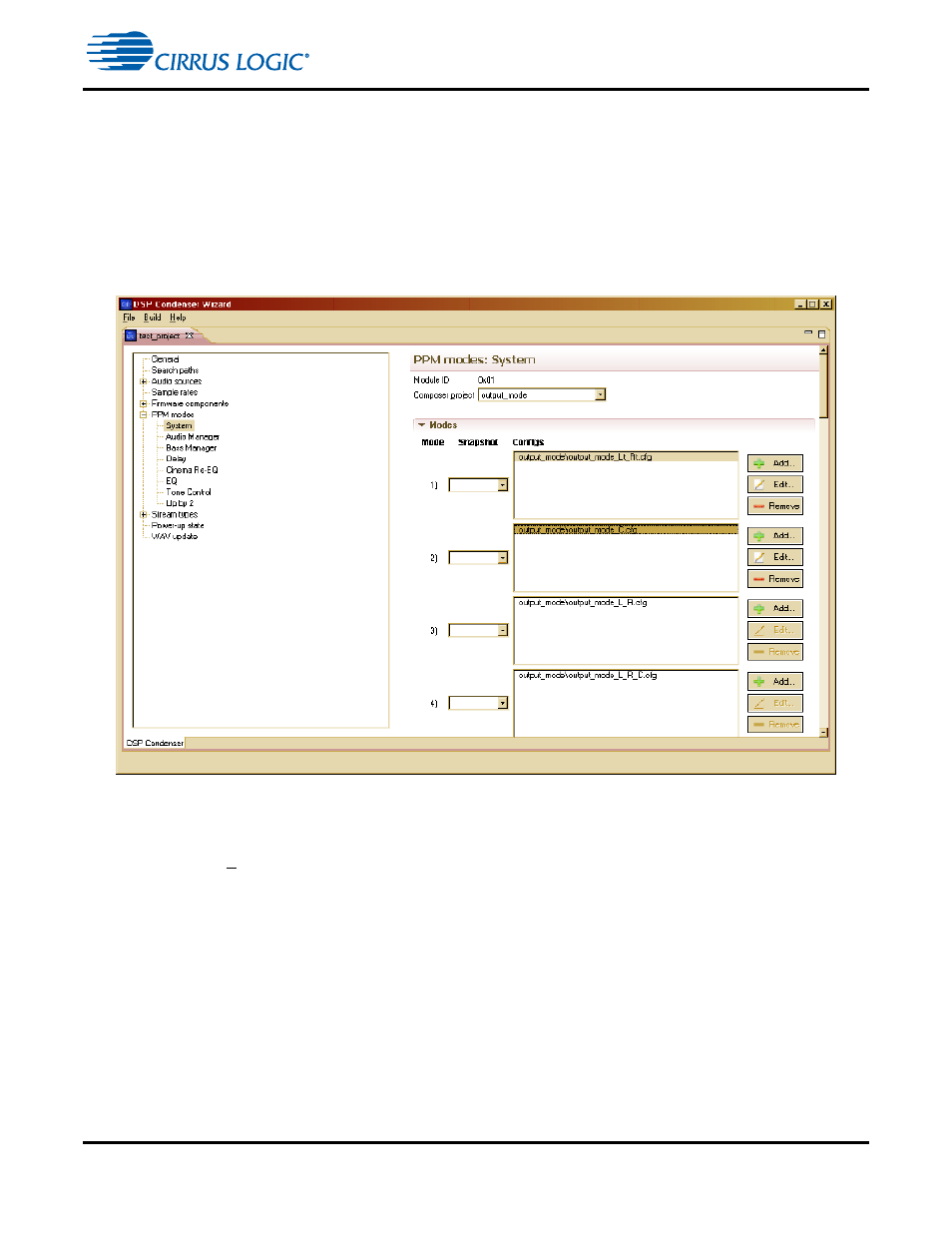

Figure 8-7. DSP Condenser Wizard, PPM modes Page
Module ID — The unique ID for the mode highlighted on the left (read only).
Composer project — list of DSP Composer projects that has been saved in current project's directory.
Snapshot — List of snapshots created in DSP Composer for this project.
Configs — One or more .cfg file definitions. For more detailed explanation see the Configs description
under the Firmware components page.'
