8-23 Copyright 2013 Cirrus Logic, Inc. DS810UM6
Creating a Flash Image
CS4953x4/CS4970x4 System Designer’s Guide
8.7.2.1 Using the DSP Condenser Wizard to Create a Serial Flash Image
To use the DSP Condenser wizard, follow these steps:
1. Install the DSPcondenser.exe and the required firmware modules into the cs4953x_eval_kit install
directory (e.g.,:C:\CirrusDSP)
2. Open DSP Condenser wizard from the Start Menu

CirrusDSP
3. To create a new project, Click on File

New project.
4. Type a suitable project name. Choose the appropriate template. The templates basically provide a
starting point with example configurations for the project. The following examples are shipped with
the evaluation kit:
• Sample template corresponds to a project with unlicensed technologies (suitable for CS4953x4,
CS4970x4)
• Sample_licensed_legacy template corresponds to a project with legacy licensed firmware modules
(suitable for CS4953x4)
• Sample_licensed template corresponds to a project with legacy and HD licensed firmware modules
(suitable for CS4970x4)
This action creates a project with the provided project name in the following location:
C:\CirrusDSP\DSPCondenser\projects\
5. Click OK and the main screen of the new project window in DSP Condenser should appear as
shown in Figure 8-17 . Ensure that the window that opens is maximized to show all the fields.

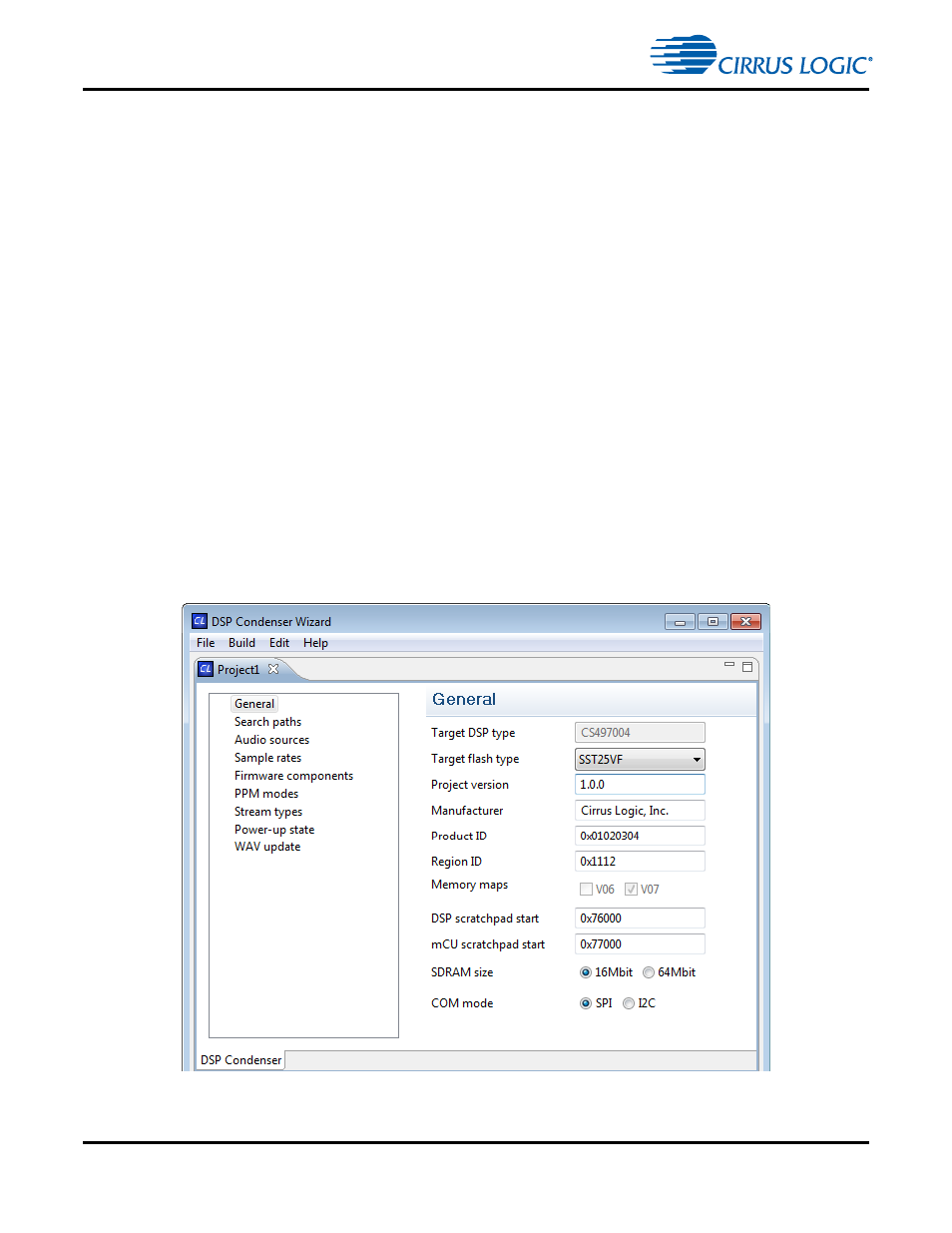

Figure 8-17. New Project Window in DSP Condenser
