RESTRICTED USE ONLY Fargo Electronics, Inc.
DTC400e/Persona C30e/M30e Card Printer User Guide (Rev. 1.1) 6-87
Selecting the Defined Area(s) function (Front and Back options)
To define an area, refer to the following steps:
Step Procedure

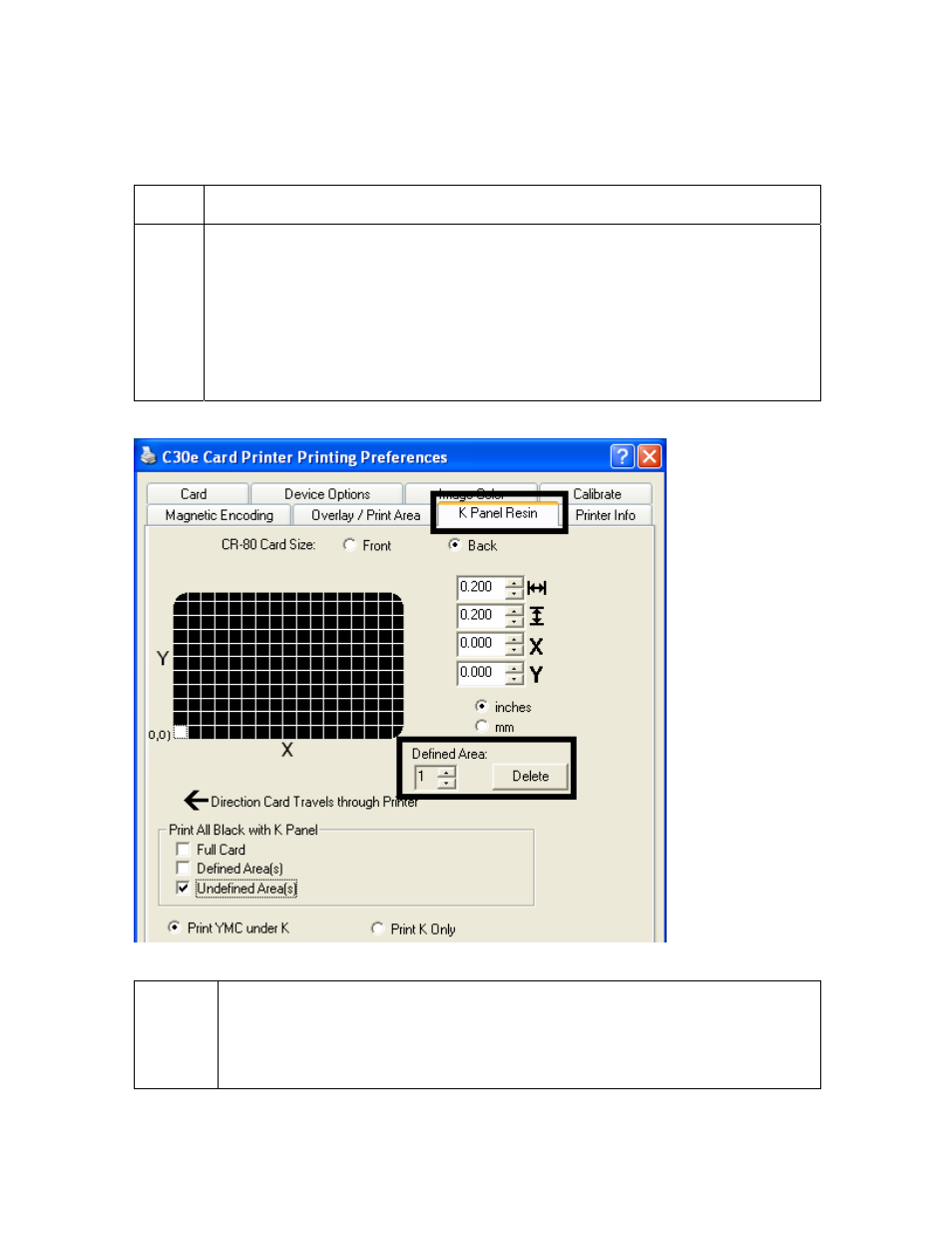

1 Click Defined Area(s). (Note: This will activate the card grid in the upper half
of the window. It is through this card grid that up to five areas can be defined.)
When the card grid is first activated, a small square will appear at its default
size of .2" x .2" / 5mm x 5mm and at its default location in the lower left-hand
corner (0, 0). This square represents the first defined area.
(Note: Changing the orientation of the card in the Card Tab will change the
appearance of this Tab.)
2 a. Determine the area of the card necessary to define. In the sample
(below), this area is indicated by the dashed outline.
b. Determine the size of this area by actually printing a card and looking at it
in the same orientation as when it exits the Printer.
