L name, shown in figure 51 on – Allied Telesis SwitchBlade x3112 User Manual
Page 98
Chapter 4: Installing the Power Supplies
98

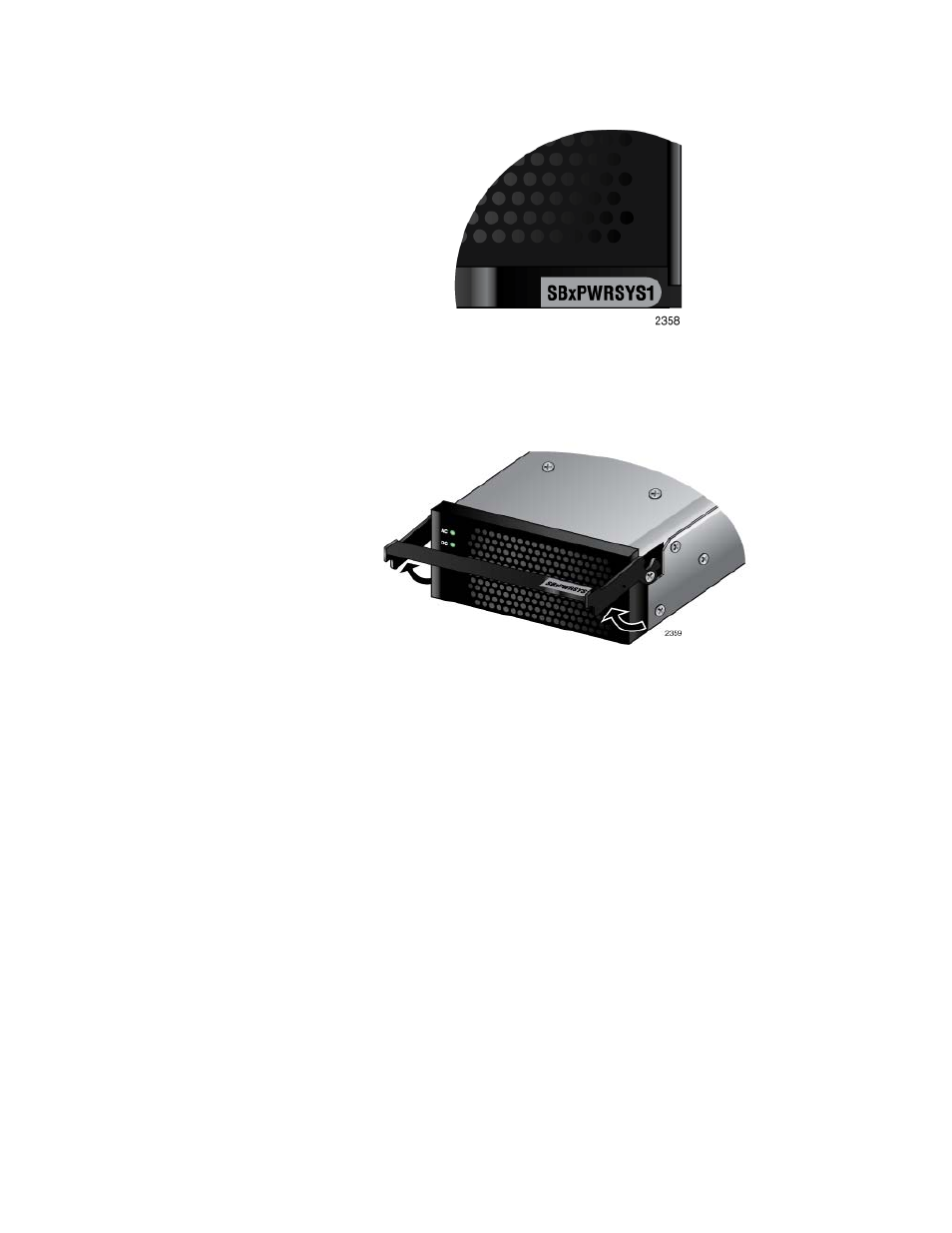

Figure 51. Verifying the AT-SBxPWRSYS1 AC Power Supply
5. Move the locking handle on the AT-SBxPWRSYS1 AC Power Supply
to the unlocked or up position. See Figure 52.
Figure 52. Raising the Handle on the AT-SBxPWRSYS1 AC Power
Supply
6. Align and insert the AT-SBxPWRSYS1 AC Power Supply into the
power supply slot. Figure 53 on page 99 shows the power supply
being installed in slot D.
