Chapter 5: Installing the AT-SBx31CFC Card and Ethernet Line Cards

114

Installing the AT-SBx31CFC Central Fabric Controller Card

This section contains the installation procedure for the AT-SBx31CFC
Central Fabric Controller card. You may install either one or two control
cards in the unit. The chassis must have at least one control card. The
cards must be installed in slots 4 and 5 in the chassis.

Caution

The electronic components on the AT-SBx31CFC Card can be
damaged by electro-static discharge (ESD). Follow the procedure in
“Protecting Against Electrostatic Discharge (ESD)” on page 94 to
guard against ESD damage when unpacking and installing the card.

This procedure requires the following tools:

#2 Phillips-head screwdriver (not provided)

#2 Phillips-head, 5 inch-lbs torque screwdriver (optional — not
provided))

To install the AT-SBx31CFC Card, perform the following procedure:

1. Choose a slot in the chassis for the AT-SBx31CFC Central Fabric

Controller card.

The card must be installed in slot 4 or 5. If you are installing only one
control card, you may install it in either slot. Refer to Figure 69.

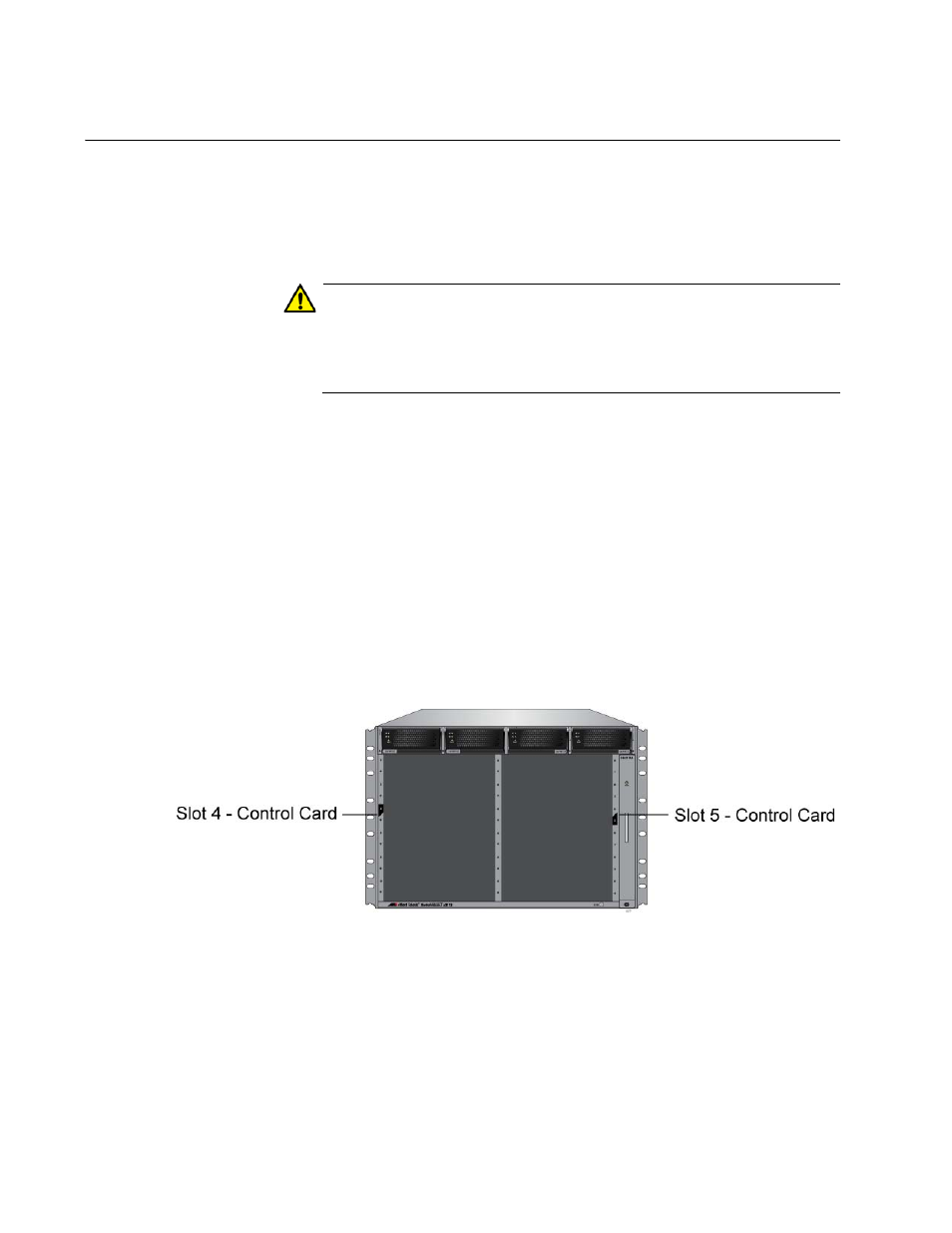

Figure 69. Slots 4 and 5 for the AT-SBx31CFC Card

2. Remove the new AT-SBx31CFC Card from the shipping package and

verify the package contents, listed in Figure 70 on page 115.

If any item is missing or damaged, contact your Allied Telesis sales
representative for assistance.
