Introduction
The SwitchBlade x3112 product is a modular Gigabit and 10 Gigabit
Ethernet switch. The main components are the AT-SBx3112 Chassis,
Ethernet line cards, a control card, a system power supply, a Power over
Ethernet Plus (PoE+) power supply, and a fan module. The AT-SBx3112
Chassis is shown in Figure 1.

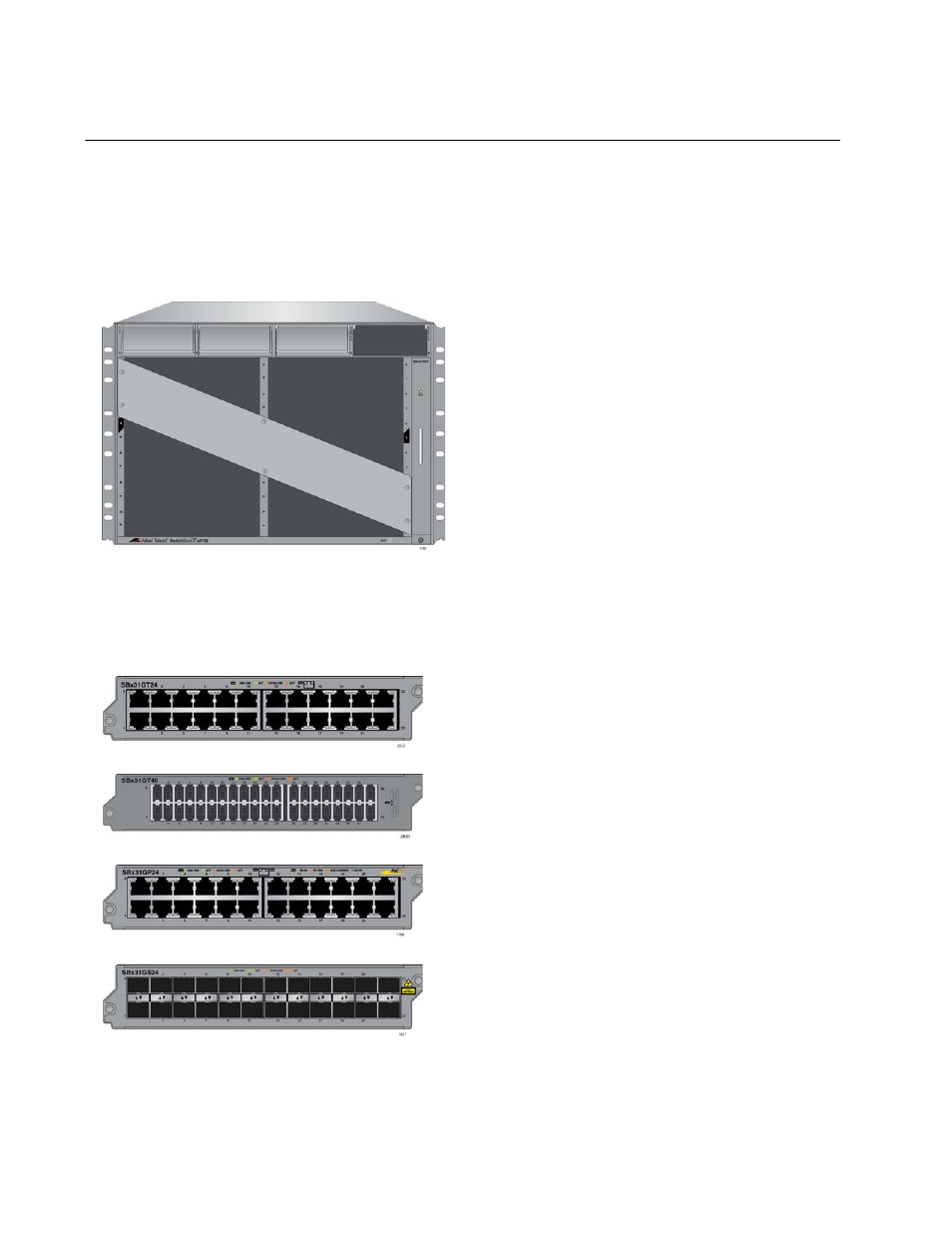

Figure 1. AT-SBx3112 Chassis
The Ethernet line cards and AT-SBx31CFC Central Fabric Controller card
are shown in Figure 2 here and Figure 3 on page 21.
Figure 2. Ethernet Line Cards and AT-SBx31CFC Central Fabric
Controller Card
Slots for ten Ethernet line cards, two control
cards, two system power supplies, and two
Power over Ethernet Plus (PoE+) power
supplies.
AT-SBx31GT24 Ethernet Line Card with 24
10/100/1000Base-T twisted pair ports.
AT-SBx31GP24 Ethernet Line Card with 24
10/100/1000Base-T twisted pair ports, with
PoE+.
AT-SBx31GS24 Ethernet Line Card with 24
slots for 100 or 1000Mbps, fiber optic or
twisted pair SFP transceivers.
AT-SBx31GT40 Ethernet Line Card with 40
10/100/1000Base-T twisted pair ports, with
RJ point 5 connectors.
