Allied Telesis SwitchBlade x3112 User Manual
Page 136

Chapter 6: Installing the Transceivers and Cabling the Ports
136
Installing SFP and CSFP Transceivers in the AT-SBx31GC40 Line
Card
Please review the information in “Guidelines to Installing SFP, SFP+,
CSFP, and XFP Transceivers” on page 131 before performing this
procedure.
To install SFP and CSFP transceivers in AT-SBx31GS24 Line Cards,
perform the following procedure:
1. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
2. Remove the dust cover from the slot chosen for the transceiver.
Figure 90 shows the dust cover being removed from the first slot.

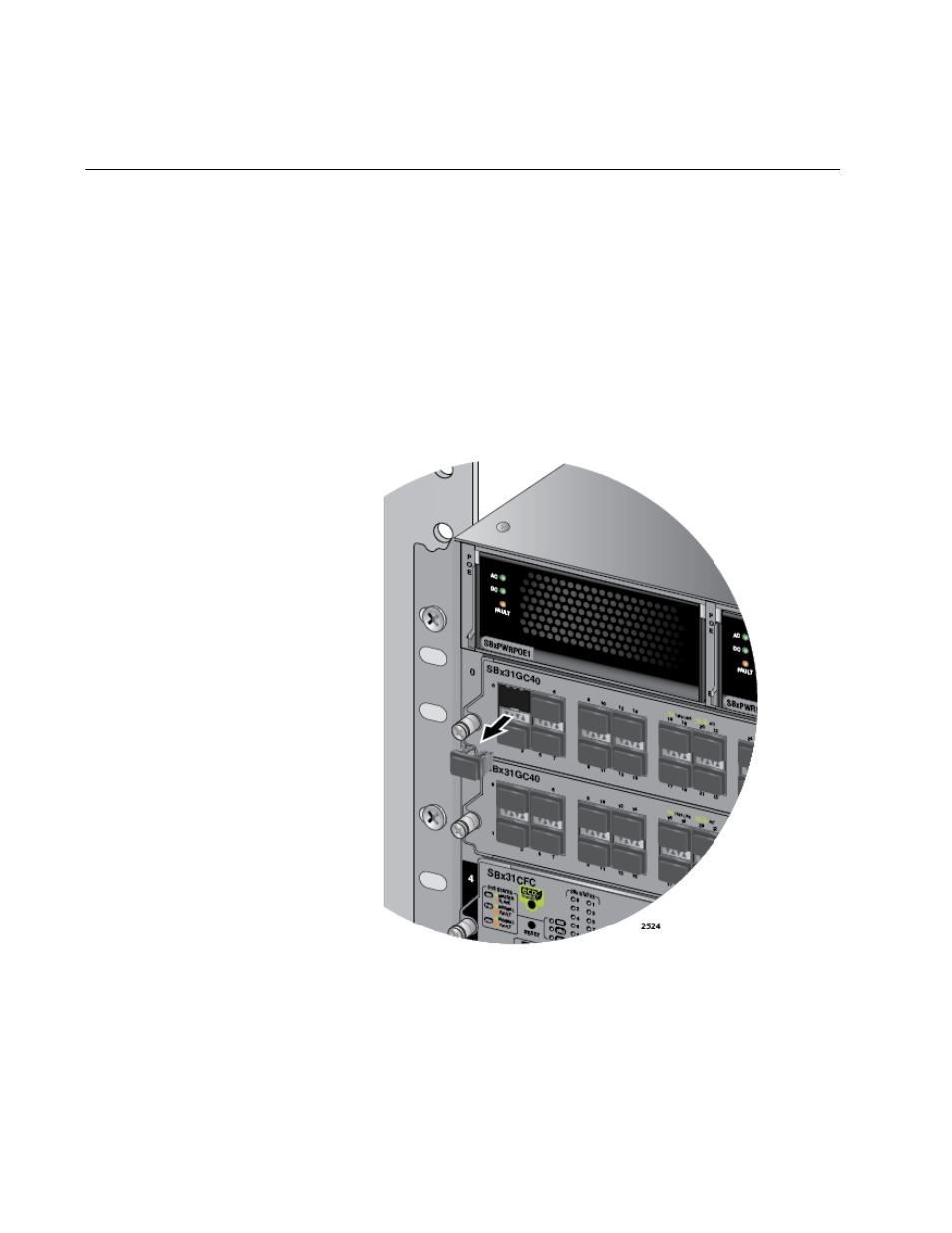

Figure 90. Removing the Dust Cover from a Transceiver Slot
