Chapter 3: Installing the Chassis in an Equipment Rack
82
Unpacking the AT-SBx3112 Chassis
To unpack the AT-SBx3112 Chassis, perform the following procedure:
1. Remove all components from the shipping package.
2. Verify the contents of the shipping container by referring to Figure 36
here and Figure 37 on page 83. If any item is missing or damaged,
contact your Allied Telesis sales representative for assistance.

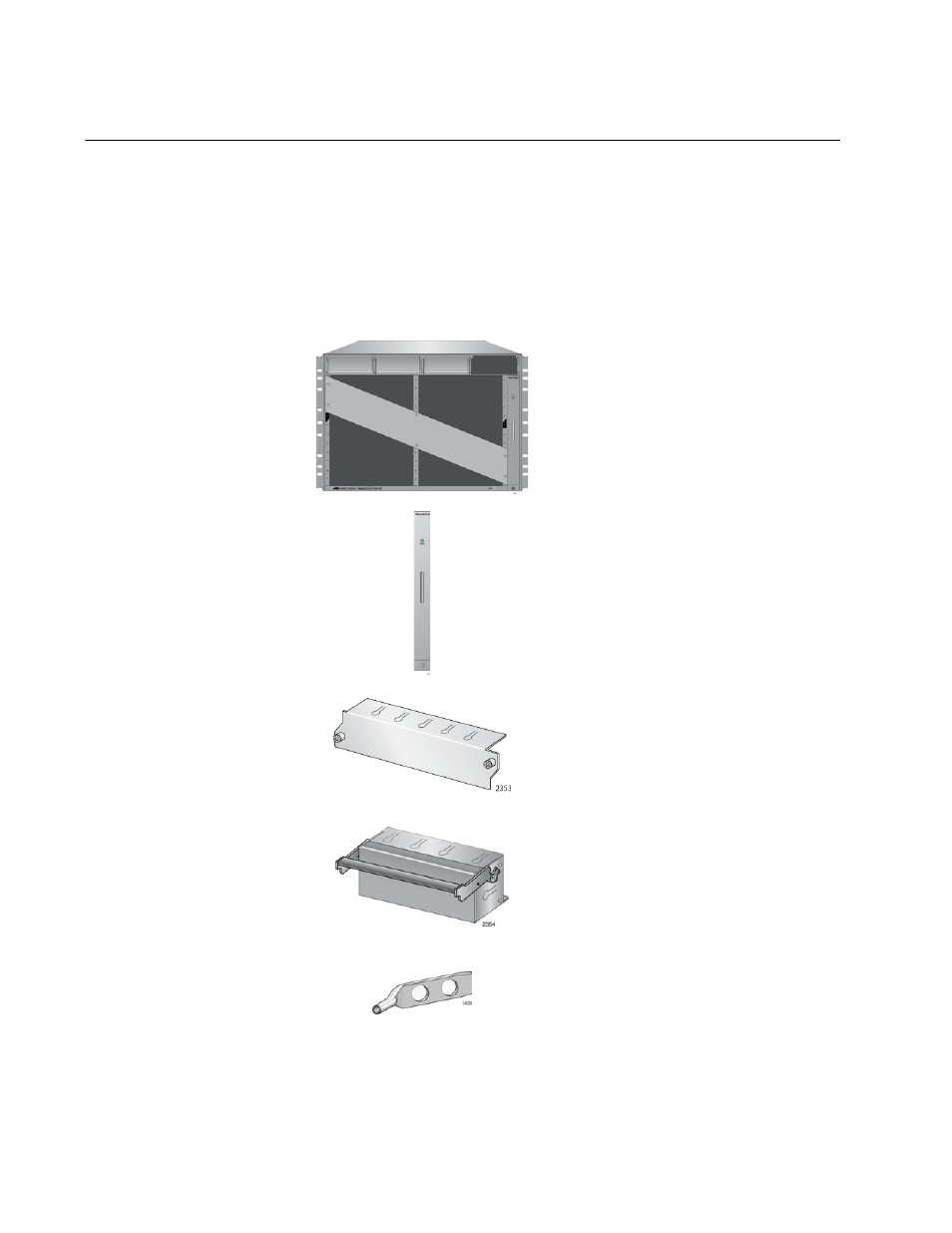

Figure 36. AT-SBx3112 Chassis Items
One AT-SBx3112 Chassis
One AT-SBxFAN12 Module pre-
installed in the vertical slot on
the right side of the front panel
Ten blank line card slot covers
Three blank power supply slot
covers pre-installed in power
supply slots A to C on the front
panel
One grounding lug pre-installed
in the lower left corner on the
back panel
