Figure 135: removing the terminal screws – Allied Telesis SwitchBlade x3112 User Manual
Page 177
SwitchBlade x3112 Installation Guide
177

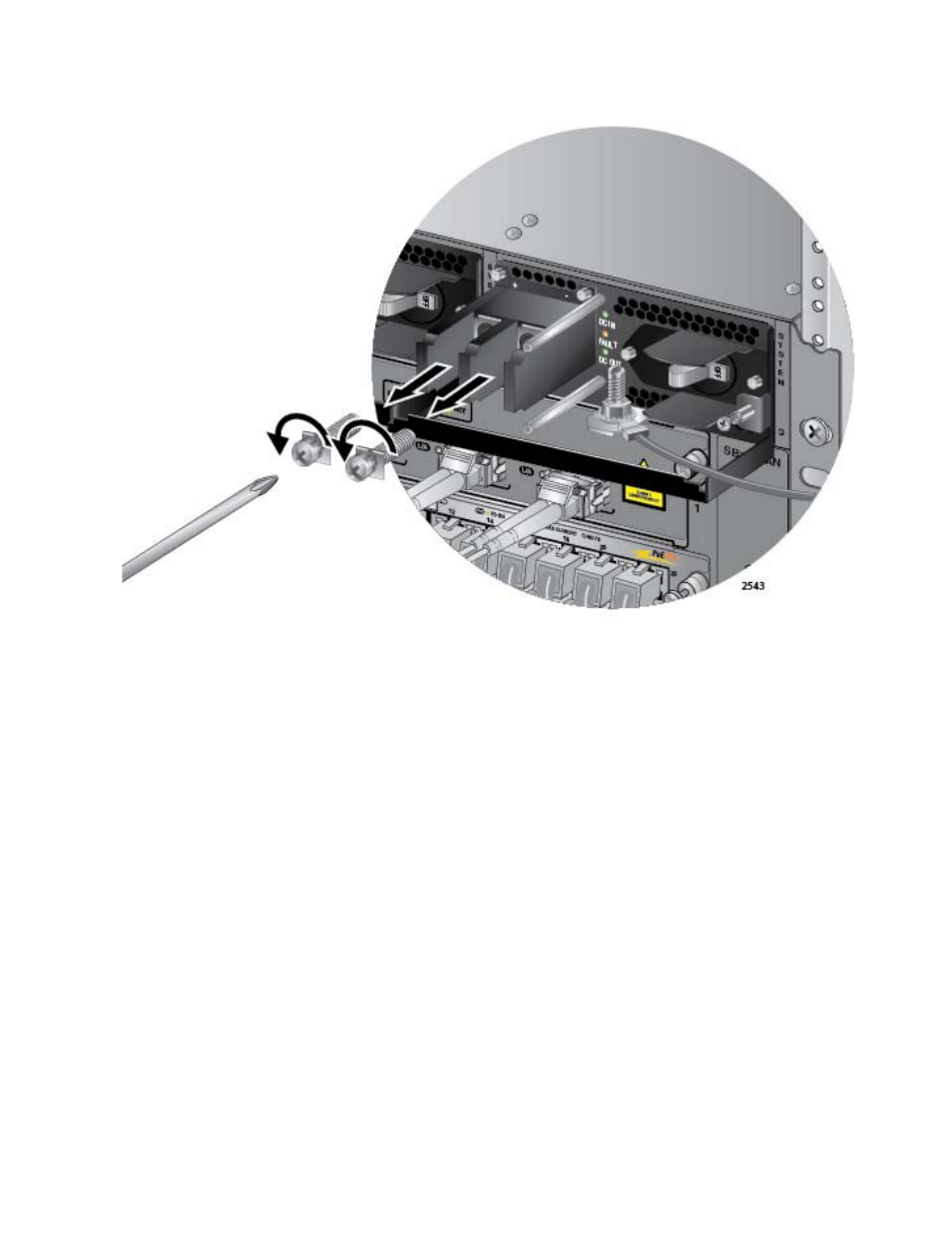

Figure 135. Removing the Terminal Screws
5. Position the power wires over the terminals and secure them to the
terminal block, with the terminal screws removed in step 4 and a #3
Phillips-head screwdriver. The positive terminal is on the left and the
negative terminal is on the right. Refer to Figure 136 on page 178.
Allied Telesis recommends tightening the screws to 30 to 40 inch-lbs.
