Figure 130: tightening the handle locking screw – Allied Telesis SwitchBlade x3112 User Manual
Page 173
SwitchBlade x3112 Installation Guide
173

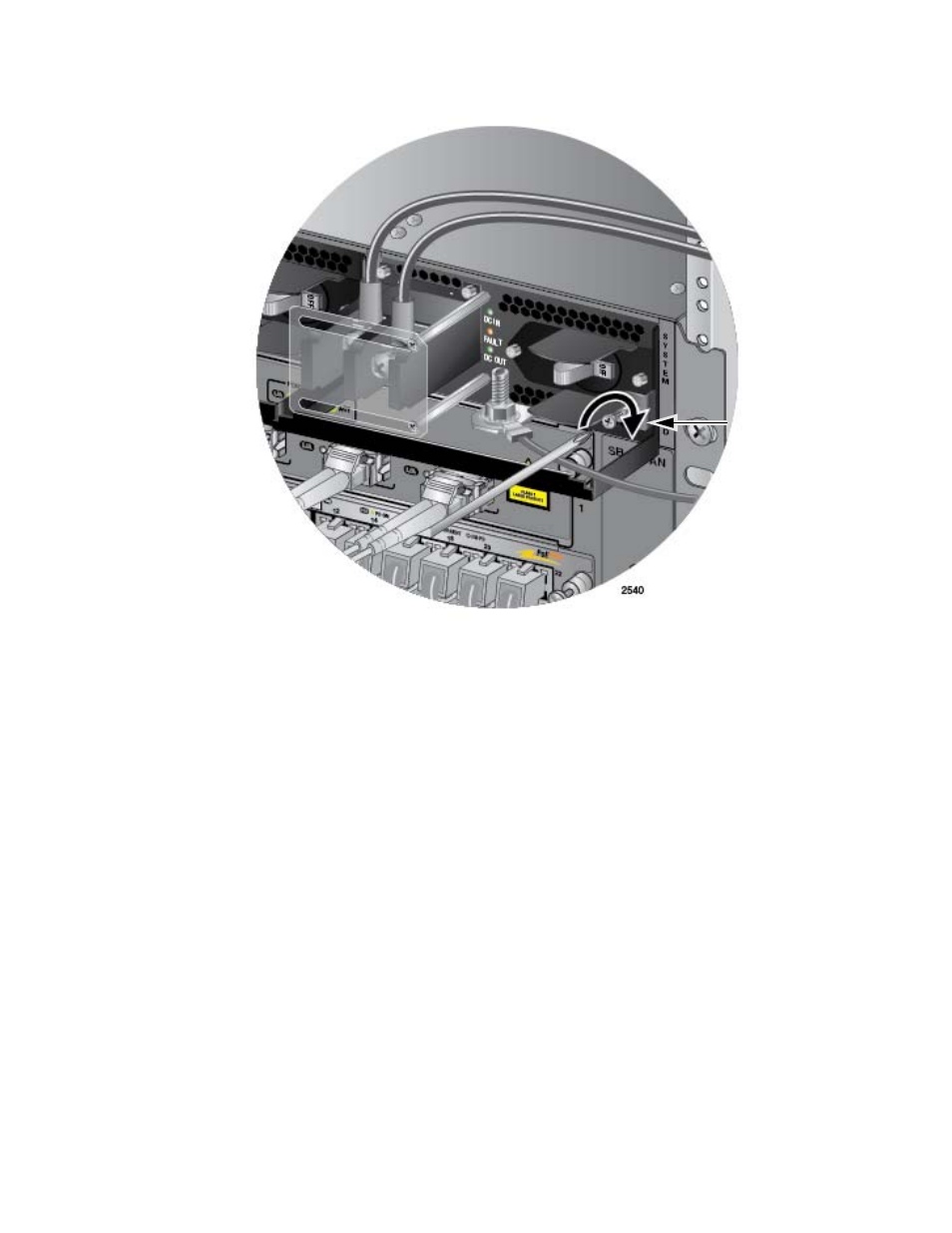

Figure 130. Tightening the Handle Locking Screw
8. Before attaching the power wires from the power supply to the circuit
breaker in the wiring closet, check that the circuit breaker is off.
9. Connect the power wires to the circuit breaker.
10. Turn the circuit breaker on.
11. Turn the On/Off switch on the power supply to the On position. See
Handle locking
screw
