SwitchBlade x3112 Installation Guide

137

3. To install an SFP or a CSFP transceiver in a slot on the top row of the

line card, orient it with the label on top, as shown in Figure 91. To
install it into a slot on the bottom row of the line card, orient it with the
label on the bottom.

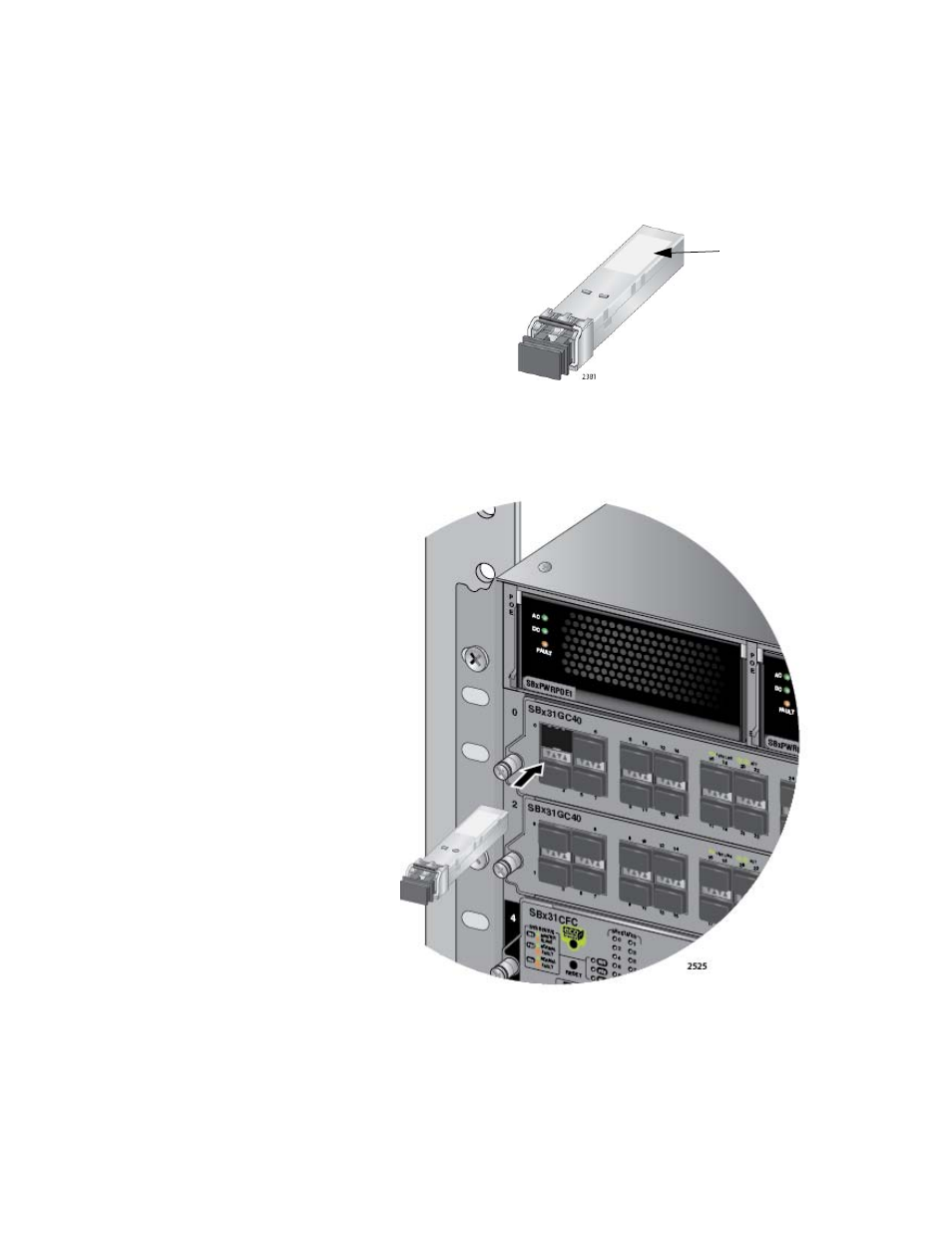

Figure 91. Labels on SFP and CSFP Transceivers

4. Slide the transceiver into the slot until it clicks into place, as shown in

Figure 92.

Figure 92. Inserting an SFP or a CSFP Transceiver

Label
