SwitchBlade x3112 Installation Guide
115

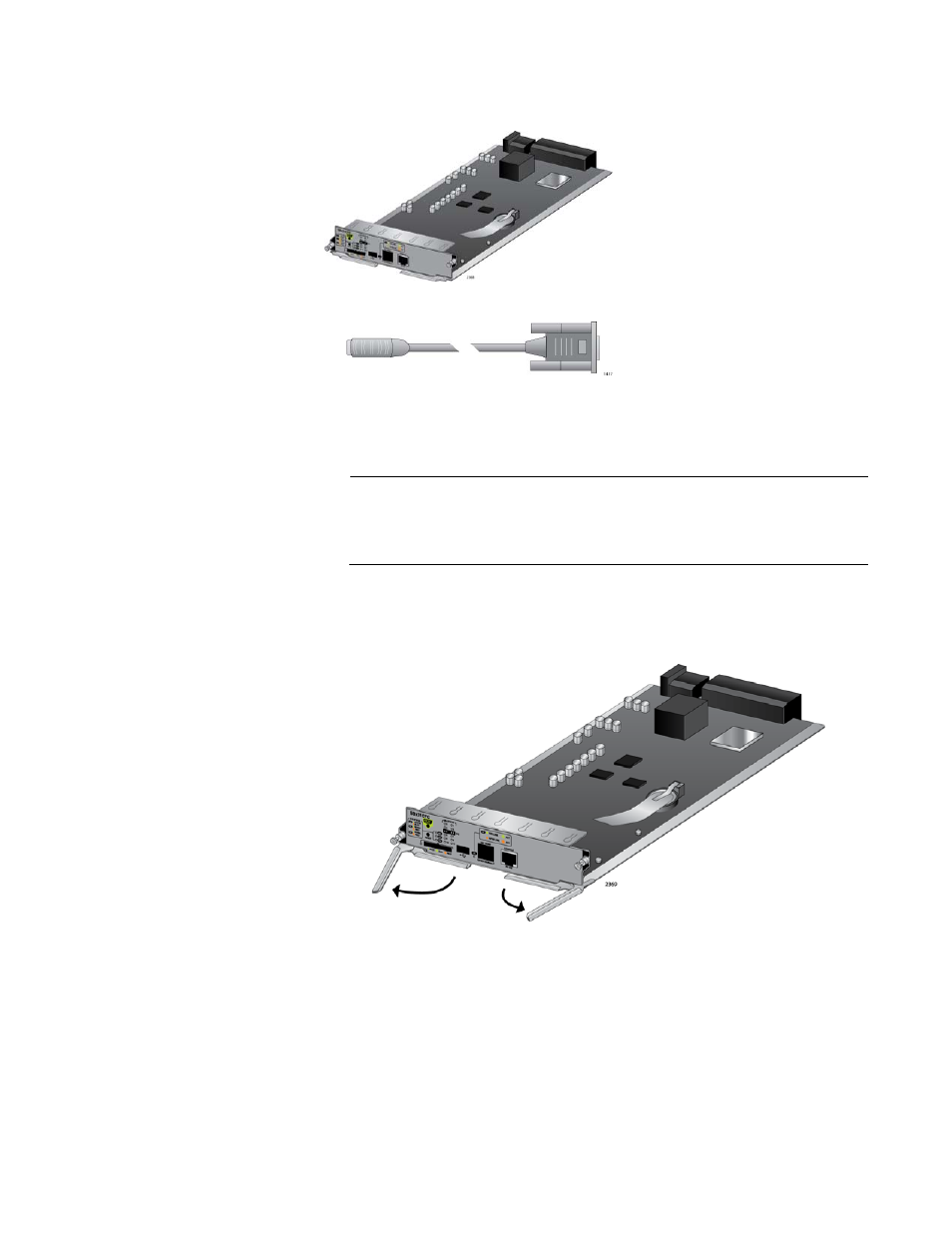

Figure 70. Items Included with the AT-SBx31CFC Central Fabric
Controller Card
Note
Store the packaging material in a safe location. You should use the
original shipping material if you need to return the unit to Allied
Telesis.
3. Move the locking handles on the front panel to the open position, as
shown in Figure 71.
Figure 71. Opening the Locking Handles on the AT-SBx31CFC Central
Fabric Controller Card
4. Remove the battery insulator tab on the control card by sliding it out
from between the battery and battery clip, as shown in Figure 72 on
page 116.
One AT-SBx31CFC
Central Fabric Controller
Card
One 2 m (6.6 ft) local
management cable with
RJ-45 (8P8C) and DB-9
(D-sub 9-pin) connectors.
