Page 51

SwitchBlade x3112 Installation Guide
51
AT-SBx31XZ4
Line Card

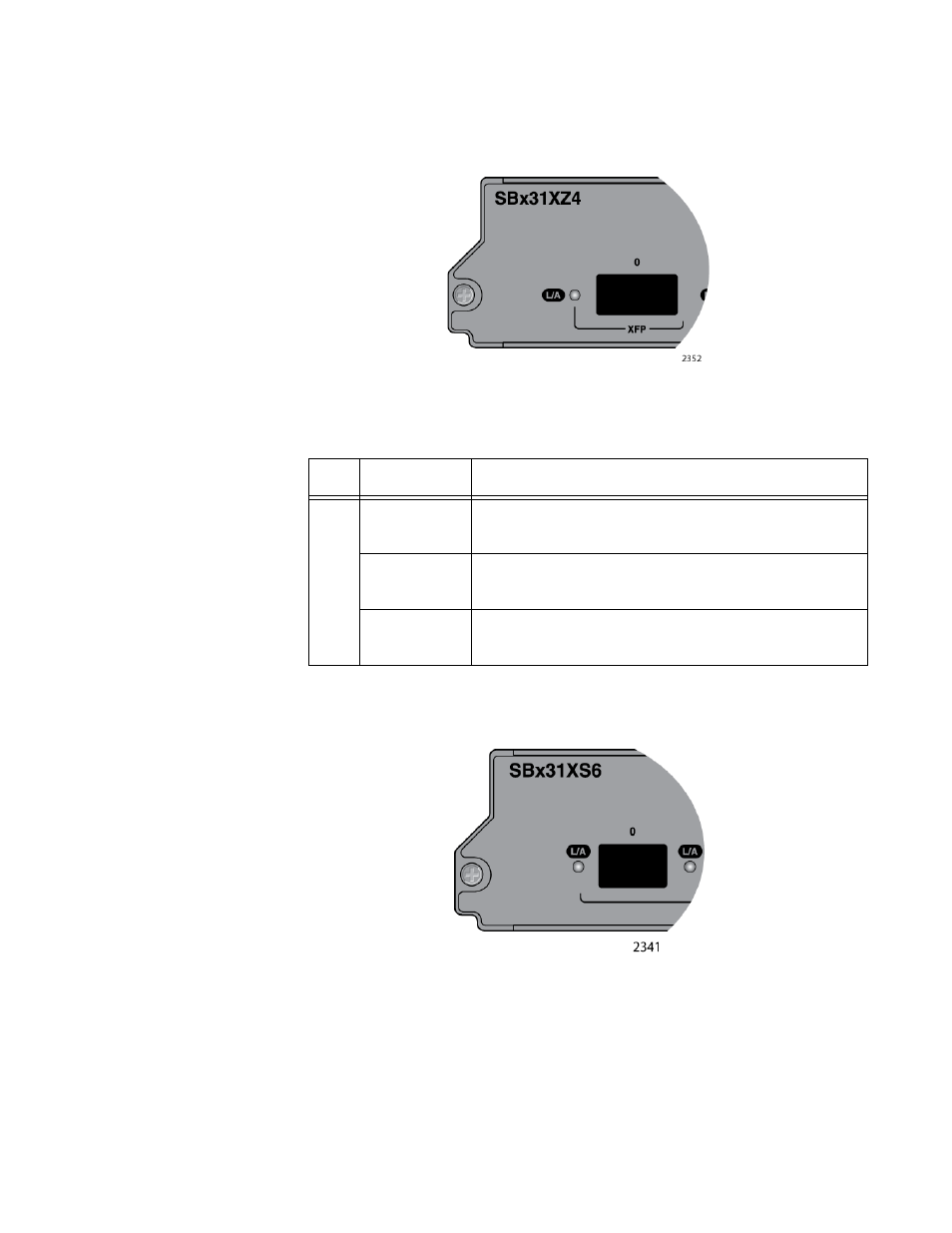

Each XFP slot on the AT-SBx31XZ4 XFP Line Card has one LED. The
LED is shown in Figure 28 and described in Table 10.
Figure 28. Transceiver Slot LEDs on the AT-SBx31XZ4 XFP Line Card
AT-SBx31XS6
Line Card
The AT-SBx31XS6 Line Card has one LED for each SFP+ slot. The LED
is shown in Figure 29 and described in Table 11 on page 52.
Figure 29. SFP+ Slot LEDs on the AT-SBx31XS6 Line Card
Table 10. Transceiver Slot LEDs on the AT-SBx31XZ4 XFP Line Card
LED
State
Description
L/A
Solid Green
The XFP module has established a link with a
network device.
Flashing
Green
The XFP module is transmitting or receiving data
at 10 Gbps.
Off
The slot is empty or the XFP module has not
established a link with a network device.
