Allied Telesis SwitchBlade x3112 User Manual
Page 169
SwitchBlade x3112 Installation Guide
169

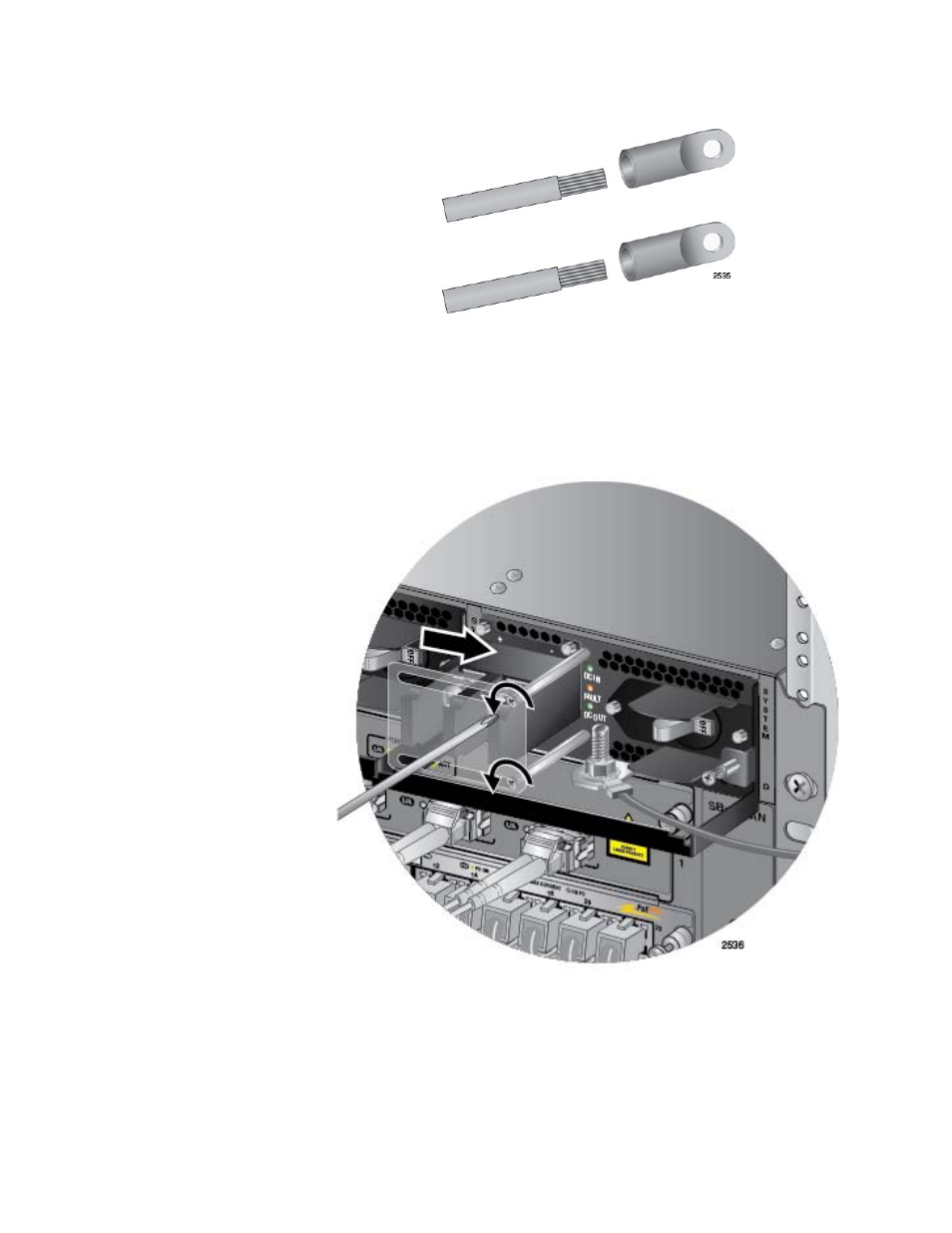

Figure 125. Attaching the Power Wires to the Power Terminal Lugs
3. Use a #1 Phillips-head screwdriver to loosen the two screws on the
plastic cover over the positive and negative terminals on the power
supply and slide the cover to the right, as shown in Figure 126. You
may need to lift the locking handle slightly to access the bottom screw.
Figure 126. Opening the Plastic Cover
4. Use a #3 Phillips-head screwdriver to remove the two screws from the
positive and negative terminals, as shown in Figure 127 on page 170.
