SwitchBlade x3112 Installation Guide

133

3. To install the transceiver in an SFP slot on the top row of the line card,

orient the transceiver with the handle on top, as shown in Figure 86. To
install it into a slot on the bottom row of the line card, orient it with the
handle on the bottom.

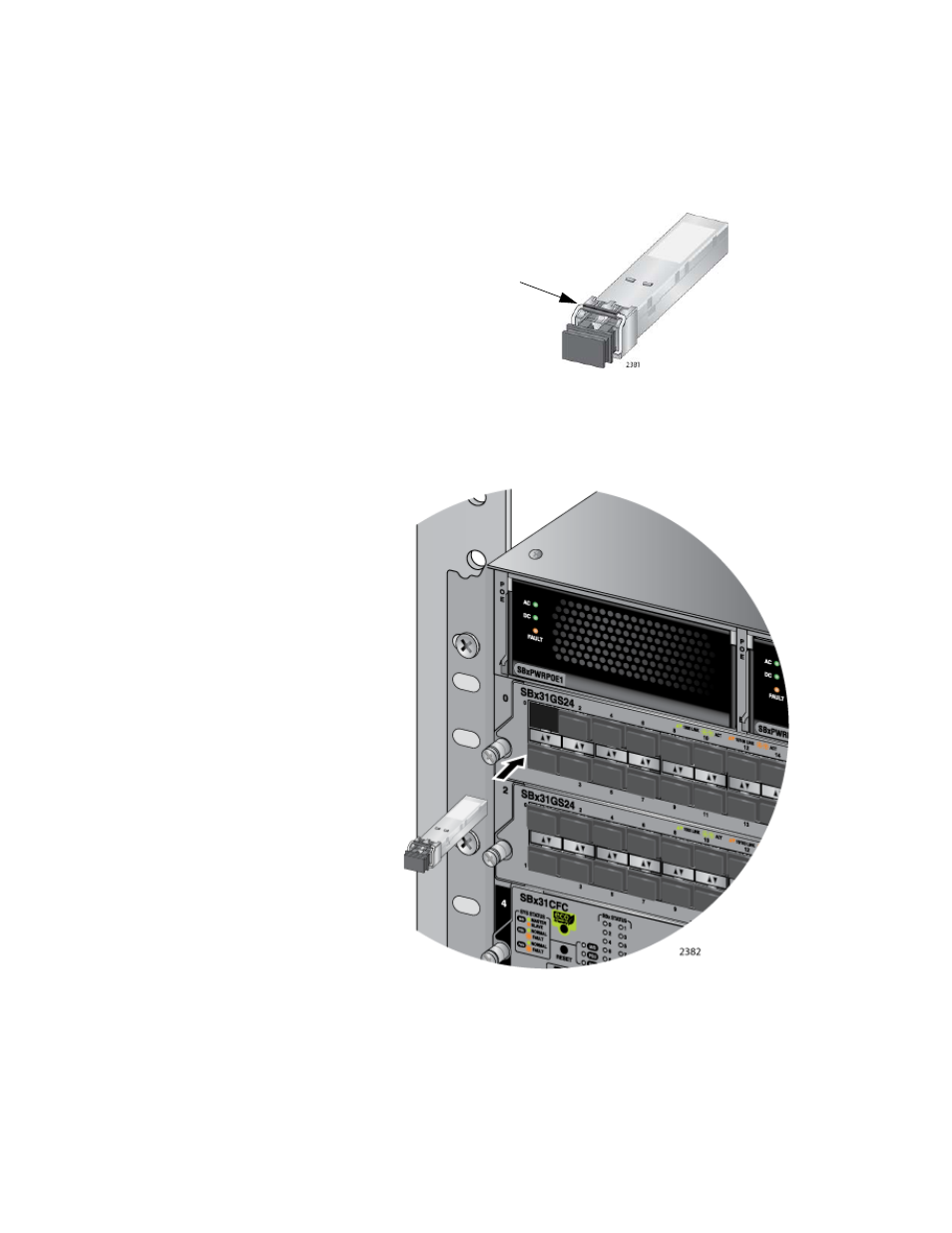

Figure 86. Handle on SFP Transceiver

4. Slide the transceiver into the slot until it clicks into place, as shown in

Figure 87.

Figure 87. Inserting the SFP Transceiver in the AT-SBx31GS24 Line Card

Handle
