SwitchBlade x3112 Installation Guide

101

Installing the AT-SBxPWRPOE1 AC Power Supply

This section contains the installation procedure for the AT-SBxPWRPOE1
AC Power Supply, for the PoE+ ports on the AT-SBx31GP24 PoE Line
Card. For background information, refer to “Power Supplies” on page 62.

Caution

The electronic components in the AT-SBxPWRPOE1 AC Power
Supply can be damaged by electro-static discharges (ESD). Follow
the procedure in “Protecting Against Electrostatic Discharge (ESD)”
on page 94
to guard against ESD damage when unpacking and
installing the power supply.

To install the power supply, perform the following procedure:

1. Choose a slot for the AT-AT-SBxPWRPOE1 AC Power Supply in the

chassis.

You may install it in either slot A or B, shown in Figure 55.

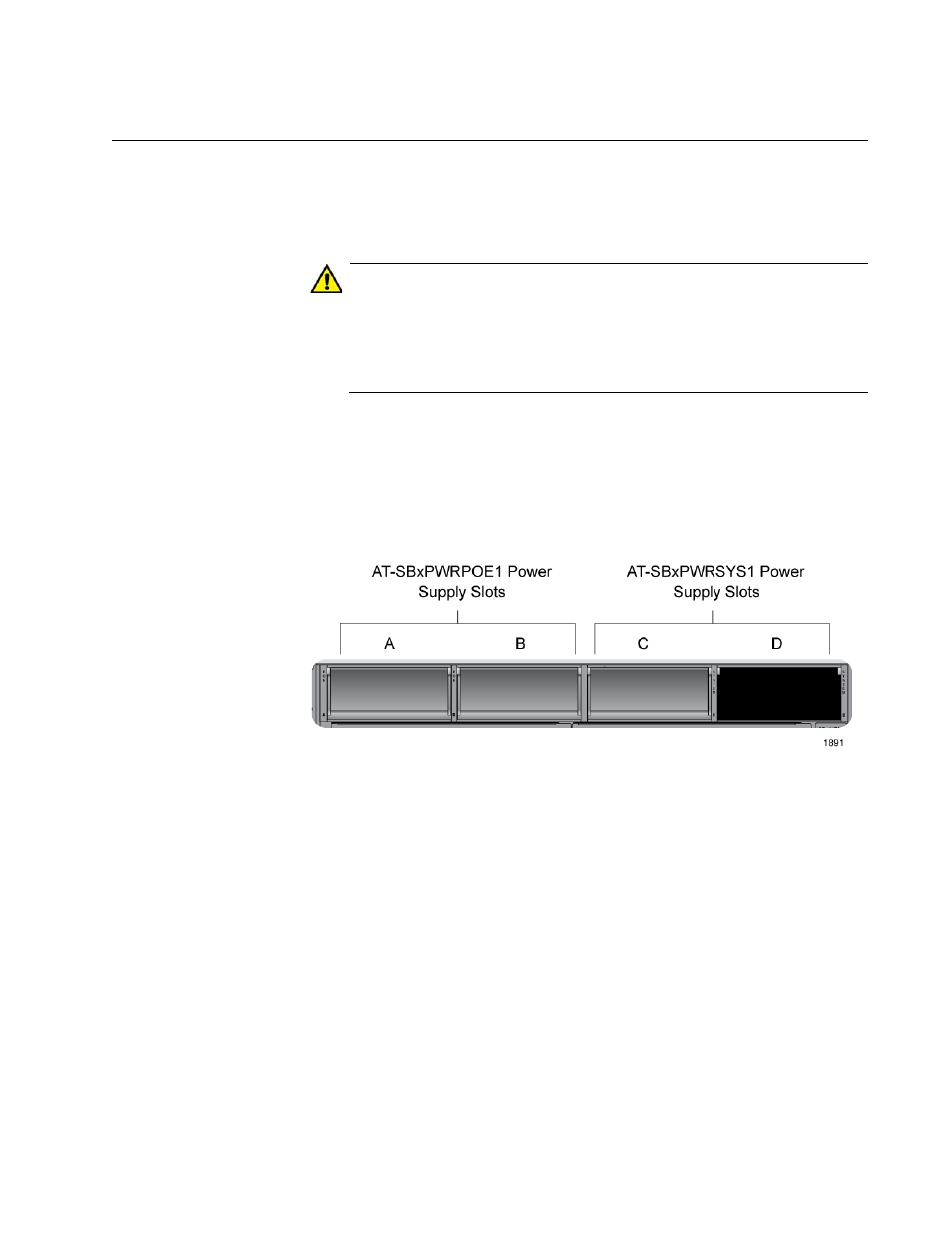

Figure 55. Power Supply Slots

2. Raise the handle on the blank panel covering the selected slot and

slide the panel from the chassis, as shown in Figure 56 on page 102.
