Appendix A ____________________ PROBE INSTALLATION KITS AND INSTALLATION EXAMPLES
VAISALA ________________________________________________________________________ 99
APPENDIX A
PROBE INSTALLATION KITS AND
INSTALLATION EXAMPLES
This appendix describes the available probe installation kits and provides
some installation examples.
Duct Installation Kits (for HMT313/317/315)
Duct installation kit includes a flange, a sealing ring, a supporting bar
and probe attaching part for the probe and screws for attaching the flange
to the duct wall. Vaisala order codes: 210697 (for HMT313) and 210696
(for HMT315, no supporting bar).
0508-028

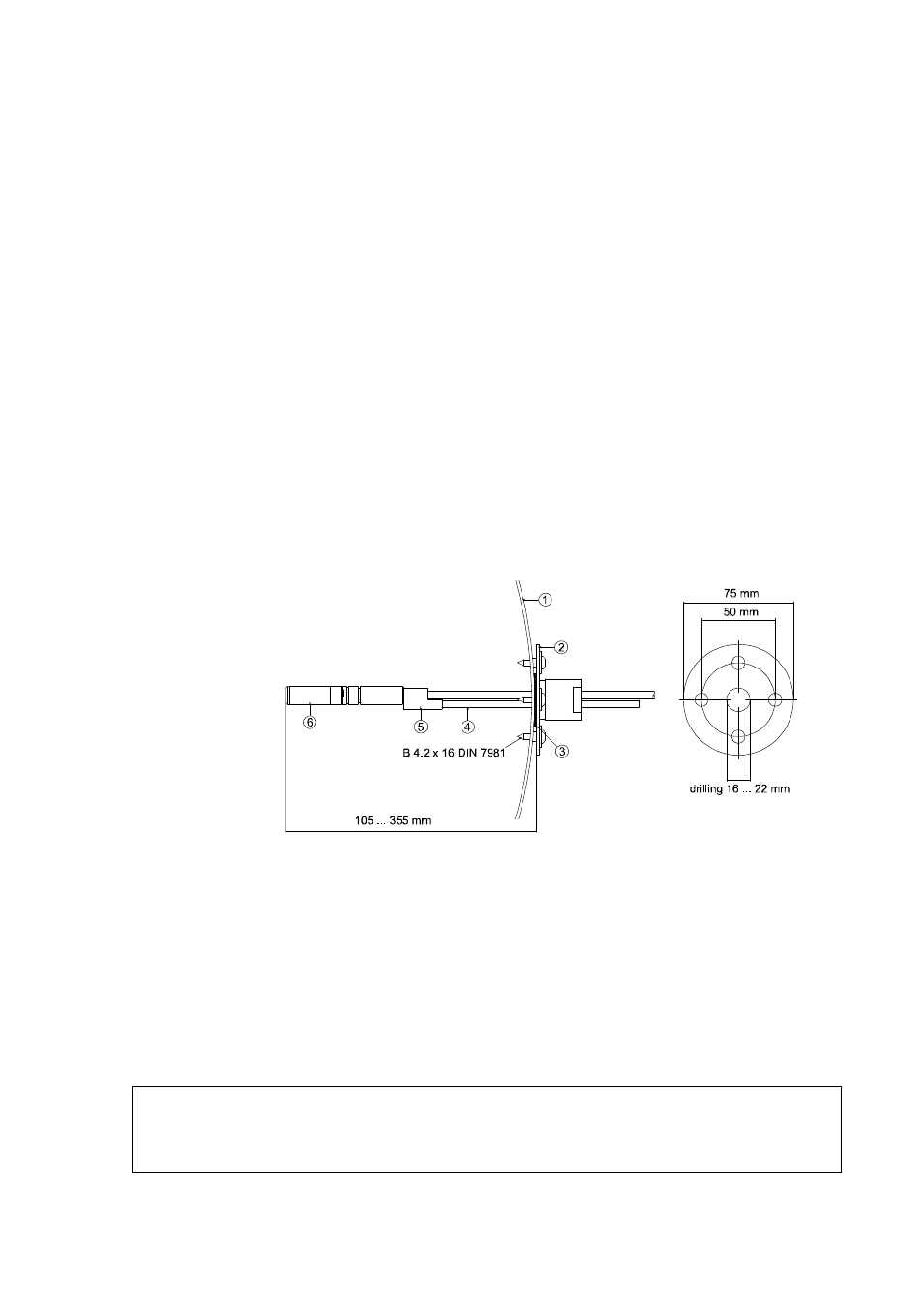

Figure 30 Duct Installation Kit
The following numbers refer to Figure 30 above:
1 = Duct wall
2 = Flange
3 = Sealing ring
4 = Supporting bar (not included in the kit for HMT315)
5 = Probe attaching part (to be fixed with the supporting bar)
6 = Relative humidity probe
NOTE
When the temperature difference between the duct and the air outside the
duct is significant, the supporting bar must be installed as deep in the
duct as possible. This helps to prevent errors caused by heat conduction
in the bar and cable.
