Rh probe installation, Pressure-tight swagelok installation kits, For hmt317) – Vaisala HMT310 User Manual
Page 100: Figure 31, Swagelok installation kit for rh probe
User's Guide _______________________________________________________________________
100 __________________________________________________________________ M210619EN-E
Pressure-Tight Swagelok Installation Kits (for
HMT317)
RH Probe Installation
0508-032

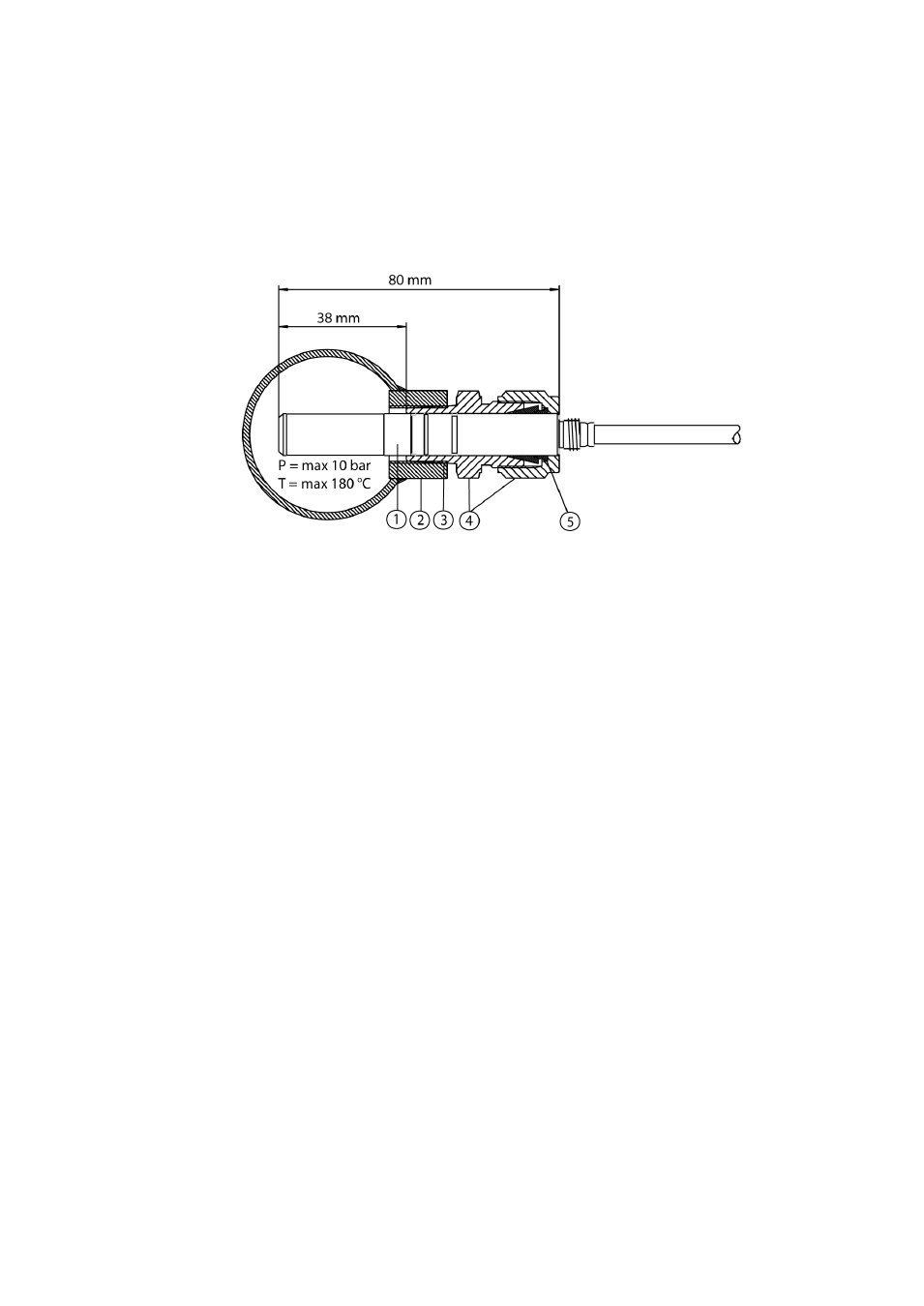

Figure 31
Swagelok Installation Kit for RH Probe
The following numbers refer to Figure 31 above:
1 = Relative humidity probe
2 = Duct connector
3 = ISO3/8" or NPT1/2" thread
4 = Swagelok connector
5 = Ferrules
