Chapter 3 ________________________________________________________________ Installation

VAISALA ________________________________________________________________________ 31

The following two fitting body options are available:

- Fitting Body ISO1/2 solid structure
- Fitting Body NPT1/2 solid structure

Table 4

HMT318 Probe Dimensions

Probe Type

Probe Dimension

Adjustment Range

Standard

178 mm

120 mm

Optional

400 mm

340 mm

0507-025

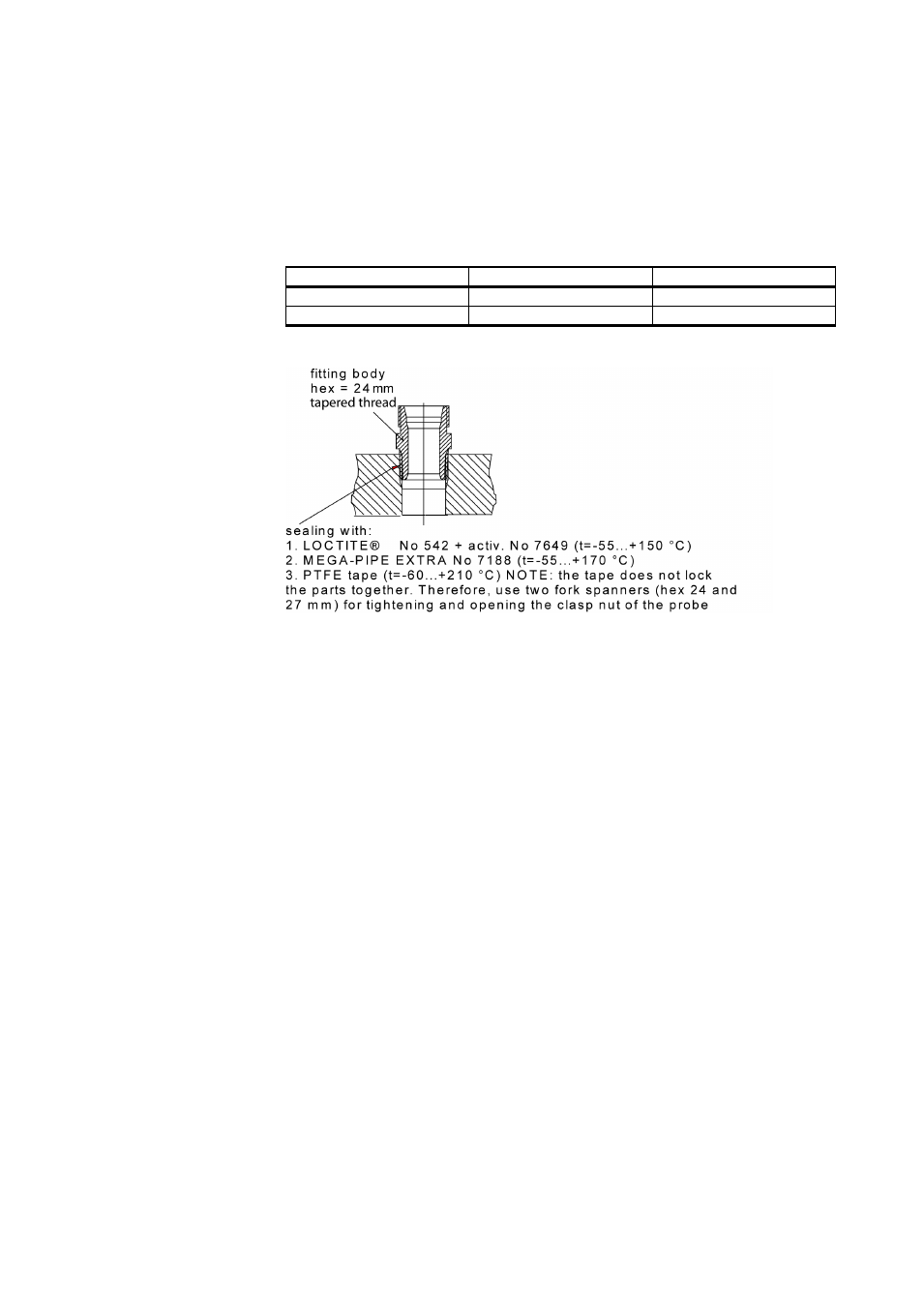

Figure 12

Sealing of Fitting Body into Process

Tightening the Clasp Nut

1.

Adjust the probe to a suitable depth according to the type of

installation.

2.

Tighten the clasp nut first manually.

3.

Mark the fitting screw and the clasp nut.

4.

Tighten the nut a further 50 - 60º (ca. 1/6 turn) with a wrench. If

you have suitable torque wrench, tighten the nut to max 45 ± 5 Nm

(33 ± 4 ft-lbs).
