Dimensions in mm (inches), Figure 21 – Vaisala HMT310 User Manual
Page 94
User's Guide _______________________________________________________________________
94 ___________________________________________________________________ M210619EN-E

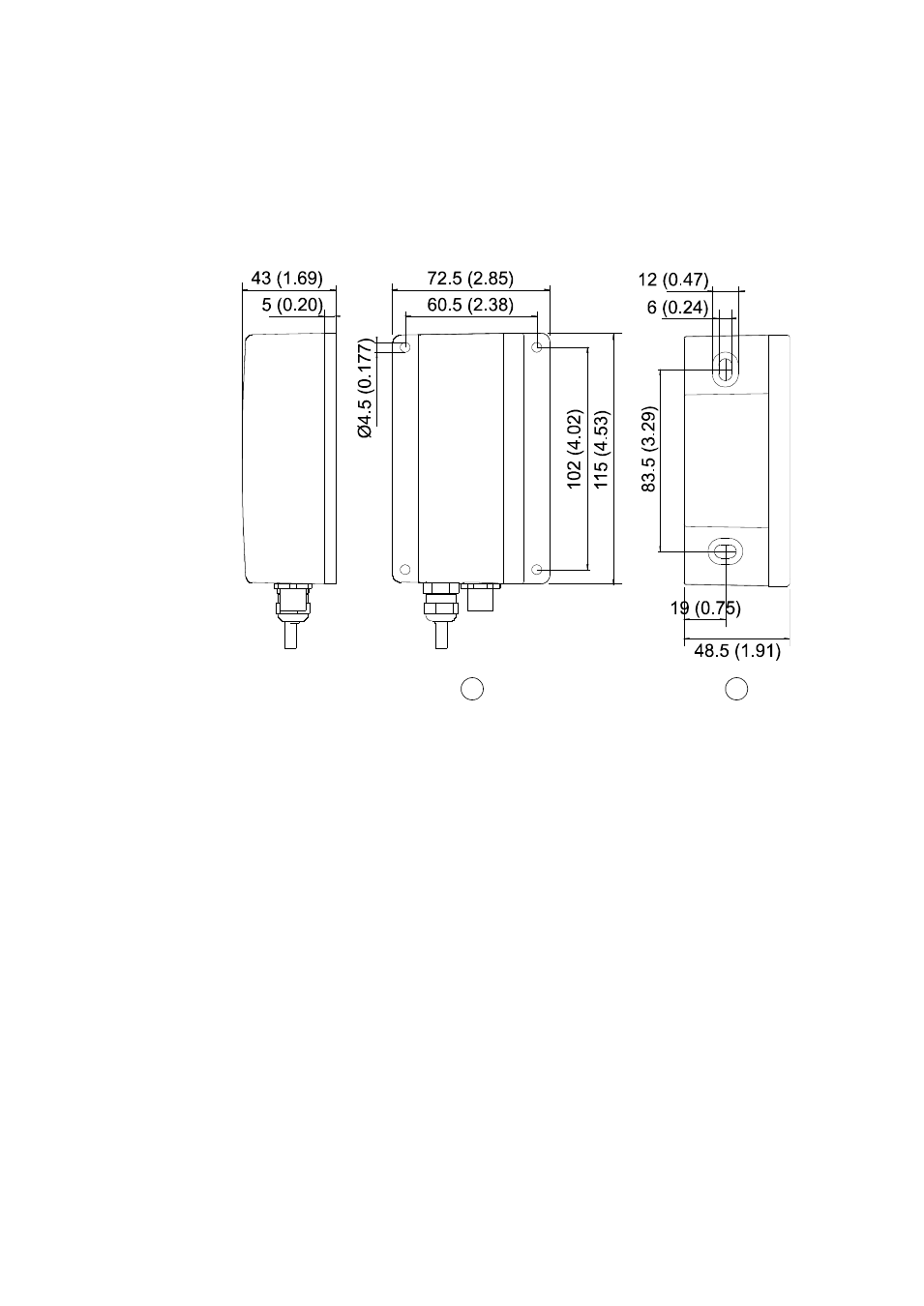

Dimensions in mm (inches)
Transmitter Enclosure and Mounting
Plate Dimensions
0507-049
Figure 21
Transmitter Enclosure and Mounting Plate
Dimensions
The following numbers refer to Figure 21 above. Mounting plate
alternatives:
1 = Wall Plate/Cover, bigger plate with flange
2 = Wall Plate/Cover, smaller plate with no flange
1
2
