Auxiliary Step: Select Head Type (John
Deere vehicles only)

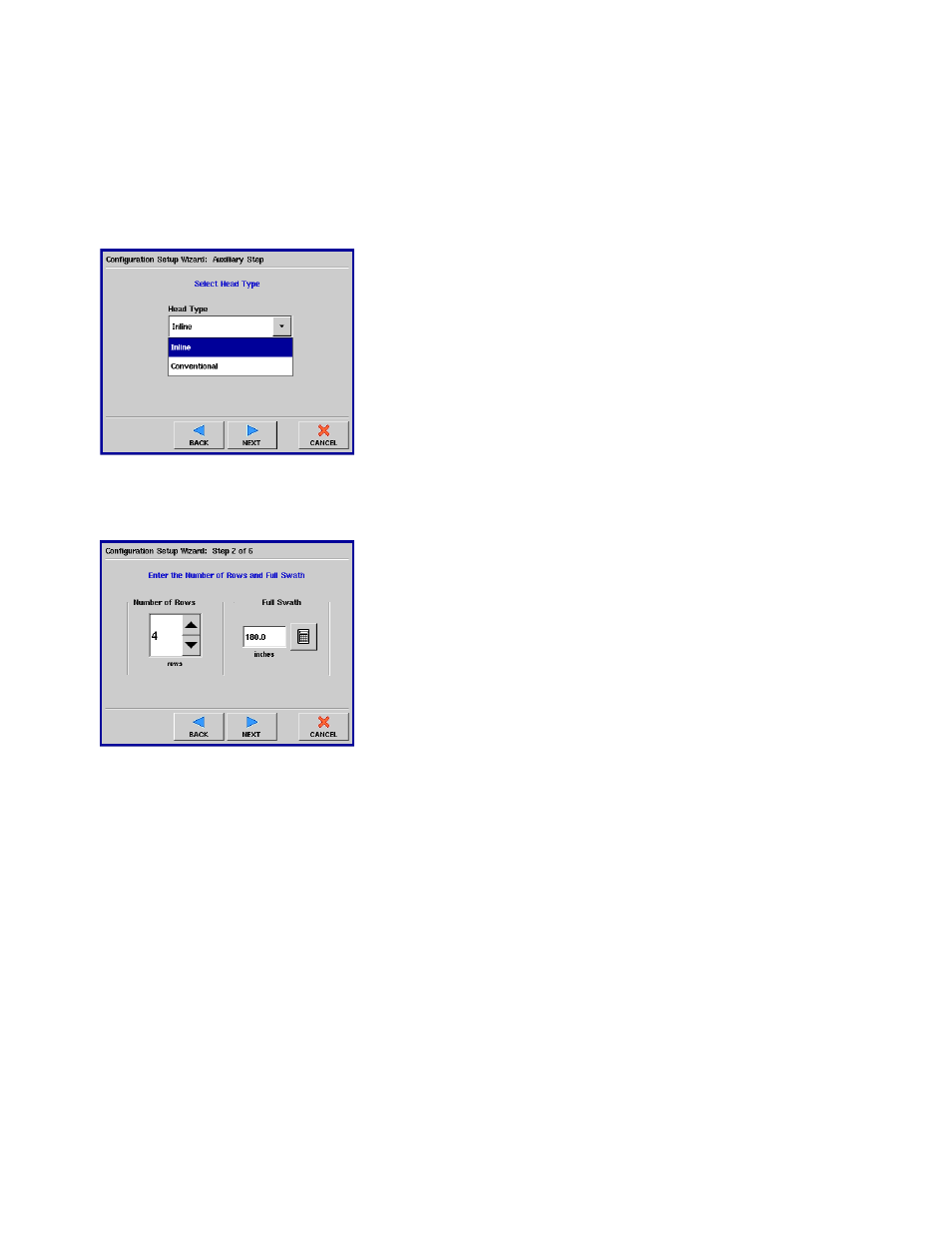

If you have entered in a John Deere make and model, you
will see an auxiliary step of the Configuration Setup Wizard.
Select either the inline or convention header type.
• The Inline head type configures the InSight monitor to
receive data from one sensor per row. Most current John
Deere pickers use this header type.
• The Conventional head type configures the InSight
monitor to receive data from two sensors per row. Some
older John Deere pickers use this head type.
After making your selection, press Next to continue.
Step 4: Enter Number of Rows and Full
Swath
Use the up and down arrows to enter the number of rows;
then use the numeric keypad to enter the full swath width
of the header. Press Next to continue.
