InSight™ User Guide - Cotton Harvest Insert
610
PN: 2002881 Rev.F
R
UN
S
CREEN
O
PERATION
R

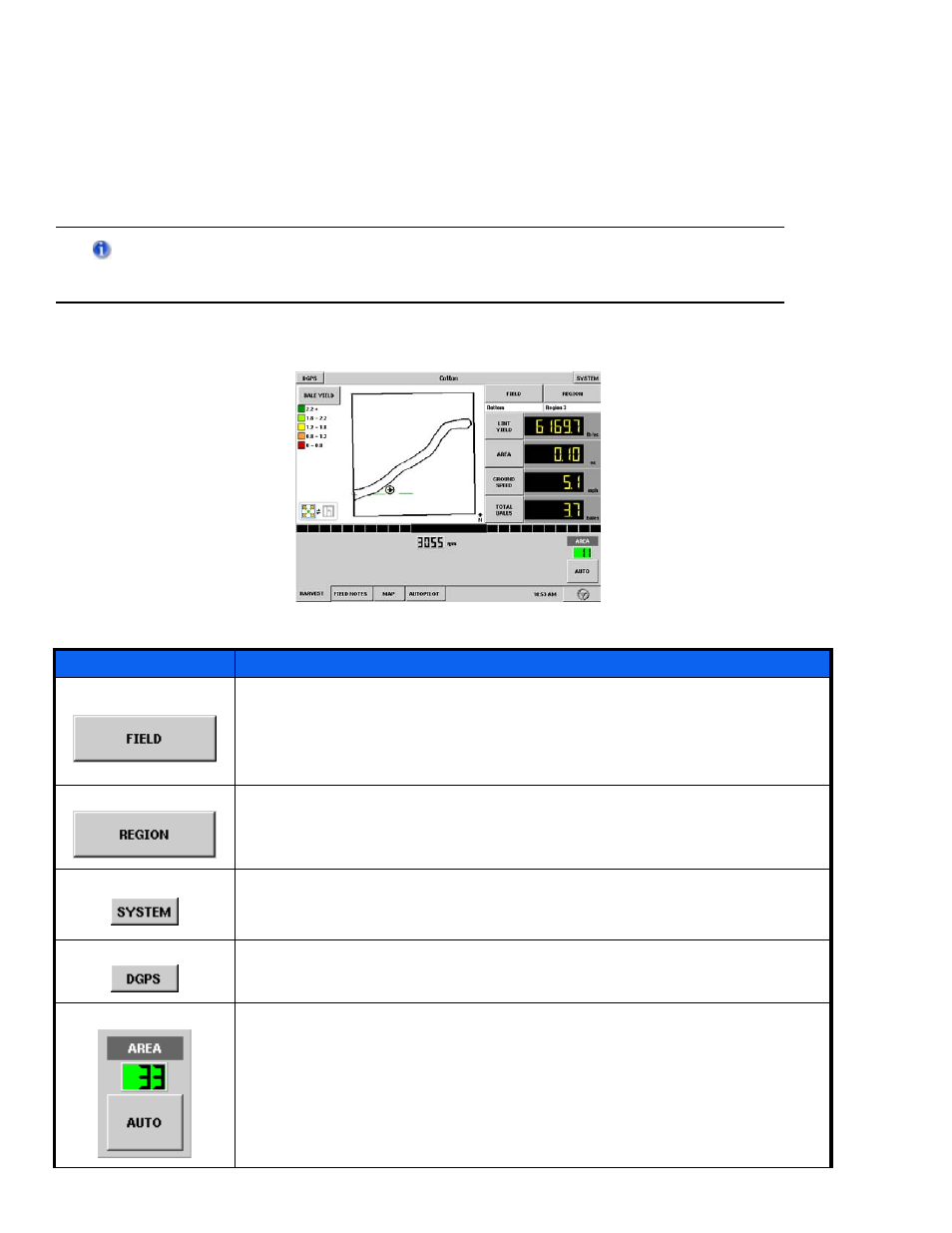

UN SCREEN BUTTONS
You must go to the Field button and accept a field, configuration, crop, and region. For detailed
information, see “Field Button - While Not Logging” on page 613 and “Field Button - While Logging” on
page 618 . For a map of a generalized Run Screen, see “Run Screen Menu Tree” on page 559 .
Settings Description
The Field button allows you to change fields. Press the Field button to view
Field Totals, if logging data. Otherwise if you not logging data, pressing the
Field button will bring up the Field Operation Wizard, which includes the Field
Totals button. For more information, see
“Field Button - While Logging” on
page 618 and “Field Button - While Not Logging” on page 613 .
The Region button allows you to change and name regions of the field, and
track and change varieties. For more information, see
“Region Selection” on
page 615 .
Press to access diagnostic information about the internal memory, display
information, CAN module information, and diagnostic information for harvest.
For more information see
“System Button” on page 624.
Press to display information about the GPS. For more information, see “GPS
Diagnostics” on page 70 .
The master button controls area logging. The number displayed is the position
of the head in the full range of motion that was set during calibration. When
the header is below the set stop height and the switch is set to Auto, the box
will be colored green and the area will be recorded. When the header is above
the set stop height and the button is set to Auto, the box will display the color
red and the area will not be logged.
