InSight™ Firmware Version 6.0

583

PN: 2002881 Rev.F

C

ONFIGURATION

S

ETTINGS

To access the Configuration Settings window, first highlight a configuration in the list and then press the
Configuration Settings button.

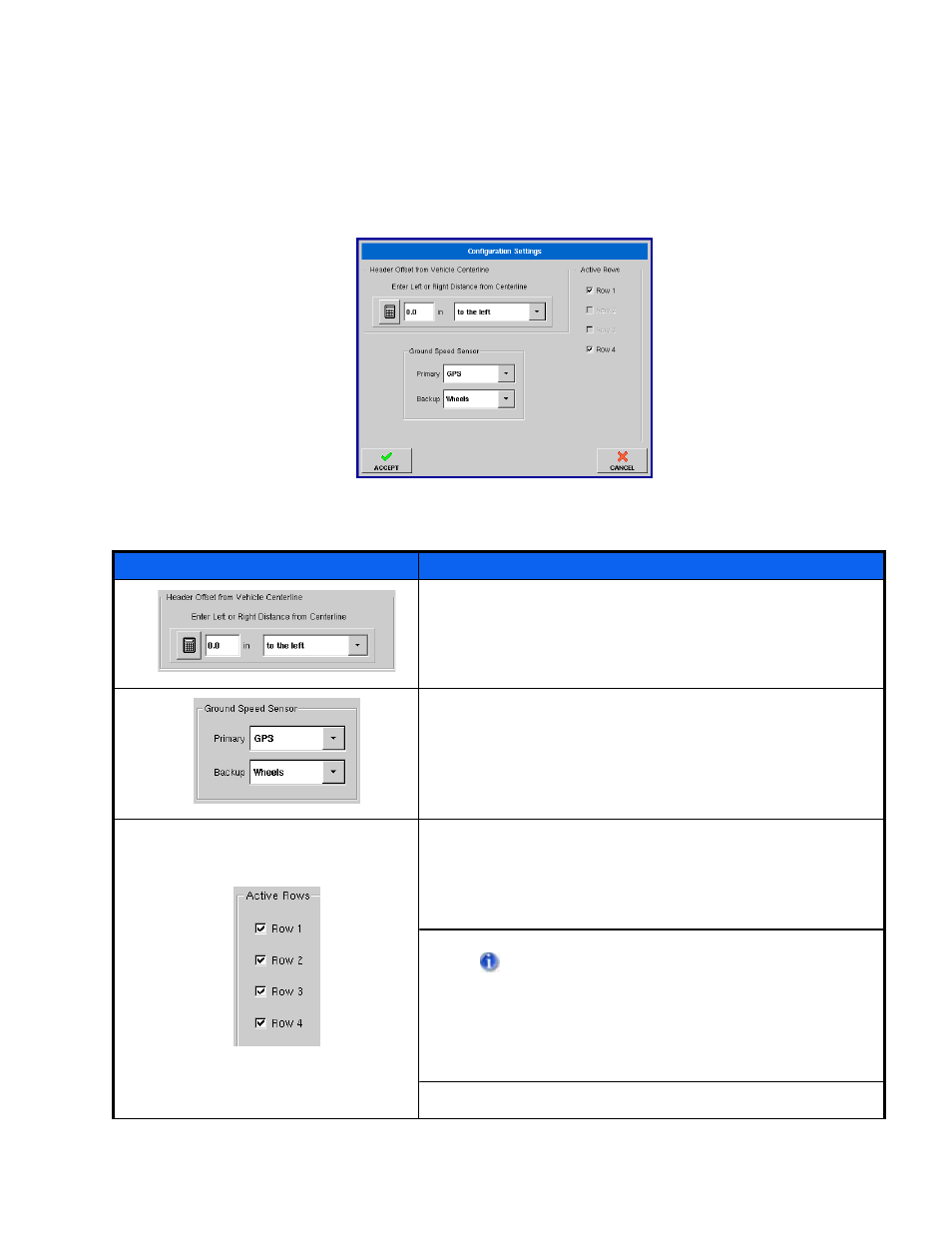

Configuration Settings window

Setting

Description

The Header Offset shows the distance between the
centerline of the vehicle and the center of the header’s
swath. To change these settings, use the numeric keypad to
enter this distance, then use the drop-down menu to enter
the direction.

The Ground Speed Sensor area shows the primary and
secondary ground speed source.

The Active Rows area shows which rows are equipped with
sensors. If you wish to change these settings, press the
checkboxes that correspond to the number of sensors in your
configuration. In the example at left, the operator has
selected four sensors on four rows.

In order to log data on the Run screen, you must

specify the correct sensor configuration. Otherwise, when

you attempt to set up an operating configuration at the

Run screen’s Field Operation Wizard, you will see an error

message stating that “The cotton flow sensor

configuration does not match the active picker.”
