InSight™
User Guide - Cotton Harvest Insert
592
PN: 2002881 Rev.F
C
ALIBRATING
T
HE
H
EADER
S
ENSOR
Prior to logging cotton data, you must calibrate the header sensor. Crops must be set up within the
system to proceed with the calibration routine. Select the correct header from the list and press the
Calibrate Header Sensor button, located on the Picker Tab.

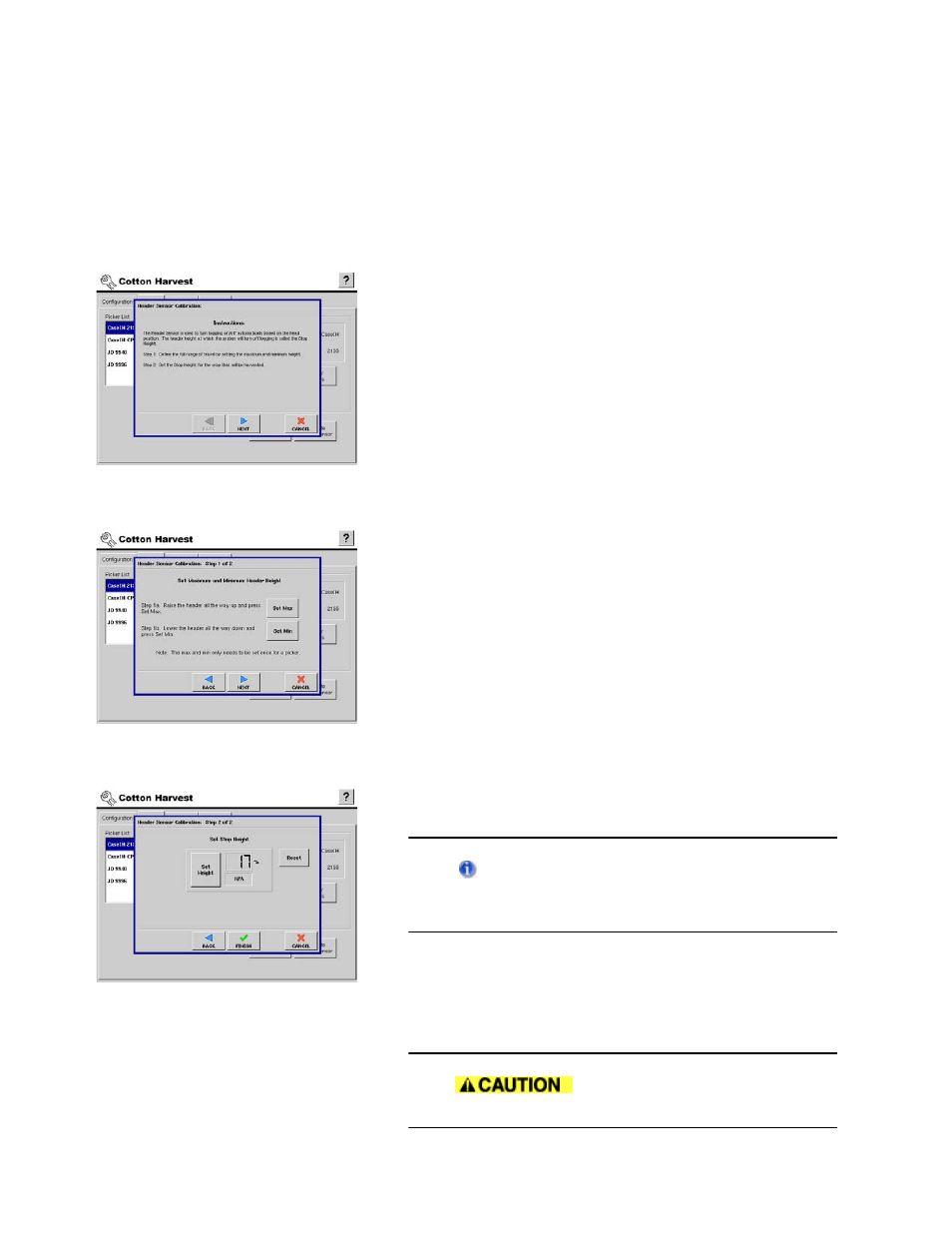

Step 1: Read Instructions
Read the header sensor calibration instructions fully
before proceeding.
Press Next to start the calibration process.
Step 2: Set Max and Min
Maximum and minimum header height settings.
1. Raise the header all of the way up and press Set Max.
2. Lower the header all of the way down and press Set
Min.
This determines the full operating range of the header.
Press Next to continue.
Step 3: Set Stop Height
Raise or lower the header to the height where you
would like to have the area logging turn on and off.
Press Set Height.
The position relating to the Stop Height will be
represented as a percentage. (17% in the example to
the left).
Move the header above and below the Stop Height.
When below the Stop Height the dialog will indicate
Down, when above the Stop Height the dialog will
indicate UP.
To clear Min, Max, and Stop Height, press Reset.
If Reset is pressed, the sensor will
have to be calibrated!
