Adding a new configuration (continued) – Ag Leader InSight Cotton Harvest Insert Ver.6.0 Users Manual User Manual
Page 10

InSight™
User Guide - Cotton Harvest Insert
582
PN: 2002881 Rev.F
A
DDING
A
N
EW
C
ONFIGURATION
(C
ONTINUED
)

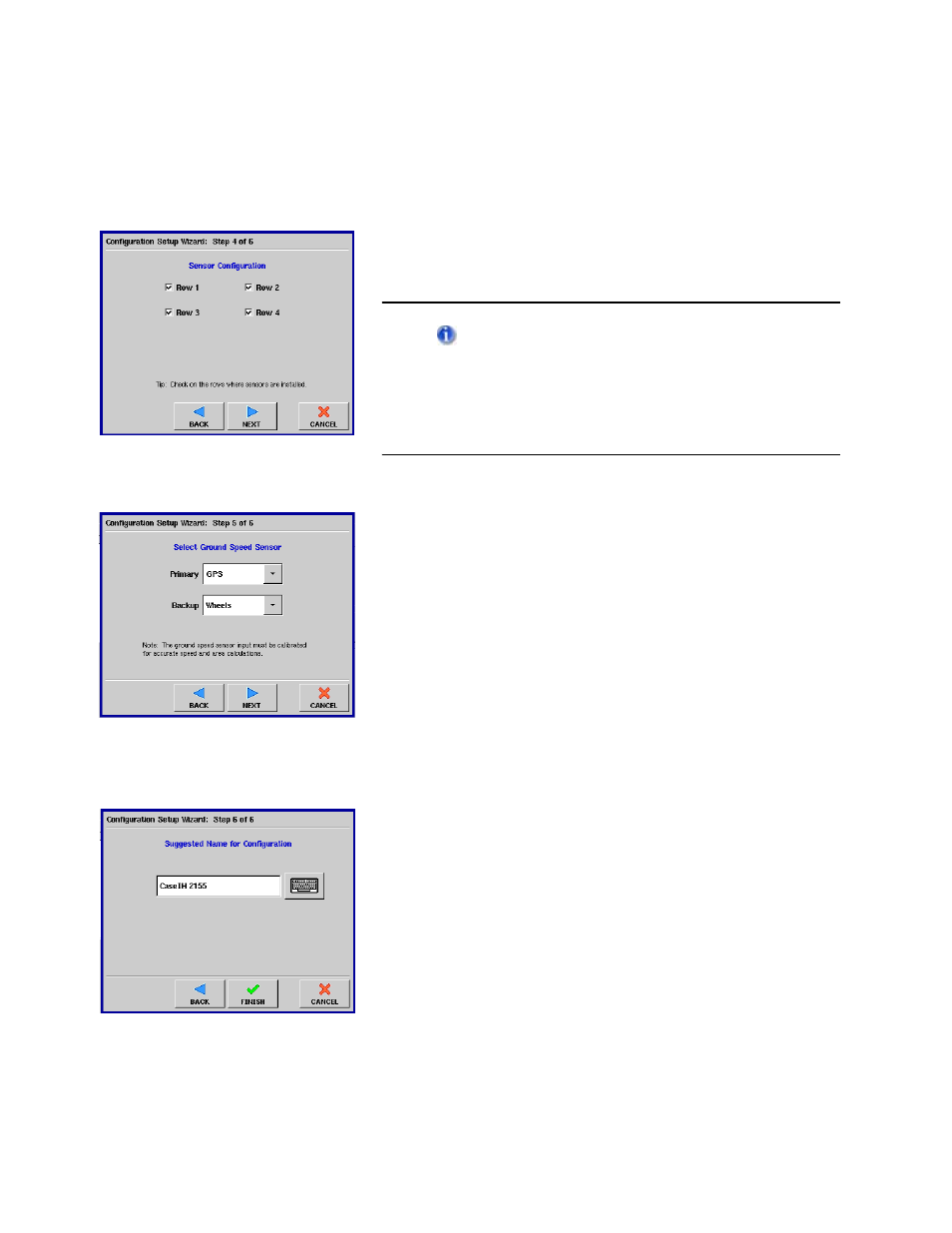

Step 6: Enter Sensor Configuration
The Sensor Configuration Window appears, showing the
rows being harvested. Press the checkboxes that correspond
to your sensor configuration. In the example at left, the
operator has selected four sensors on four rows.
In order to log data on the Run screen, you must
specify the correct sensor configuration. Otherwise, when
you attempt to set up an operating configuration at the
Run screen’s Field Operation Wizard, you will see an error
message stating that “The cotton flow sensor
configuration does not match the active picker.”
Step 7: Enter Ground Speed Source
Select the ground speed source. If you will be using GPS as
the primary you will need to select a secondary source. Press
Next when finished.
Step 8: Enter Suggested Name for
Configuration
Use the default name or enter in a new name for the
configuration.
Press Finish to complete the configuration process.
