Using Event Analyzer
WVP Event Analyzer Plug-in User Guide V01 – 536989-001
- 64 -
4-9 Owner-Subsystem – Hour of Day
This section provides an explanation of the ‘Owner-Subsystem – Hour of Day’ drilldown screen. The
‘Owner-Subsystem – Hour of Day’ view is an option on the drilldown menu of the ‘Hour of Days’
(month drilldown) screen. It lists the event counts for a chosen hour and day, segregated by owner-
subsystem.
4-9-1 Overview
The ‘Owner-Subsystem – Hour of Day’ screen is reached upon drilling down from the “Month
Drilldown – Hour of Days” numbers (
section 4-5 of the user manual). It is essentially the same
screen as the ‘Owner-Subsystem’ except this is per hour of the day while the former is for all 24
hours.
[Back to TOC]
4-9-2 Description

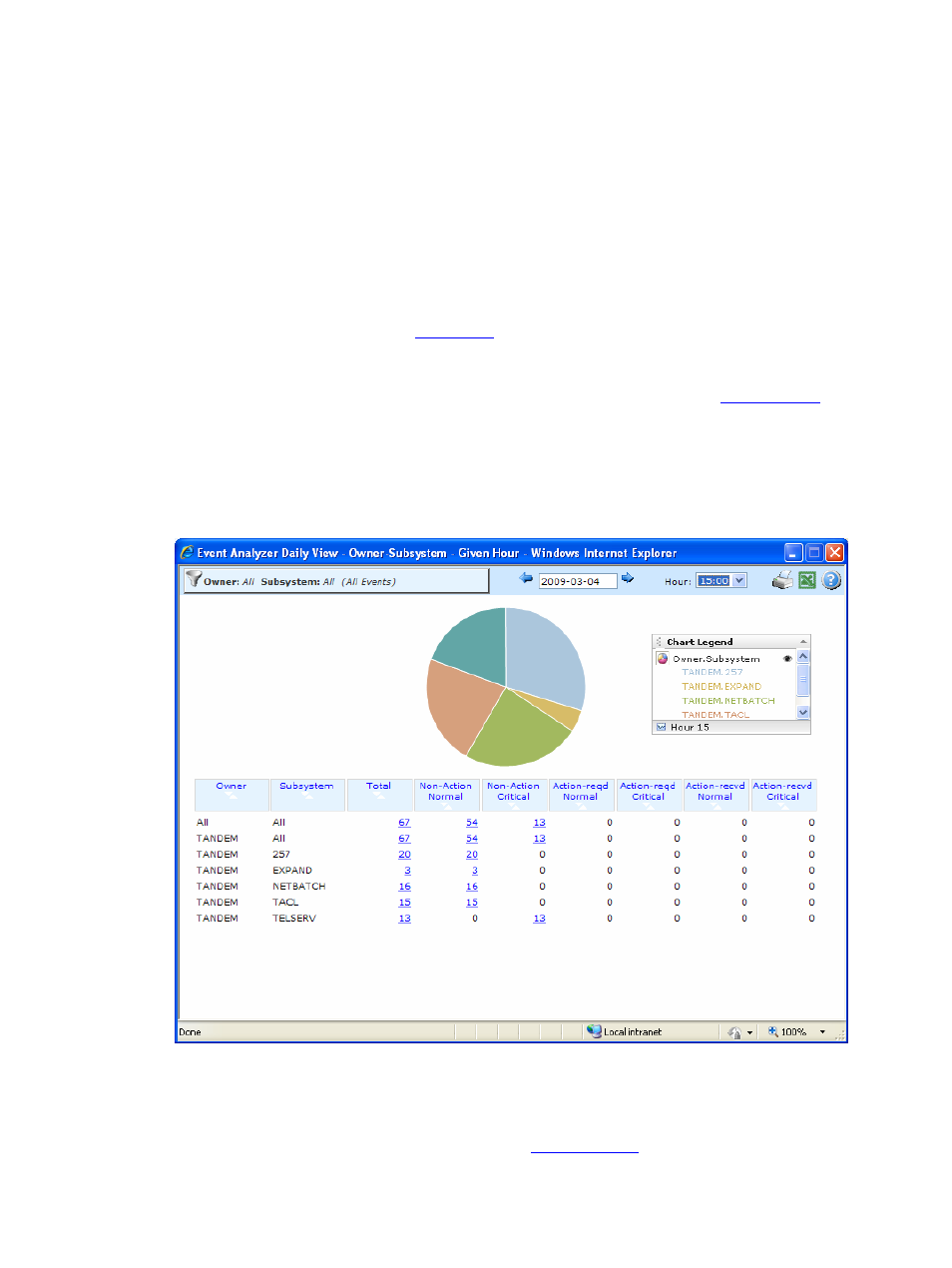

Figure 51 Owner-Subsystem – Hour of Day
This view shows the events grouped by owner and subsystem. The day selection control is located to
the top right corner of the screen. You can use the arrows to go back and forth or click within the field
to bring up the calendar. Next to it is the hour selection dropdown. The toolbar on the left is the
standard owner-subsystem-event # filter explained in
section 1-1-4-2 (Toolbars) of this user manual.
