Using Event Analyzer
WVP Event Analyzer Plug-in User Guide V01 – 536989-001
- 61 -
4-8 Day Drilldown – Owner-Subsystem
This section provides an explanation of the ‘Owner-Subsystem’ drilldown screen. The ‘Owner-
Subsystem’ view is an option on the day drilldown. It lists the event counts for each hour of the
chosen day, segregated by owner-subsystem.
4-8-1 Overview
The ‘Owner-Subsystem’ screen is accessed from the main screen (yearly grid) by clicking on the
day cell. It appears as the second menu item in the drilldown menu that shows up.
[Back to TOC]
4-8-2 Description

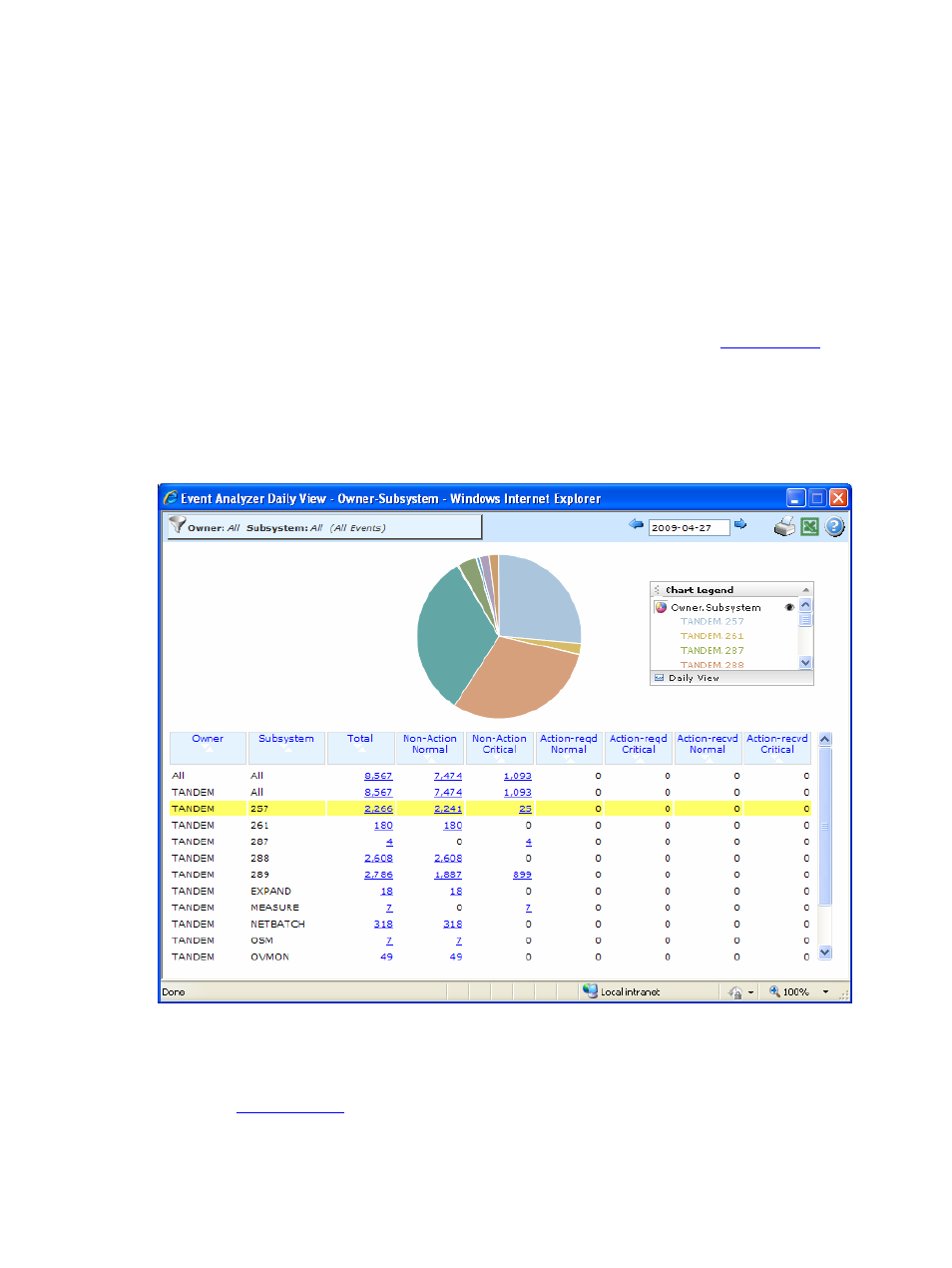

Figure 48 Day Drilldown – Owner-Subsystem
This view shows the events grouped by owner and subsystem. The day selection control is located to
the top right corner of the screen. You can use the arrows to go back and forth or click within the field
to bring up the calendar. The toolbar on the left is the standard owner-subsystem-event # filter
explained in
section 1-1-4-2 (Toolbars) of this user manual. This filter is used to display events for a
particular owner-subsystem, or a particular owner-subsystem-event # or an application.
The chart type is a pie chart. Accompanying the chart is a chart legend, which shows for each section
of the pie, the name of the section as well as the color it is identified by in the chart. This legend
