Using Event Analyzer
WVP Event Analyzer Plug-in User Guide V01 – 536989-001
- 49 -
4-3-2-2 Selection
There are two levels of filters on the events. The first one is on the owner-subsystem-event # or
application (group of owner-subsystems). This filtering is done through the button on the top left
corner:

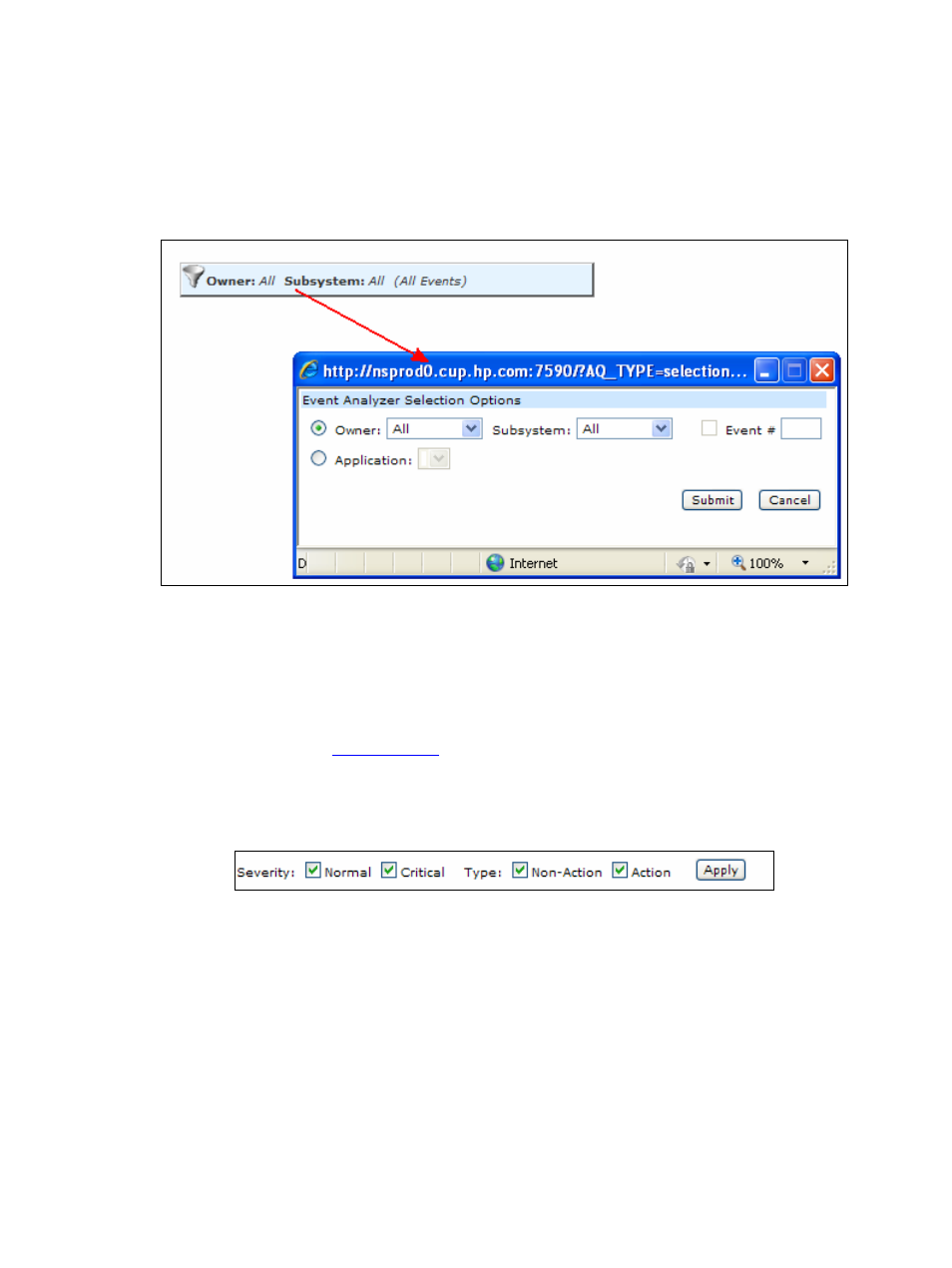

Figure 31 Owner-Subsystem-Event# / Application Selection Window
This filter is used to display events for a particular
owner-subsystem
owner-subsystem-event #
application (group of owner-subsystems)
The screen is explained in
(Toolbars) of this user manual.
The other filter is based on the severity or type of the event:
Figure 32 Event Severity Filter
Changing this selection and clicking ‘Apply’ will refresh the grid and show only those events that pass
through the filter.
Note: It is required to select at least one of either ‘Normal’ or ‘Critical’ and one of either ‘Non-Action’
or ‘Action’ else no data can be displayed. For example, the screenshot below shows the result of
choosing to see only Action events:
