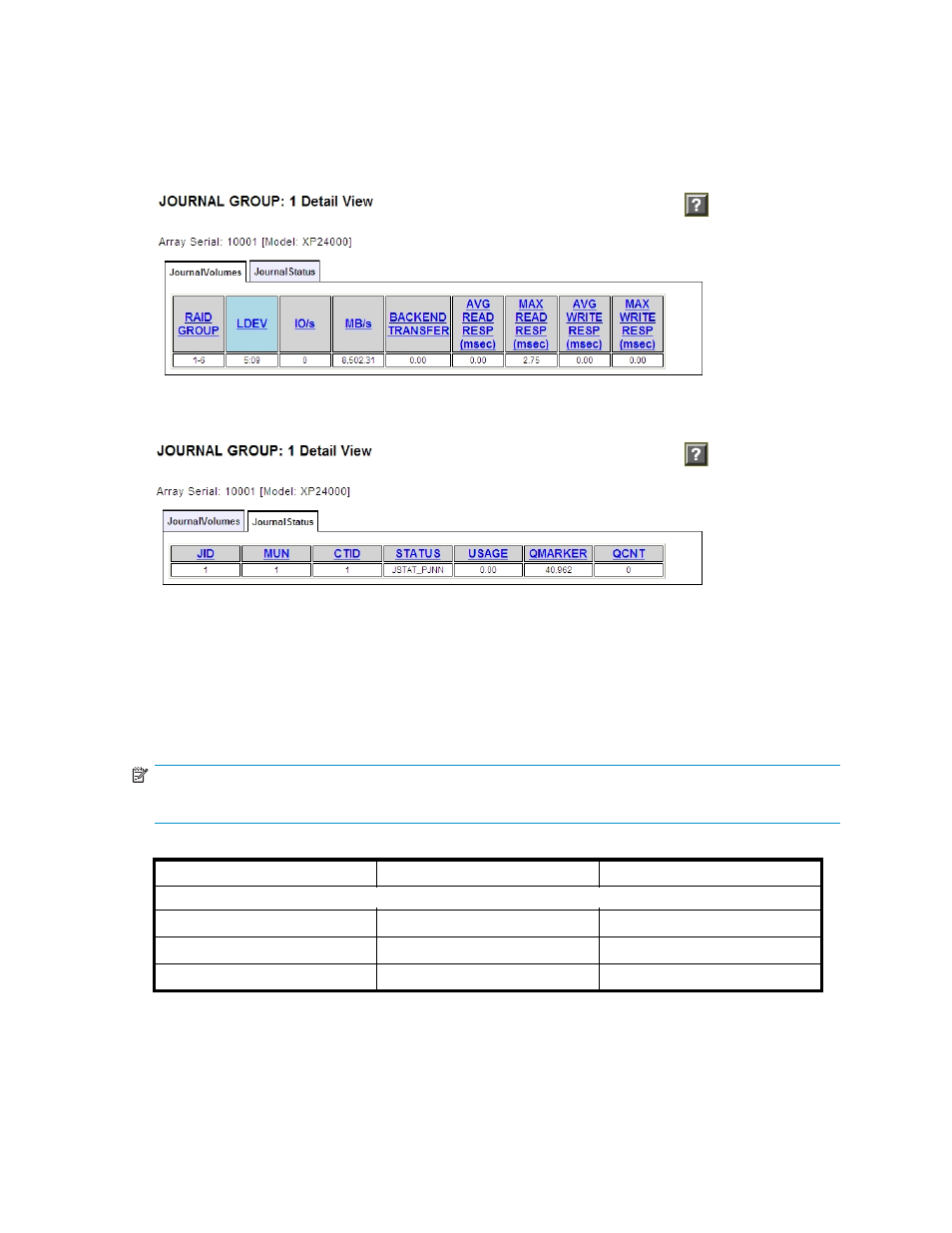

Continuous Access Journal Group detail view

Double-click a Journal group volume ID in the Jrnl Grp column to open the Journal Group Detail View

screen, as shown in

Journal Group detail view

and

Journal Status

. A list of LDEVs configured in the

Journal volume displays; a maximum of 16 LDEVs display.

Figure 13 Journal Volume

Figure 14 Journal Status

Array mapping

To correctly map the ACP and CHIP pairs for your specific array, use the information in the following

tables:

Table 4

lists 1 ACP pair for disk array XP48/128.

NOTE:

The cards are lettered A-M, omitting I.

Table 4 XP48/128 (1 ACP Pair)

B, L

ACP Pair 1

ACP B = 0; L = 4

C, G

CHIP Pair 1

Chip C = 0; G = 4

D, J

CHIP Pair 2

Chip D = 1; J = 5

F, K

CHIP Pair 3

Chip F = 2; K = 6

Table 5

lists the 2 ACP pairs for disk array XP48/128.
