14 Charts
Introduction
Use the Charts screen in Performance Advisor XP (PA XP) to view the metrics of the array components in a
chart format. You can compare the array components based on and within the following categories:
• IO Metrics
• MB Metrics
• Utilization Metrics
• Backend Metrics
• Response Time Metrics
as shown in
Charts screen .
Charts are especially useful to compare similar components of different arrays, to determine
performance and observe trends

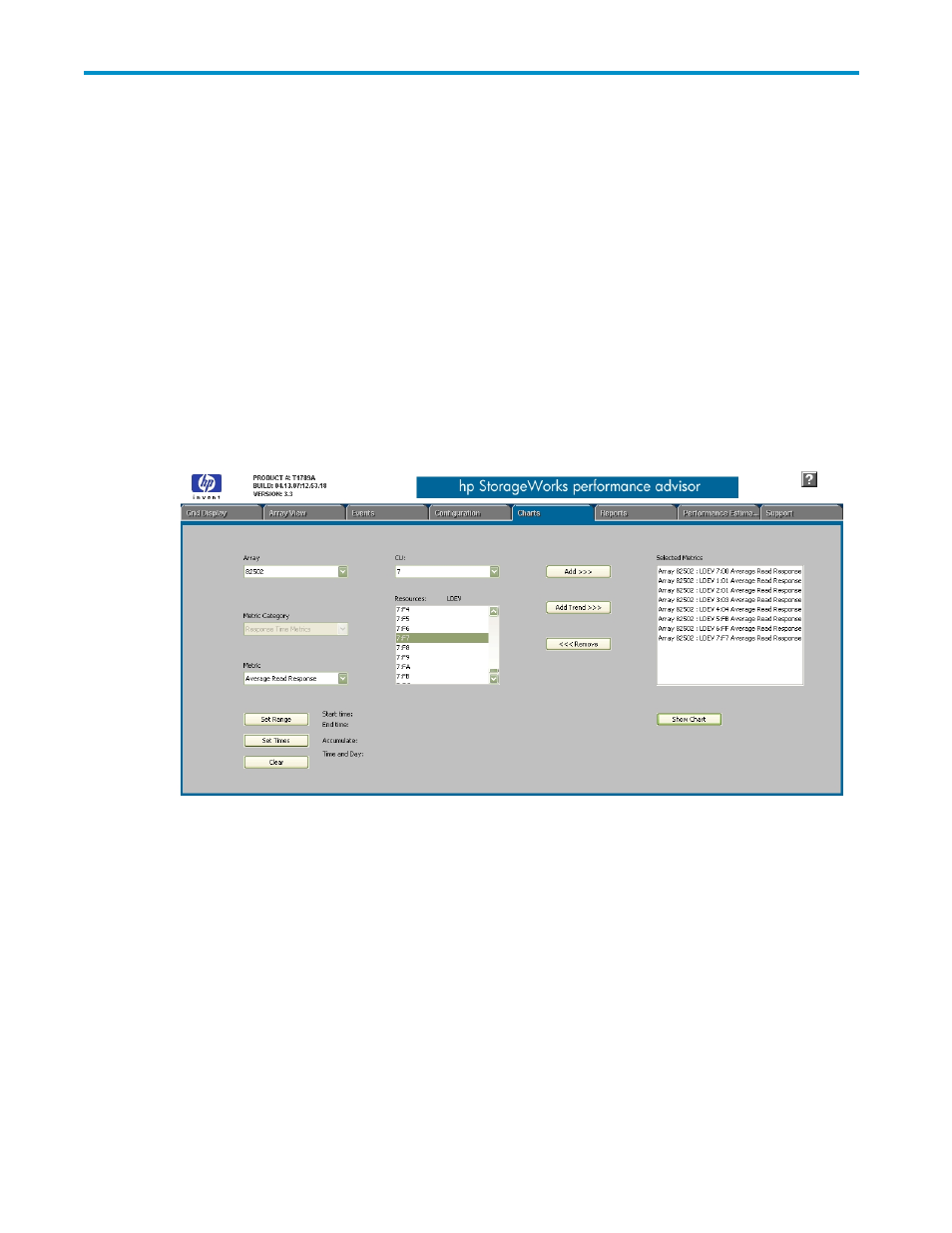

Figure 45 Charts screen
Using the Charts screen
The Charts screen contains drop-down menus to select the information for your chart.
To use the Charts screen, complete the following steps:
1. In the Array/Group drop-down menu, select the customized group or array from which you want to
gather data. You can create customized groups in the Groups screen. Typically, groups contain
specific metrics, such as invalid ACP pairs. For more information, see Working with groups .
2. In the Metric Category drop-down menu, select the category for which you want information.
3. Use the Metric drop-down menu to refine information for a metric. For example, to view the total
input-output operations on LDEV performance, select LDEV Total IO.
