NOTE:

If a chart is not produced after you click Show Chart, the time lines of the selected metrics might not

align. In other words, it is possible that old data values (for example, values from one week ago) are not

aligning with new data values (for example, values from yesterday). Other possible causes are that no

data was collected for the time specified, or that data was not collected from the DKC. Check the Java

Console for messages. Click View, and then click Java Console in your browser.

Viewing data

When you click Show Chart in the Charts screen, information is retrieved from the database based on

your specifications and appears in graphical format in the Performance History screen as shown in

Performance History screen

.

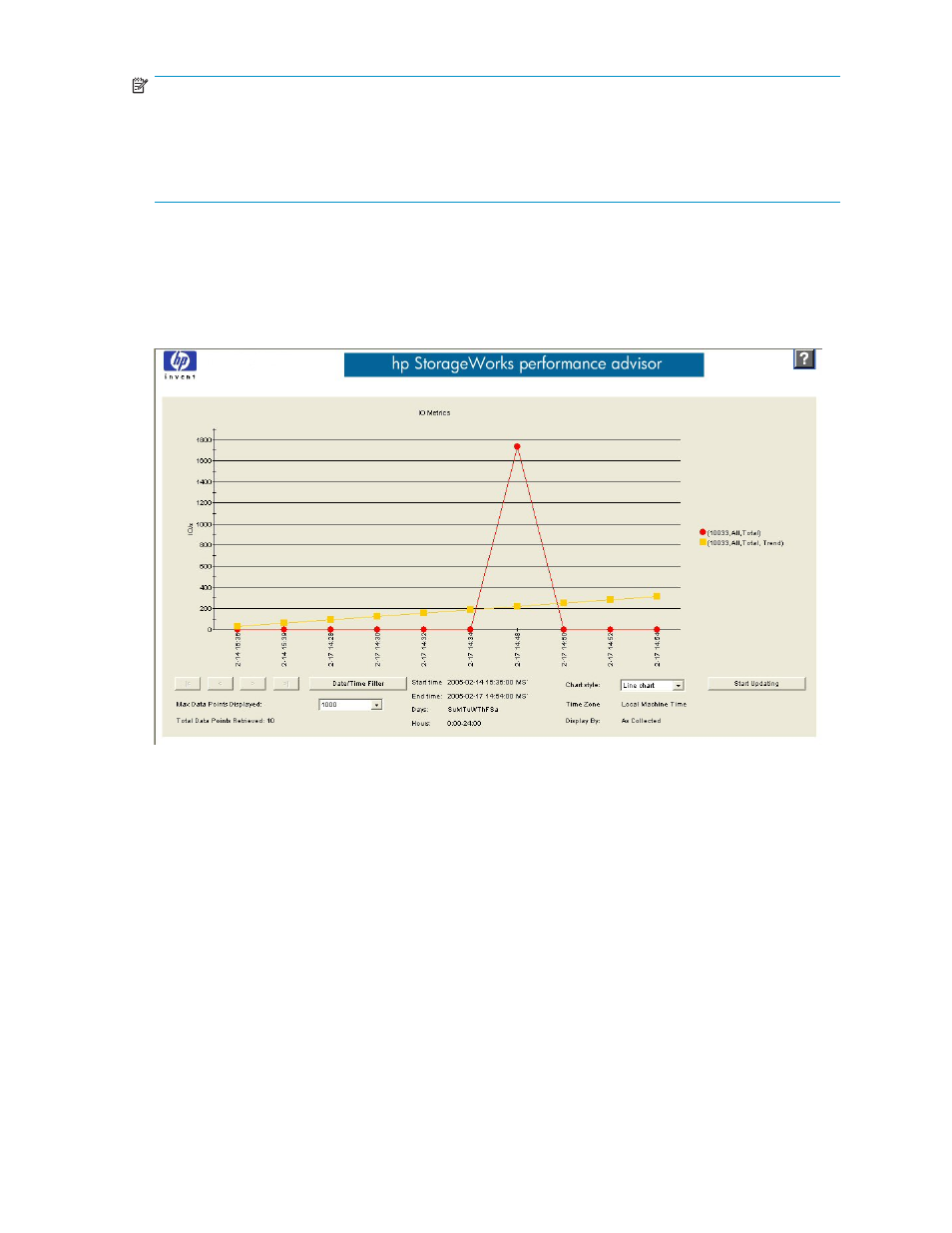

Figure 48 Performance History screen

The Performance History screen shows a graph of 10 sets of data for the metric(s). The graph displays all

available data if fewer than 10 collection periods have occurred. A maximum of 1000 data points are

displayed even if the selected time range contains more than 1000 data points.
The color of each line in the chart is defined in the legend located to the right of the chart. The metric(s)

displayed vary depending on your selection in the Charts screen.

Using the Performance History screen

The following buttons below the graph extend your viewing options:

Back/Forward: Use these four buttons to display data points that are not currently displayed

on the chart. These buttons become available when the total data points retrieved exceed the

maximum data points displayed setting.

Date/Time Filter: Click this button to open a calendar and select the start and end times for the

data that you want displayed. A maximum of 1,000 records can be returned even if more data is

available. Use this screen to enter the date and time to display the desired data. Click OK to set

the start and end times, or click Cancel to delete any changes.
