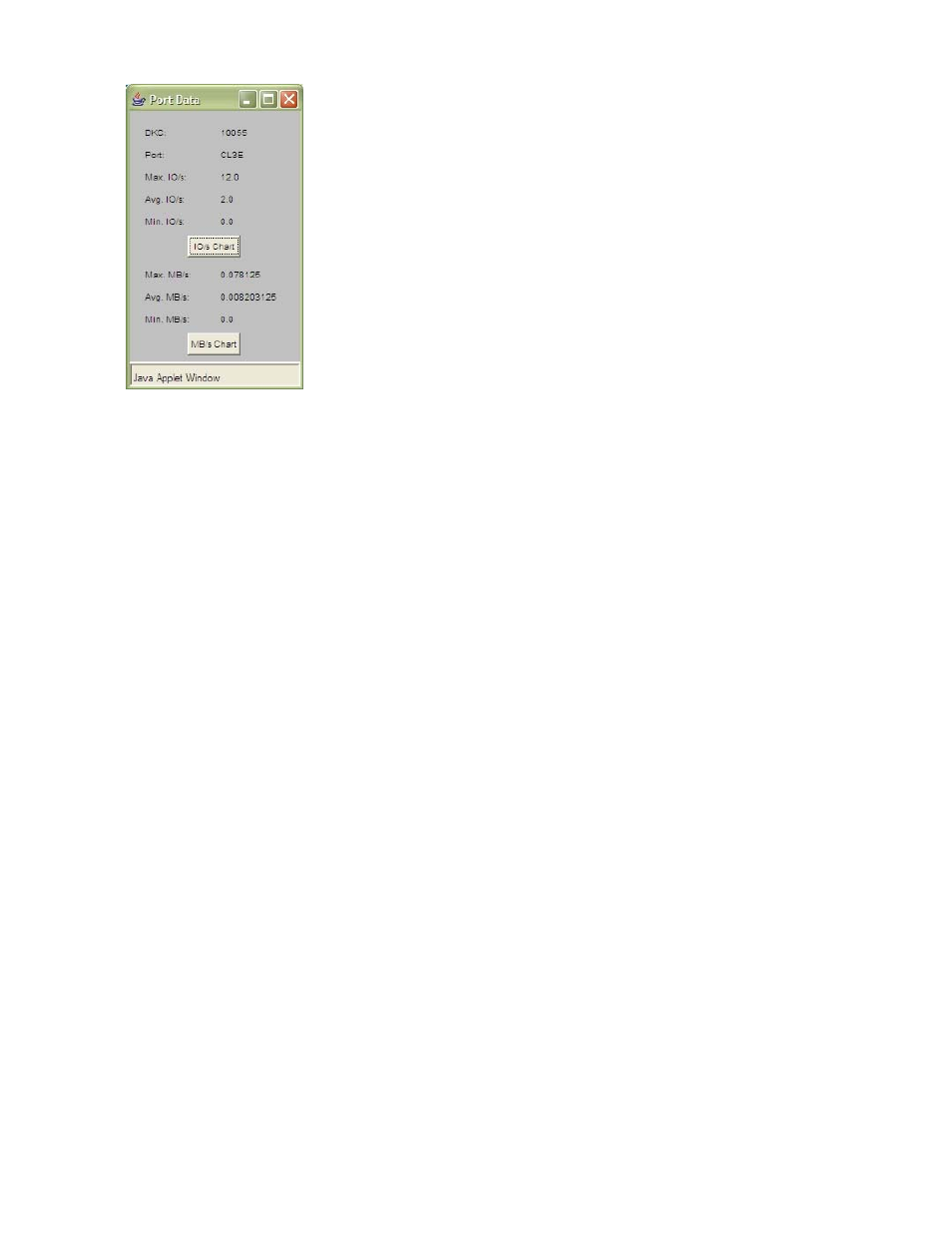

Figure 6 Port Data dialog box

Click IO/s Chart or MB/s Chart to display the Performance History screen. You can view the data in any

of the following Chart Style from the drop-down menu:

bar chart

line chart

stackable chart

The Grid Display screen will not display hot links for concatenated ACP pairs in the ACP Pair ID and

ACP Pair Util fields. Hence no chart for the same can be created.

Table 3 Grid Display screen drop-down menus

Drop-down Menu

Description

Show Array

Shows a specific array or all arrays.

Show Host

Shows a specific host or requested hosts.

Show RAID Group

Enter the physical location of the drive.

Show Host Group

Shows a specific host group or all host groups.

Show CHP Port

Shows a specific CHP Port or all ports.

Show ACP Pair

Shows a specific ACP pair or all ACP pairs.

Show Volume Group

Shows a specific volume group or all volume groups.

Show LUSE

Shows a specific LUSE or all LUSEs.

Show SLPR Group

Shows a specific SLPR group or all groups.

Show CLPR Group

Shows a specific CLPR group or all groups. The Grid Display

screen displays only those CLPRs that have Parity Groups

assigned to them.

Show Journal Group

Shows a specific Journal Group or all groups.

Display Type

Shows the display type, whether mainframe, open systems, or

both. This feature is enabled only when the data that you are

collecting is a mixture of mainframe and open systems.

Summary by

Provides an overall summary of each RAID group or port on a

given array. See the section below for more information about

this menu option.
