4 RUNTIME USER WINDOWS
In measure mode the screen is always divided into two parts.
•
The Status Window at the bottom of the screen
•
The Runtime User Window which is above the Status Window
Function keys control the Runtime User Windows. At the bottom of the Status Window the possible
functions are showed for the particular Runtime User Window.

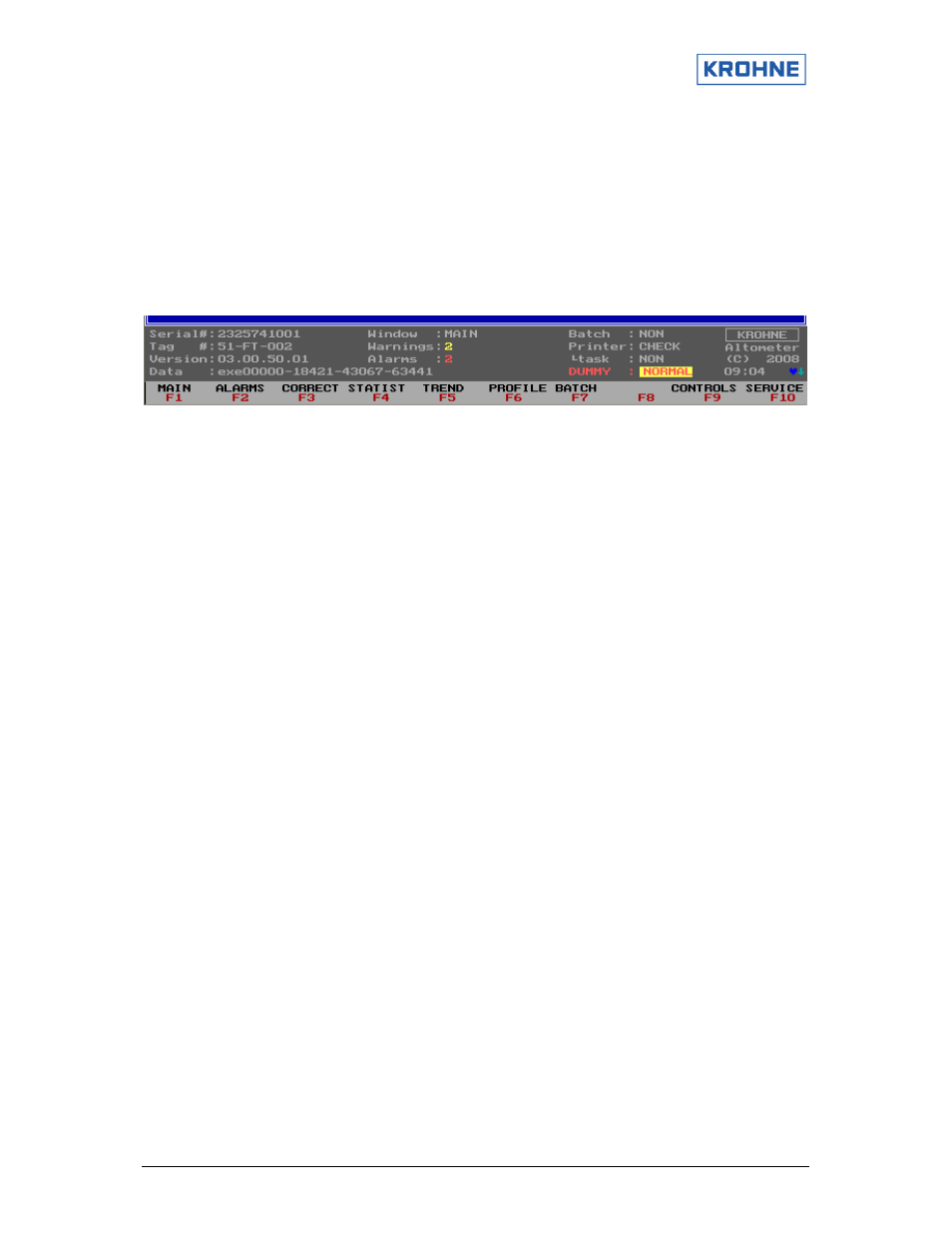

The status window:
It shows:
•
Serial # : Serial number assigned by KROHNE Altometer
•
Tag # : Tag number that can be defined by the user
•
Version : Software version number
•
Data : CRC-checksum for the executable and of the 3 data sets (UFS, UFP, and DAT).
This can be a first check for the data integrity (every change in a data set changes
the checksum of that data set).
If the CRC-checksum of the executable (program) is 00000 as above the executable
is either not certified or the data integrity is corrupted. Either way it is advised to load
a new program executable.
Details can be found under F10 Service, F9 CRC-Data
• Window : The name of the Runtime window showing above
•
Warnings : Number of actual warnings, details can be found in the Alarms window (F2)
•
Alarms : Number of actual alarms, details can be found in the Alarms window (F2)
The following items are only shown if the batch mode is enabled in the initialisation file CLNT0300.dat
•
Batch : Batch status
•
Printer : Printer status
•
Task : Print task
For more details on Batch mode see chapter 6.
On the bottom the F1…F10 keys represent the possible options available by using these function
keys
