GSP-730 User Manual
60

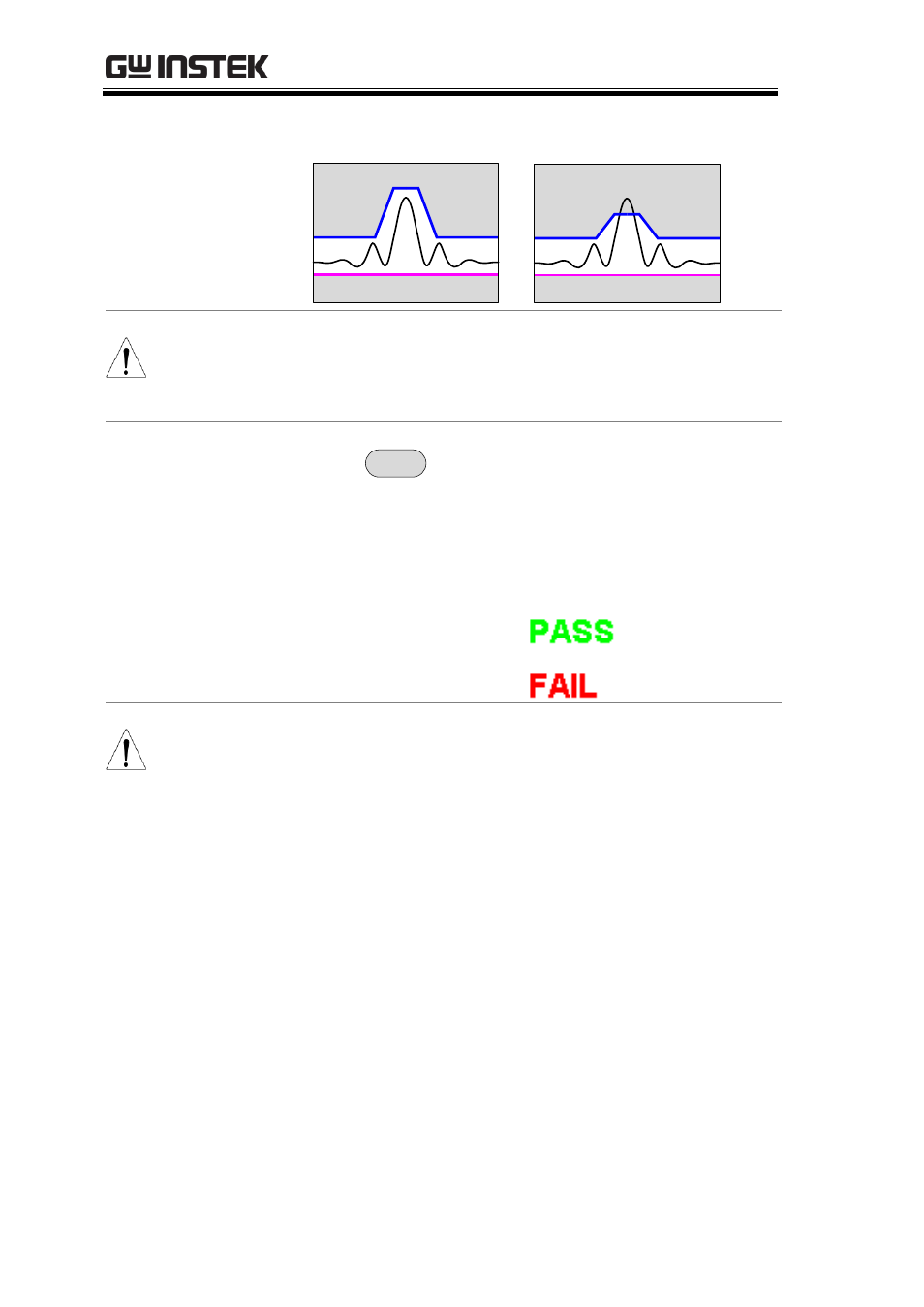

Pass:
Upper limit
Lower limit
Fail:
Upper limit
Lower limit
Note
Before pass/fail testing can begin, limit lines for
the upper and/or lower limits must first be
saved and activated. See the page 57.
Operation 1. Press
Limit Line
>Pass/Fail[F4] to turn the testing on
or off.
2. The test result is updated in real-time at the
bottom of the display.
Pass:
Fail:
Note
At least one limit line (high or low) must be turned
on to enable testing.
If only high limit line is on, each trace point has to
be lower than the high limit line to get a PASS
judgment, otherwise get the judgment will be FAIL.
Conversely, if only low limit line is on then each
trace point has to be higher than the low limit line
to get a PASS, otherwise get the test will be judged
a FAIL.
