GSP-730 User Manual

58

Creating a Limit (Point by Point)

Description

Create a limit manually, point by point. Ten
manually selected frequency points can be used
to create the upper or lower limit line.

Operation

1. Press

Limit Line

> Limit[F1] and select the limit line

you wish to edit.

Limit:

High, Low

2. Press Edit Table[F2], and turn the edit table on.

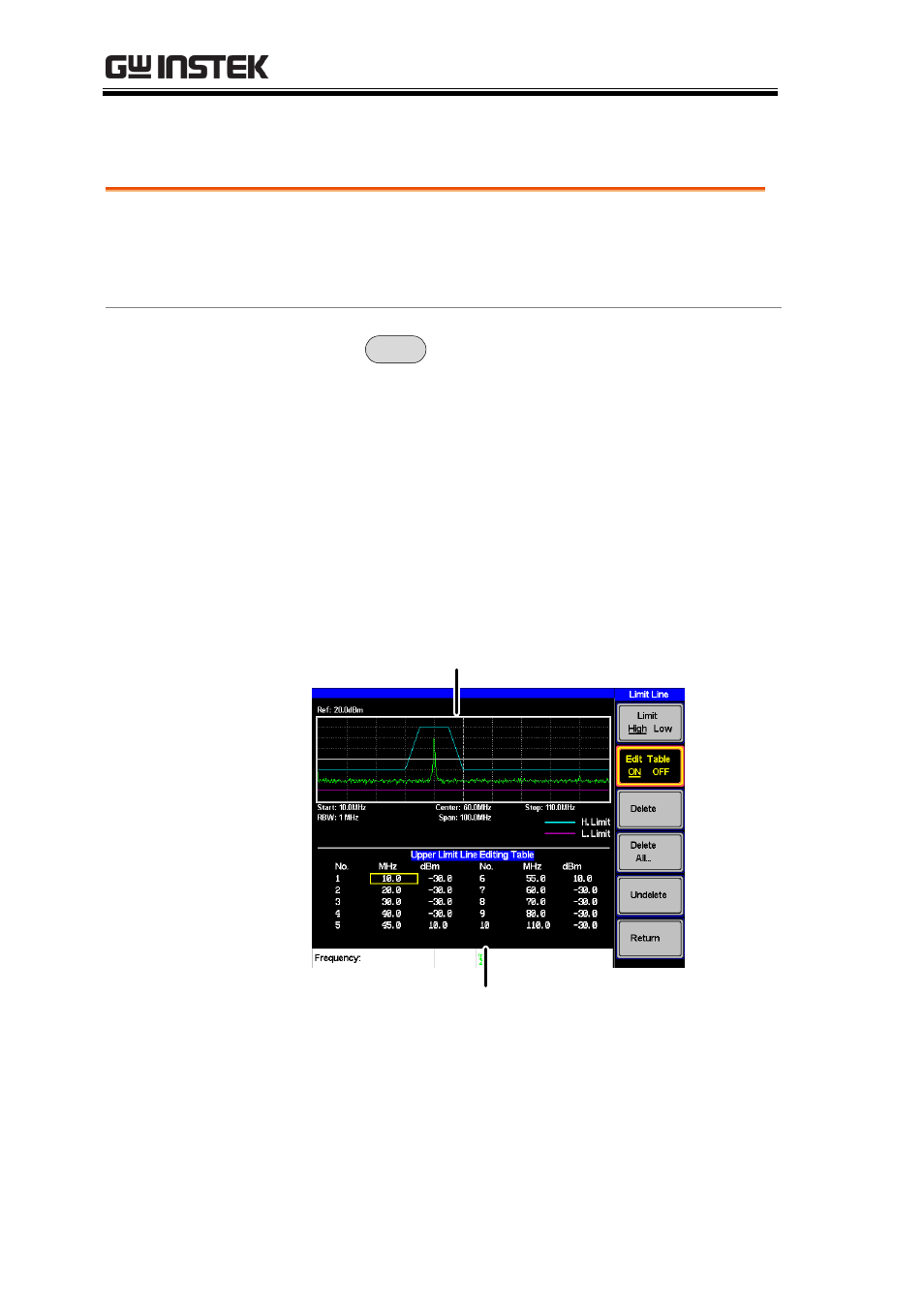

The GSP-730 is split into two screens. The top
screen shows the trace and the selected limit
line (high or low) and the bottom screen shows
the limit line table.

Spectrum display

Limit Line Table

All 10 points will be displayed in a limit line
table at the bottom of the display. By default,
each point is set to 0dBm.

3. Use the arrow keys to move the cursor to the
