GSP-730 User Manual

54

OCBW

Description

Occupied bandwidth measurements are used to
measure the power of the occupied channel as a
percentage to the power of the channel.

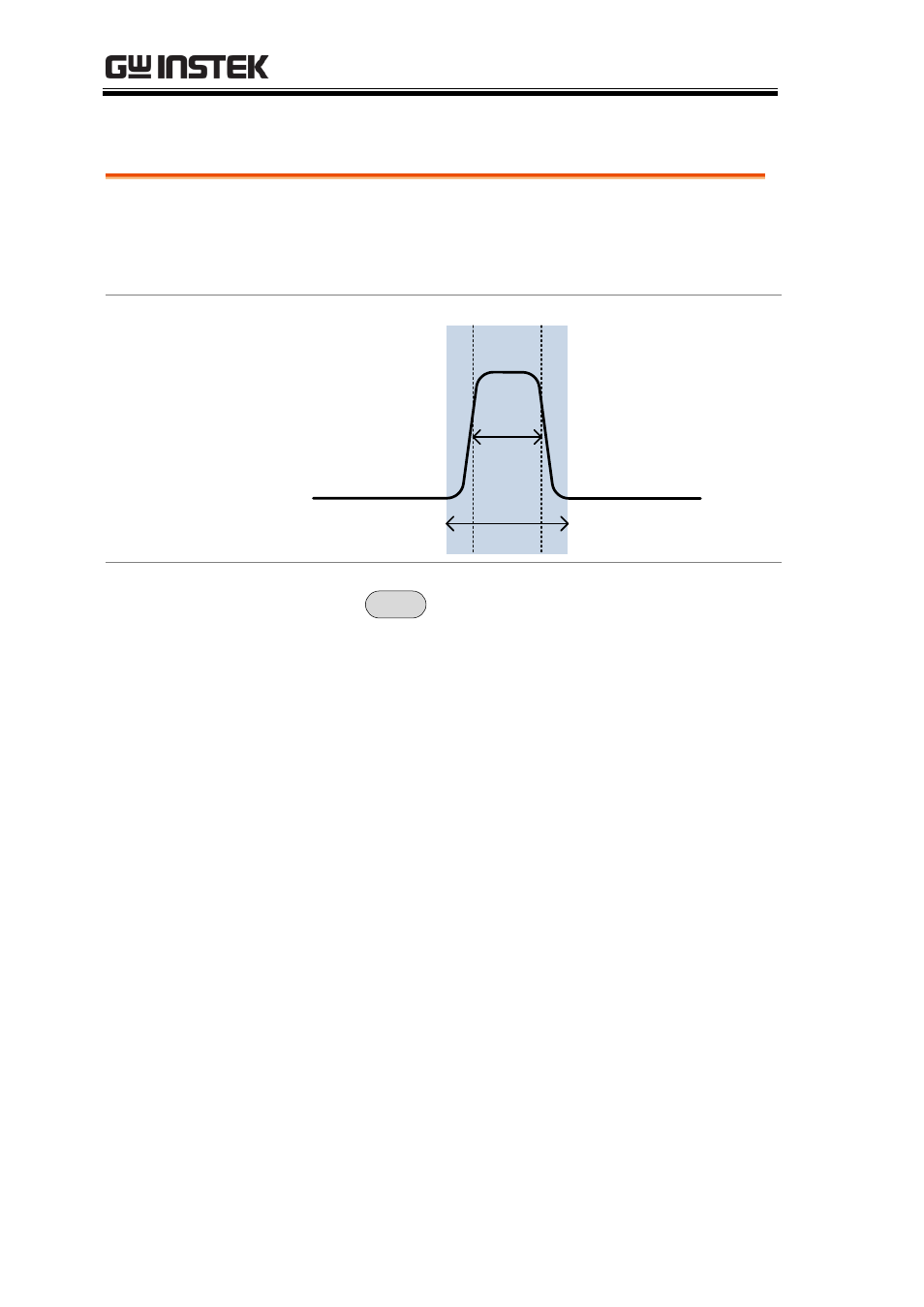

Example

CH BW

OCBW

Operation:
Setting up the
main channel

1. Press

Meas

> OCBW %[F3] and turn OCBW on.

Any other measurement mode will automatically be
disabled.

2. The display splits into two screens. The top

shows the channel bandwidth. The bottom
screen shows the OCBW measurement results
in real time.

Turn OCBW off to return back to the normal mode.
