GSP-730 User Manual
10
Appearance

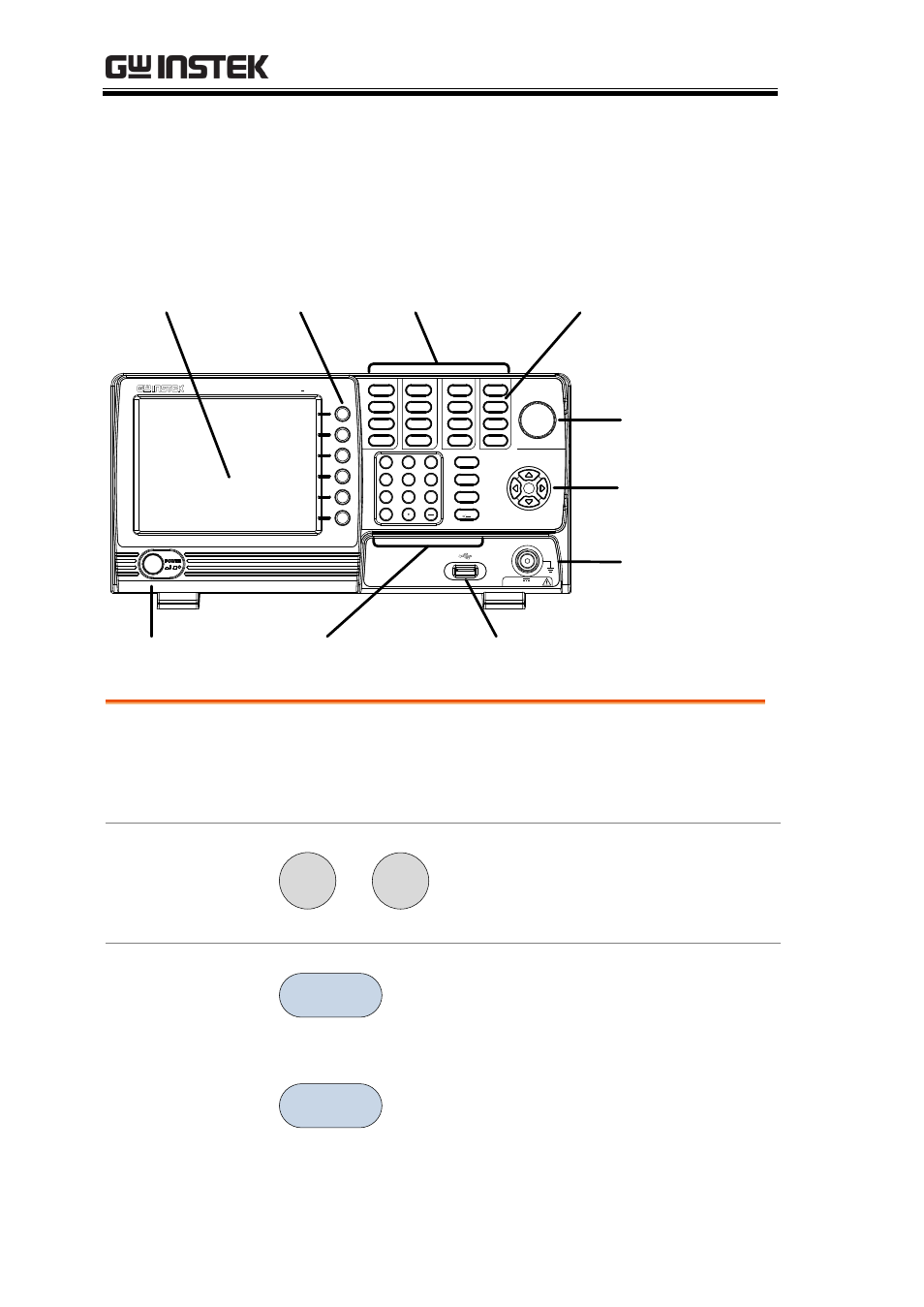

GSP-730 Front Panel
dB
Enter
F 1
F 2
F 3
F 4
F 5
F 6
0 BK SP
kHz /
Sec m
mSec
MHz /
GHz / Sec
1
4
7
2
5
8
3
6
9
Frequency
Span
Amplitude
Autoset
Marker
Peak
Limit Line
Meas
Search
BW
Trace
Display
Memory
Preset
Hardcopy
System
Hardcopy Setup
GSP-730
150 kHz 3 GHz
Spectrum Analyzer
RF INPUT 50
+30dBm MAX.
MAX. DC ±25V
Ω
LCD Display Function
Keys
Menu keys Hardcopy key
Arrow keys
RF Input
terminal
Keypad and unit
keys USB A port Power
button
Scroll wheel
LCD display 640 X 480 color LCD display. The display shows
the soft keys for the current function, frequency,
amplitude and marker information.
Function keys
F 1
~
F6
The F1 to F6 function keys directly
correspond to the soft keys on the
right-hand side of display.
Frequency
Frequency
Sets the center frequency, start
frequency, stop frequency and
step frequency.
Span
Span
Sets the span, with options for full
span, zero span and last span.
