<6 BASIC OPERATION> 6-23
IM 11Y01B02-01E-A 4th Edition September 11, 2012-00

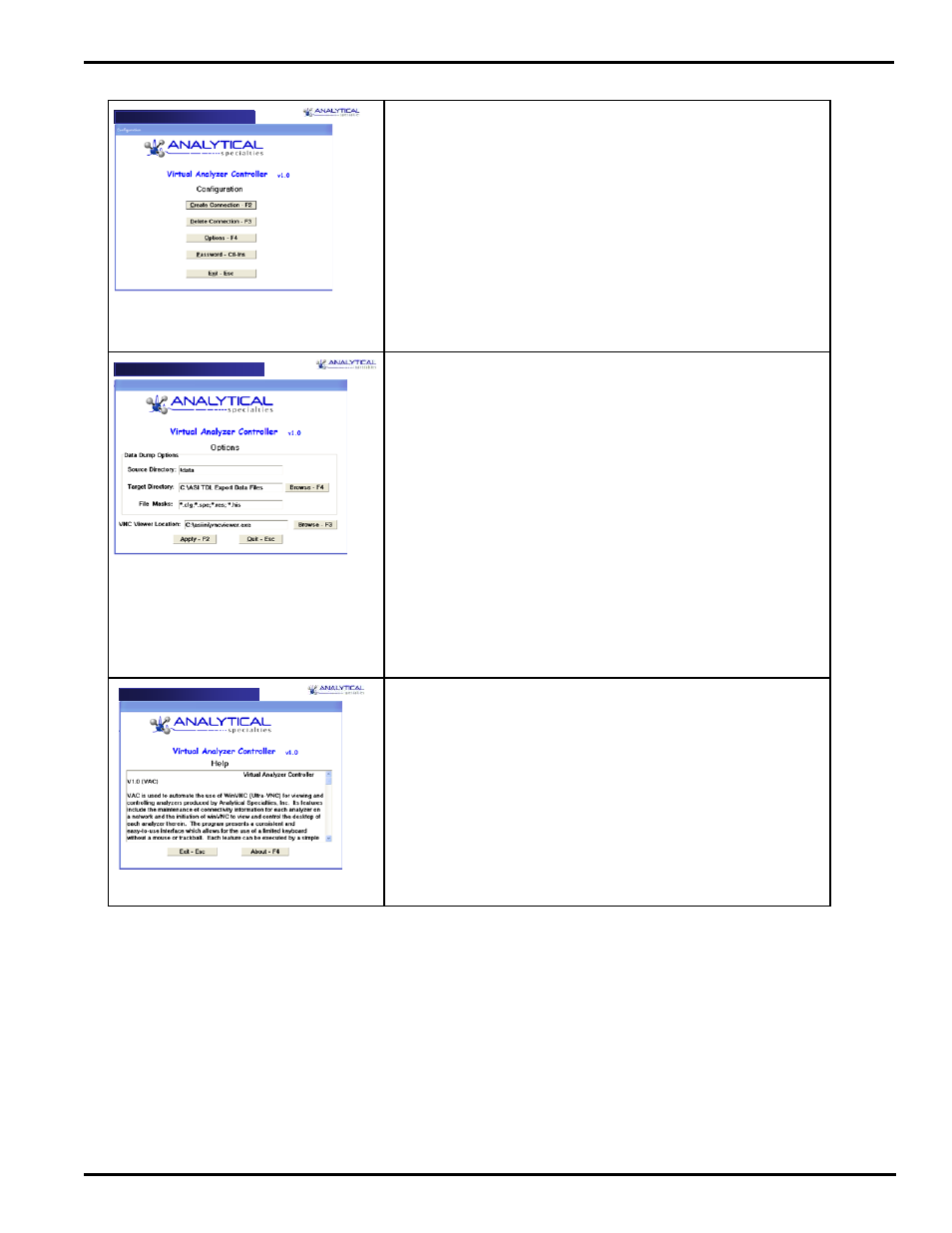

C onfiguration
After selecting “Configuration – F4” you will be allowed to
select the analyzer (with description and IP address) you wish
to configure.
You will be given the following menu choices:
Create Connection - F2: This will allow programming of Tag
Name and IP Address for future connections
Delete Connection - F3: This is to delete an existing
connection
Options - F4: (see next section)
F5 – Backlight Toggle On/Off
Password - Ctl-Ins: Allows changes to the access password
C onfiguration - Options
VAC Options (Configuration Menu):
Data Dump Options. This sets the directories to receive data
from (analyzer) and send data to (on system running VAC
software)
Source Directory: This is the analyzer data file folder; it should
not be changed without factory consultation.
Target Directory: This is the remote computer or RIU directory
to receive data files
File Masks: These are the extensions of the files to be
transferred; it should not be changed without factory
consultation.
VNC Viewer Location specifies the location of the software to
remotely control an analyzer; it should not be changed without
factory consultation.
APPLY-F2 must be selected to save changes
.
From the VAC Main Menu Ctrl-F1 will bring up the Help
Screen.
This will give at system text help describing the shortcut keys
and their function.
