Yokogawa Extractive Oxygen Gas Analyzer TDLS220 - Manual (Page 50)

<6 BASIC OPERATION> 6-20
IM 11Y01B02-01E-A 4th Edition September 11, 2012-00
6.5.2 Using Ultra-VNC Software

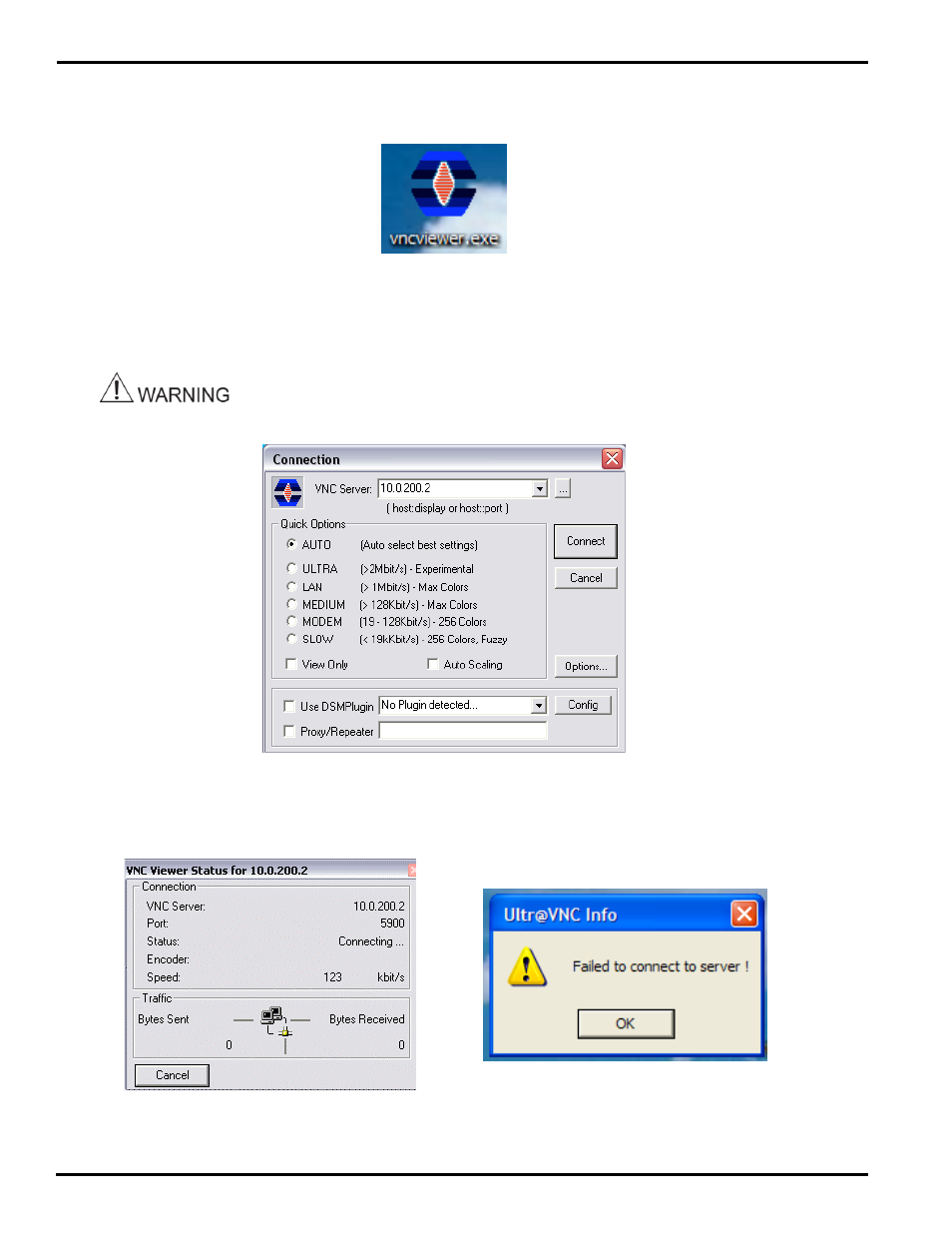

Start the Ultra-VNC software by double-clicking on the “vncviewer.exe” ICON (as shown below):
Within the VNC Server field, enter the correct IP address for the analyzer to which you are connecting
then click on “Connect” button. If a successful connection is established then use the default password
for entering the VNC connection screen is 1234 – see screen below that shows an example IP address
of 10.0.200.2 (TDLS220 analyzer Serial number 220-XX-1402-XX etc.):
DO NOT attempt to change of the “Quick Options” or any
other settings on this menu!
If the analyzer connection cannot be established (see error message below) then check the
external computer IP settings, connection wires/Cat5 cable and IP address. Make sure any
other LAN devices (and WiFi) are disabled to prevent conflicts.
