Page 32
IM 1E8B0-01E
5-3
5. BASIC OPERATING PROCEDURES
5.2.1 Flow Rate Data Display Mode
•
The flow rate data display mode indicates instantaneous flow and totalized flow
values.
The ADMAG CA can display 6 types of flow rate data.
•
These functions can be displayed by pressing the "d1" key on the flow converter.
•
For changing from setting mode to flow rate data display mode, press “SET” key
while pressing “SHIFT” key.
•
When a BT is used, call up the "D01 DISP SELECT" parameter to select functions.

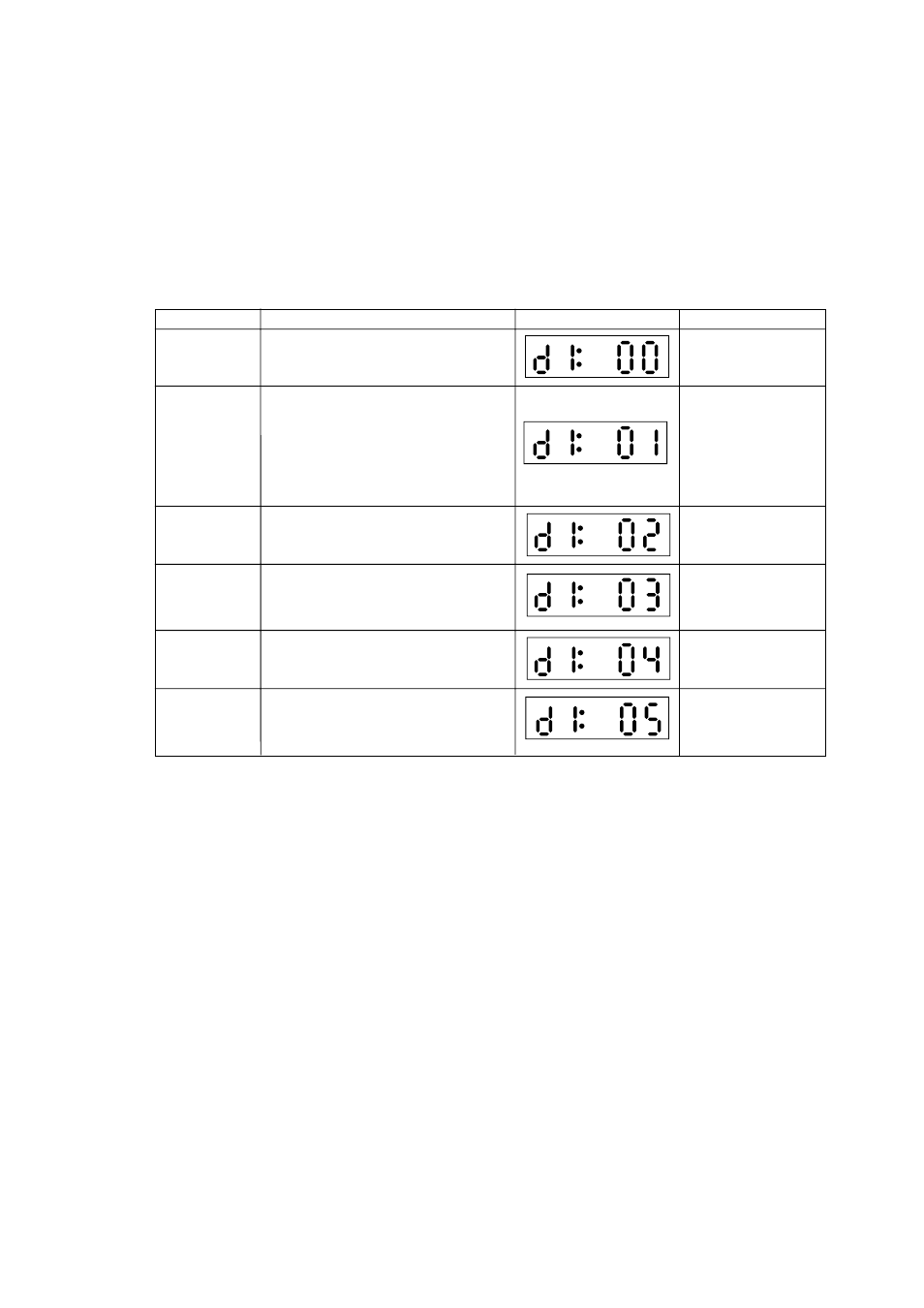

Display item
Content
ADMAG AE Setting
BT Setting
D01 : DISP SELECT
RATE(%)
D01 : DISP SELECT
RATE/ TTL
D01 : DISP SELECT
RATE
D01 : DISP SELECT
FOR.TOTAL
D01 : DISP SELECT
RATE(%)/TTL
D01 : DISP SELECT
RATE/RATE(%)
Forward flow rate
%
Instantaneous flow rate is displayed within a
range of -8.0 to 108 for the span.
Actual forward
flow rate
The actual meter rate of instantaneous flow rate
is displayed.(See note 1.)
The decimal place is the same as foe the span setting.
However, since a decimal point set at the most
sifnigficant bit cannot be displayed.
It is automatically shifted 1 igit to the right.BT setting
of f0.0001 of displayed as 0.000 on the ADMAG.)
Flow rate
totalization values
Display totalized flow rate
(Alternate
displayof flow rate
% and flow rate
totalization value)
The Display switches between display of
instaneous flow rates (%) and totalized flow
rates every 4 second interval.
(Alternate
displayof actual
flow rate
totalization value)
The Display switches between display of
instaneous flow rates (actual values) and
totalized flow rates every 4 second interval.
(Alternate display
of actual flow rate
and flow rate %)
The Display switches between display of
instantaneous flowrate (%) and instantaneous
flow rates (actual values) every 4 second
interval.
Note 1 :
The LCD can display the following combination of units (by selecting a parameter)
Units other than those shown below can be displayed by attaching the provided unit labels .
l (liters) /h, l (liters) /m, m
3
/h, m
3
/m, gal/h, gal/m
