Watlow EZ-ZONE ® RMS Module • 25 • Chapter 2 Install and Wire
Warning:
ç
Use National Electric (NEC) or other
country-specific standard wiring and
safety practices when wiring and
connecting this controller to a power
source and to electrical sensors or pe-
ripheral devices. Failure to do so may
result in damage to equipment and
property, and/or injury or loss of life.
Note:
Maximum wire size termination and
torque rating:
• 0.0507 to 3.30 mm2 (30 to 12 AWG)
single-wire termination or two 1.31
mm2 (16 AWG)
• 0.8 Nm (7.0 in-lb.) torque
Note:
Adjacent terminals may be labeled
differently, depending on the model
number.
Note:
To prevent damage to the controller,
do not connect wires to unused ter-
minals.
Note:
Maintain electrical isolation between
digital input-outputs, switched dc/open
collector outputs and process outputs
to prevent ground loops.
Warning:
ç
Explosion Hazard – Substitution of
component may impair suitability for
CLASS I, DIVISION 2.
Warning:
ç
Explosion Hazard - Do not disconnect
while the circuit is live or unless the
area is known to be free of ignitable
concentrations of flammable sub-
stances.
Suppressor Note:
Switching pilot duty inductive loads
(relay coils, solenoids, etc .) with the
mechanical relay, solid-state relay or
open collector output options requires
use of an R .C . suppressor for AC load or
a diode for a DC load .

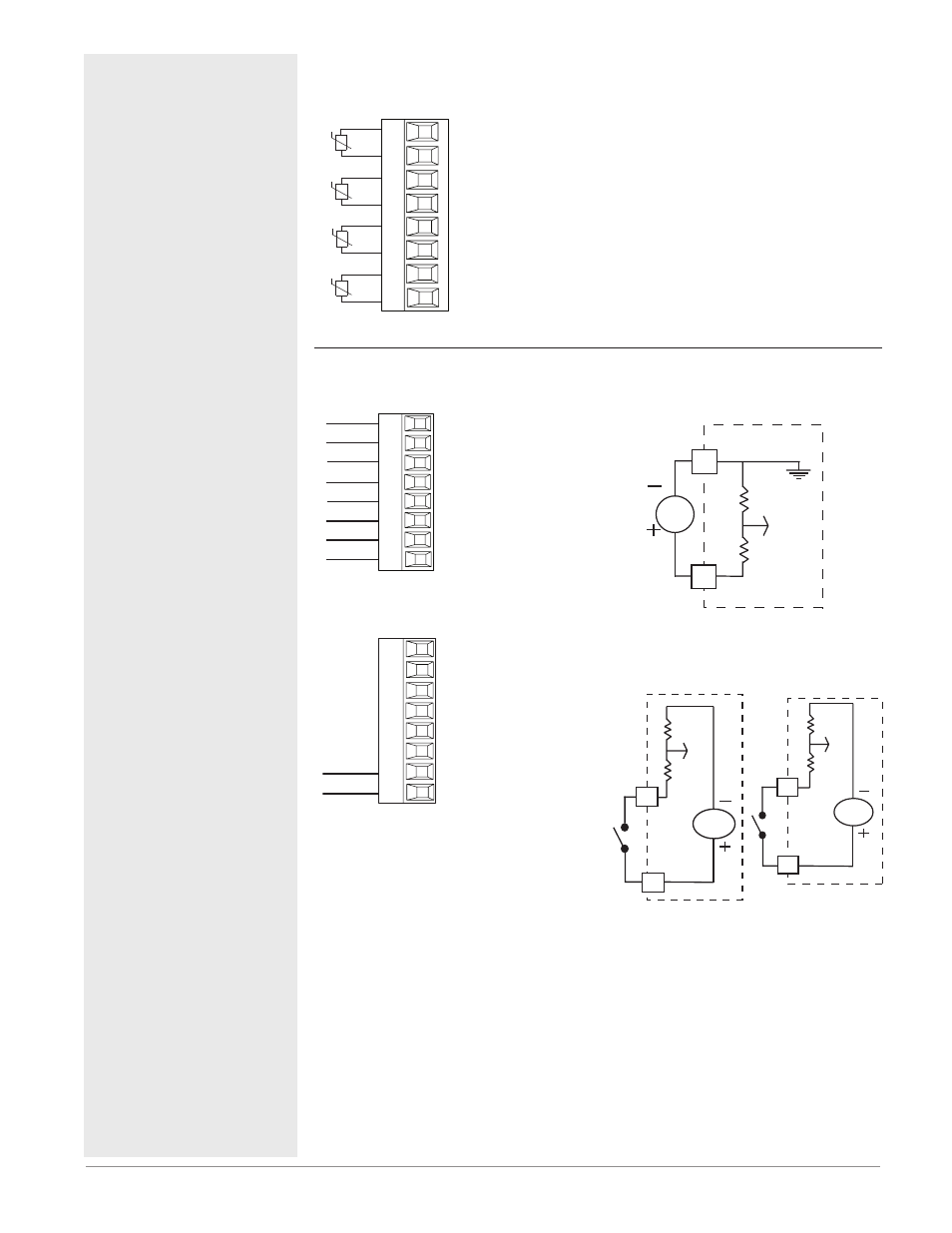

Inputs 1 through 16 Thermistor
RMS Part # Digits 5, 6, 7, 8
Thermistor
S_
R_
S_
R_
S_
R_
S_
R_
Slot A, B, D, E • >20 MΩ input impedance
Input 1 - 4 (top to bottom): RMSx-(P)xxx-
xxxx
Input 5 - 8 (top to bottom): RMSx-x(P)xx-
xxxx
Input 9 - 12 (top to bottom): RMSx-xx(P)x-
xxxx
Input 13 - 16 (top to bottom): RMSx-xxx(P)-
xxxx
Digital Inputs 1 through 12
RMS Part # Digit 7, 8 is C and or B Respectively
Common
DC Input
B_
D_
D_
D_
D_
D_
D_
Z_
Slot D, E
Supply
DC Input
DC Input
DC Input
DC Input
DC Input
Internal
Common
DC Input
B9
D9
Slot E
Digital Input Event
Conditions
• Voltage
- Input inactive when <
2V
- Input active when >
3V
• Dry Contact
- Input inactive when >
100KΩ
- Input active when <
50Ω
• Six user configurable
digital inputs/outputs
per slot
- Slot D DI 1 - 6
RMSx-xx(C) xx-xxxx
- Slot E DI 7 - 12
RMSx-xxx(C)-xxxx
- Slot E DI 9
RMSx-xxx(B)-xxxx
Note:
For part number RMSx-
xxx(B)-xxxx connection
is made between pins
B9 and D9 when con-
figured as a dry contact
(Digital Input 9 Slot E).
Voltage Input
common
Vdc
B
_
D
_
Dry Contact
Slot D
24 Vdc
_
Z
_
D
Slot E
24 Vdc
_
D
_
B
RMSx-xxx(B)-xxxx
RMSx-xxx(B)-xxxx
RMSx-xxx(C)-xxxx
